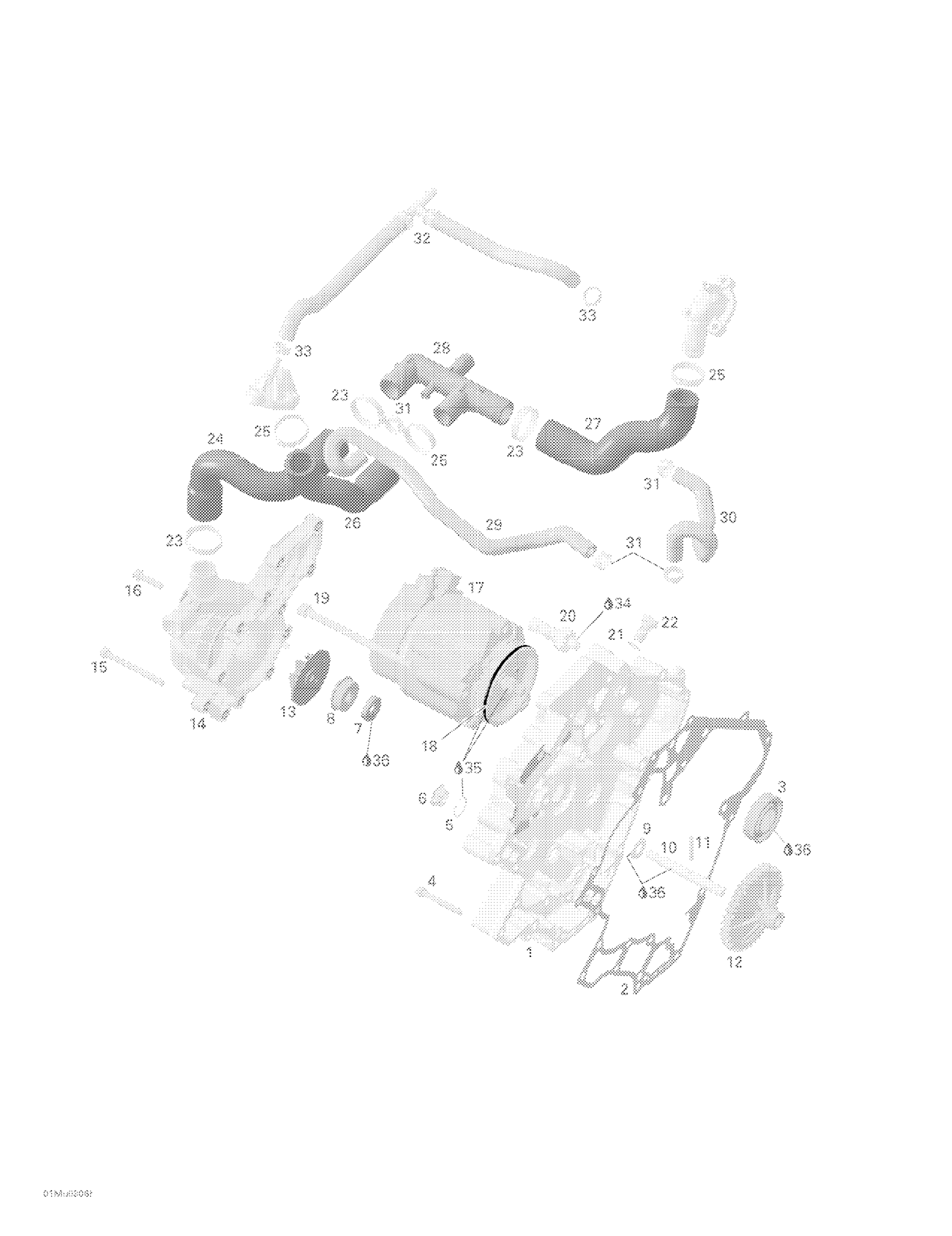

Ski-Doo Grand Touring V-1000, 2003 01- Water Pump, Alternator, Ignition Cover Diagram

#

Description
Price

1

Ignition Cover

420811661

Unavailable

2

GASKET - Call your local BRP dealership

420950590

Unavailable

3

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

4

Torx Flange Screw M6 X 45

420440324

$0.98

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

Oil Seal

420650315

$11.65

8

Rotary Seal

420650371

$43.49

9

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

10

Waterpump Shaft

420837480

Unavailable

11

Needle Pin

420232431

$4.39

12

WATERPUMP GEAR, 41 TEETH - Call your local BRP dealership

420834460

Unavailable

13

Impeller

420222501

$21.99

14

WATERPUMP HOUSING - Call your local BRP dealership

420811605

Unavailable

15

Hex. Flange Screw M6 X 65

420440602

$6.39

16

Torx Flange Screw M6 X 25

420440234

$3.06

17

ALTERNATOR, 40 AMPERES - Call your local BRP dealership

420296460

Unavailable

18

O-RING - Call your local BRP dealership

420850430

Unavailable

19

HEX. SCREW M8 X 119 - Call your local BRP dealership

420941651

Unavailable

20

Oil Pressure Switch

420856537

$45.99

21

Oil Seal

420230150

$2.85

22

Banjo Bolt M10 X 19

420940874

$14.83

23

CLAMP - Call your local BRP dealership

420853173

Unavailable

24

MOLDED HOSE - Call your local BRP dealership

420922180

Unavailable

25

Clamp

420853163

$10.33

26

MOLDED HOSE - Call your local BRP dealership

420922745

Unavailable

27

MOLDED HOSE - Call your local BRP dealership

420922740

Unavailable

28

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

29

MOLDED HOSE - Call your local BRP dealership

420822090

Unavailable

30

MOLDED HOSE - Call your local BRP dealership

420822092

Unavailable

31

Oetiker Clamp

293650125

$3.29

32

Molded Hose Ass’y

420660880

Unavailable

33

Oetiker Clamp

293650125

$3.29

34

Loctite 243, 10 ml

293800060

$21.49

35

Grease, Super Lube

293550030

$28.99

36

Synth Oil 4T 12x1

293600054

Unavailable
