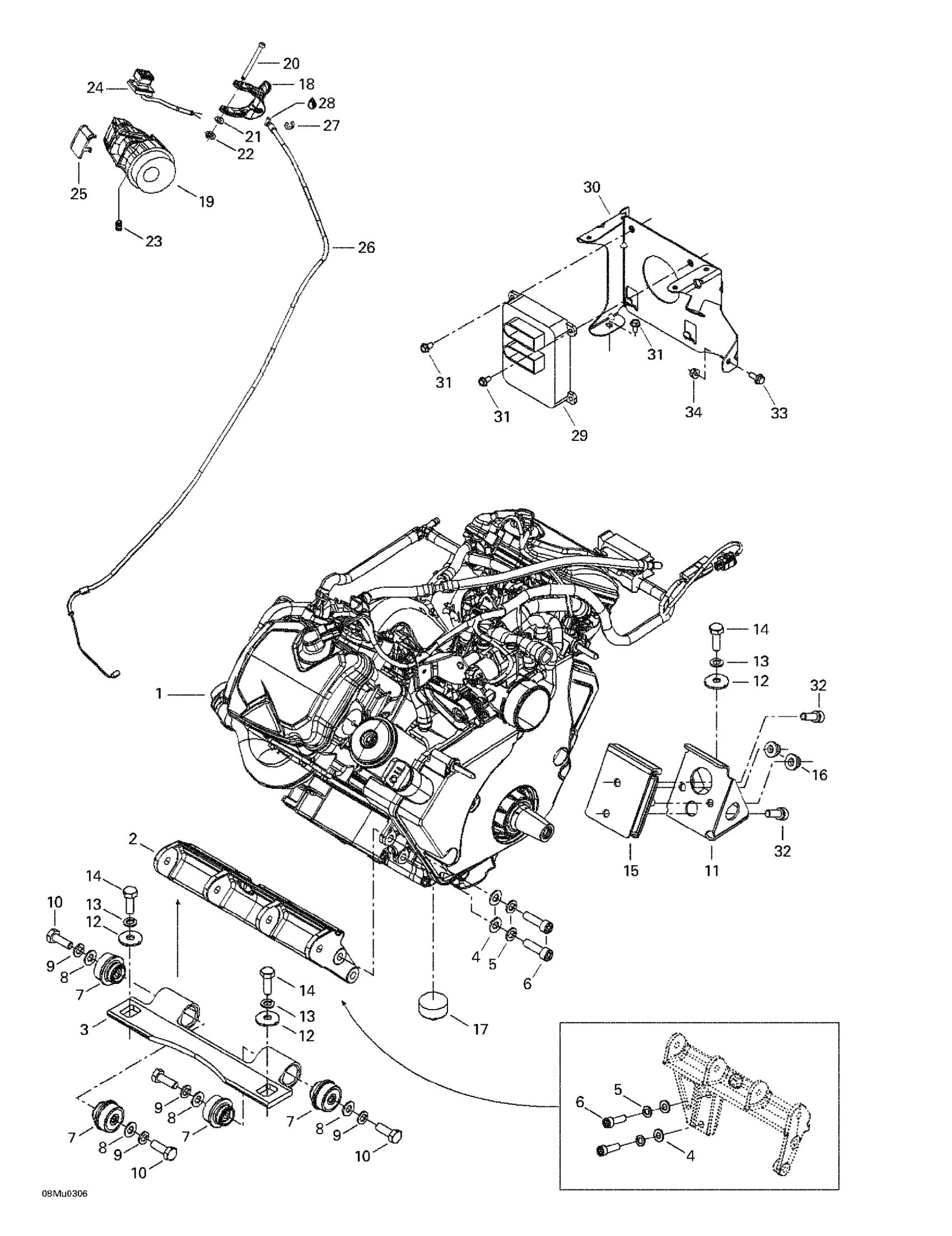

Ski-Doo Grand Touring V-1000, 2003 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine

400101106

Unavailable

2

FRONT ENGINE MOUNT - Call your local BRP dealership

512059422

Unavailable

3

FRONT ENGINE SUPPORT - Call your local BRP dealership

512059425

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Socket Screw M10 X 35

205003544

$1.69

7

Rubber Mount

512059691

$47.99

8

Flat Washer 10 mm

234001410

$1.26

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Screw M10 X 30

207103044

$1.48

11

REAR ENGINE SUPPORT - Call your local BRP dealership

512059315

Unavailable

12

Lock Washer

512056700

$3.17

13

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

14

Hex. Screw M10 X 30

207103044

$1.48

15

Rubber Mount

512059316

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.58

17

STOPPER - Call your local BRP dealership

512059710

Unavailable

18

Handle Ass’Y

512059624

$93.99

19

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

20

Lever Pin

414438700

$11.64

21

Flat Washer M5, Stainless

234051600

$0.77

22

Circlip | Model-RS

414439000

$4.23

23

Socket Set Screw M8 X 10

414440800

$4.12

24

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

25

Switch Cover

572100901

$14.83

26

THROTTLE CABLE - Call your local BRP dealership

512059349

Unavailable

27

Circlip

414274500

$0.90

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Electronic Module

420664620

Unavailable

30

Electronic Module Support

518323189

Unavailable

31

Hex. Flange Screw M6 X 12

210261250

$1.90

32

Socket Head Screw M10 X 25

205002544

$1.48

33

Hex. Flange Screw M6 X 16

207661644

$0.74

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
