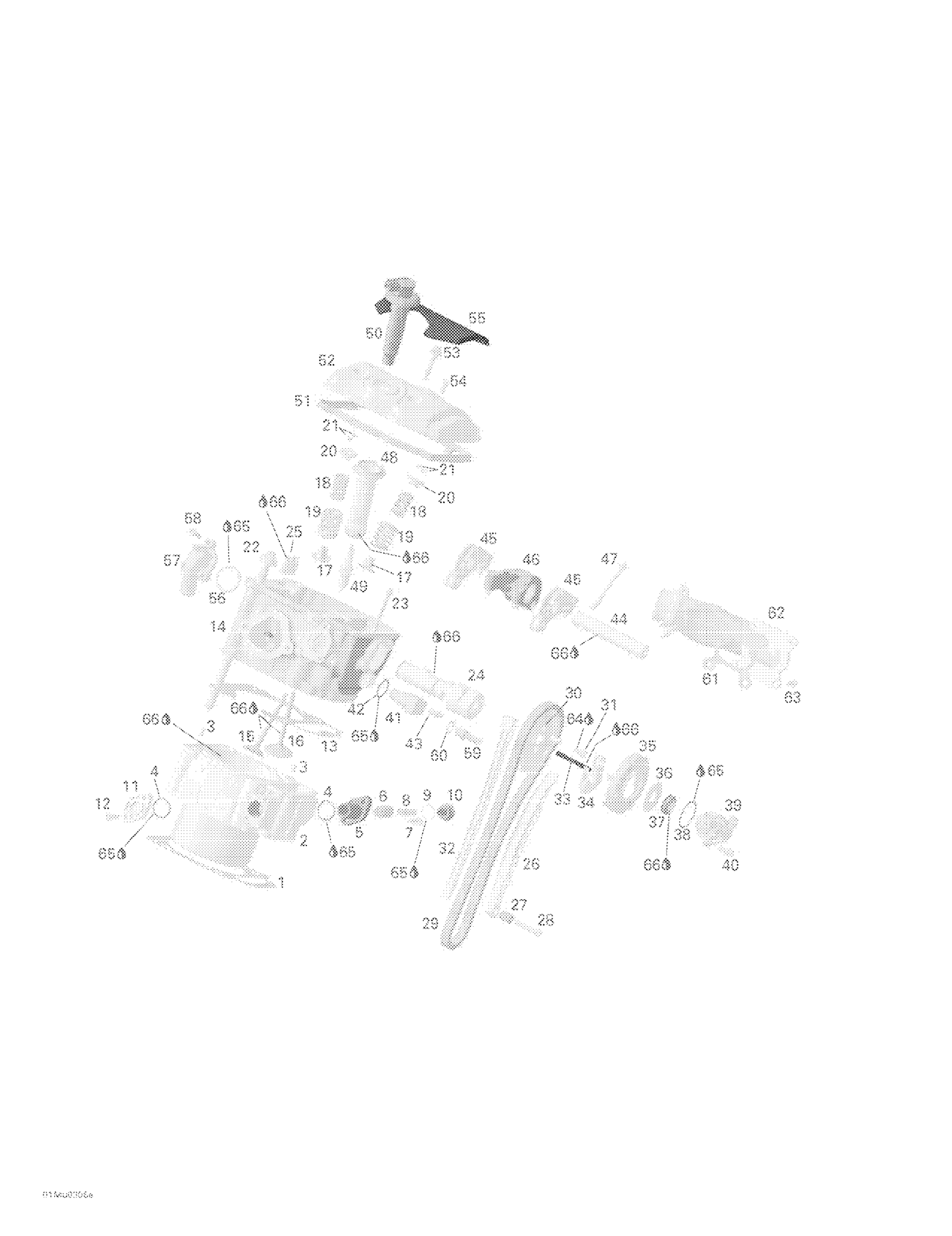

Ski-Doo Grand Touring V-1000, 2003 Cylinder, Rear Side Cylinder Head Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER ASS?Y - Call your local BRP dealership | Includes 2 to 3

420923948

Unavailable

3

Drive Pin 5 X 10

420929650

$1.54

4

O-Ring

420430373

$3.01

5

Chain Tensioner Housing

420236510

$10.76

6

Chain Tensioner Plunger

420236521

$14.04

7

Torx Flange Screw M6 X 25

420440234

$2.91

8

Spring

420238120

$7.01

9

O-Ring

420250890

$2.87

10

Plug Screw

420641150

$7.01

11

Cover

420610450

Unavailable

12

Torx Flange Screw M6 X 25

420440234

$2.91

13

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

14

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

15

Exhaust Valve 31 mm

420254027

$84.30

16

Intake Valve 38MM

420253163

$38.78

17

Valve Steam Seal

420630202

$6.91

18

Valve Spring Inside

420838280

$12.15

19

Valve Spring

420238180

$14.90

20

Valve Spring Retainer

420254283

$8.09

21

Valve Cotter

420253645

$7.01

22

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

23

Torx Flange Screw M6 X 105

420440612

$7.01

24

Camshaft, Rear

420837456

Unavailable

25

Camshaft Guide

420851694

$30.57

26

Chain Tension Guide

420236541

$14.90

27

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

28

Torx Flange Screw M6 X 35

420440274

$0.96

29

Camshaft Chain

420297957

$94.75

30

Timing Gear, 38 Teeth

420254309

$66.39

31

Allen Screw M6 X 12

420840032

$4.15

32

Chain Guide

420236501

$13.18

33

Deko Shaft

420220790

Unavailable

34

Centrifugal Weight Ass’Y

420231064

Unavailable

35

Cover

420660032

Unavailable

36

Thrust Washer

420627492

Unavailable

37

V-Ring 20S FPM Blow By Valve

420630125

$10.76

38

O-Ring

420950870

$5.06

39

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

40

Torx Flange Screw M6 X 16

420440162

$3.01

41

Camshaft Position Sensor Ass'y

420664046

$81.31

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Torx Flange Screw M6 X 16

420440162

$3.01

44

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

45

Rocker Arm, Exhaust

420254329

$129.07

46

Rocker Arm, Inner

420254316

$170.12

47

Torx Screw M8 X 72

420641080

$5.04

48

Spark Plug Pipe

420851754

$26.09

49

Spark Plug, NGK DCP-R8E

715900637

$6.49

50

Ignition Coil Kit This part replaces 420664020.

296000307

$99.22

51

Sealing Ring

420630071

$17.13

52

Valve Cover

420610185

Unavailable

53

Hex Screw M6 X 30

420440568

$8.15

54

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

55

Valve Cover

420660201

Unavailable

56

O-Ring

420950890

$4.15

57

Connecting Cover

420811700

Unavailable

58

Torx Flange Screw M6 X 25

420440234

$2.91

59

Hose Nipple

420440960

Unavailable

60

Copper Washer

420250640

$0.93

61

GASKET - Call your local BRP dealership

420950680

Unavailable

62

Exhaust Manifold Ass’Y

420973780

Unavailable

63

Torx Flange Screw M6 X 16

420440162

$3.01

64

Loctite 243, 10 ml

293800060

$21.49

65

Grease, Super Lube

293550030

$28.33

66

Synth Oil 4T 12x1

293600054

Unavailable
