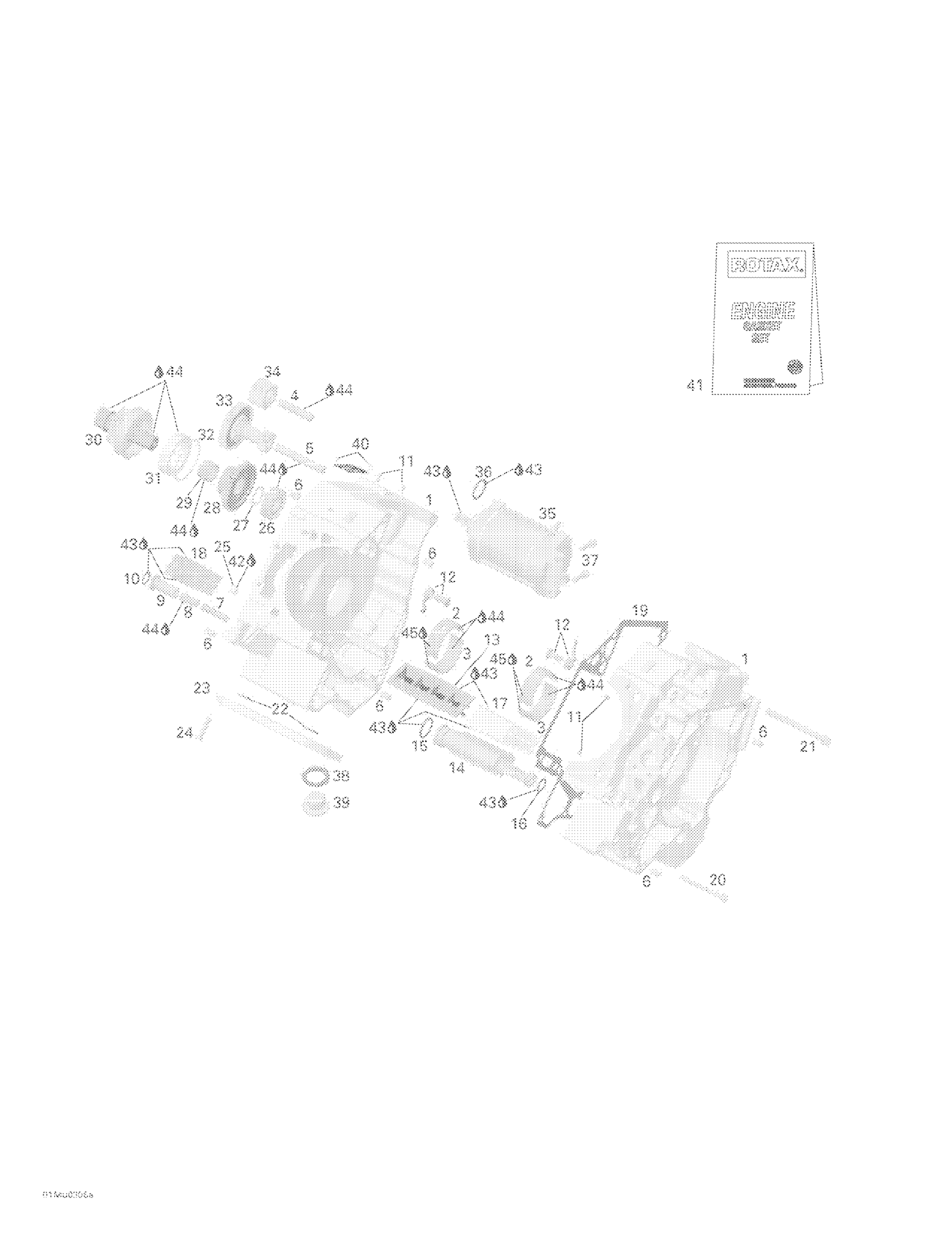

Ski-Doo Grand Touring V-1000, 2003 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass’Y | Includes 1 - 11.

420888881

Unavailable

2

BEARING SLEEVE - Call your local BRP dealership

420933492

Unavailable

3

Bushing_Half - Call your local BRP dealership

420933495

Unavailable

4

Location Pin 10 M6x50

420229302

$3.17

5

PIN - Call your local BRP dealership

420229410

Unavailable

6

Center Pin 8 X 12

420632010

$4.01

7

Spring

420239445

$14.22

8

Pressure Regulating Piston

420256510

$28.49

9

VALVE SEAT - Call your local BRP dealership

420956780

Unavailable

10

O-RING - Call your local BRP dealership

420230880

Unavailable

11

Drive Pin 5 X 10

420929650

$1.68

12

OIL NOZZLE ASS?Y - Call your local BRP dealership

420956820

Unavailable

13

VALVE HOUSINS ASS?Y - Call your local BRP dealership

420924735

Unavailable

14

OIL SIEVE ASS?Y - Call your local BRP dealership | Includes 14 to 16

420956790

Unavailable

15

O-RING - Call your local BRP dealership

420931630

Unavailable

16

O-Ring

293300024

$8.57

17

Oil Sieve

420856070

Unavailable

18

OIL SIEVE - Call your local BRP dealership

420856072

Unavailable

19

GASKET - Call your local BRP dealership

420950600

Unavailable

20

Hex. Flange Screw M6 X 65

420440602

$6.39

21

Torx Flange Screw M8 X 90

420440412

$7.41

22

O-Ring

420430373

$3.17

23

COVER - Call your local BRP dealership

420811770

Unavailable

24

Torx Flange Screw M6 X 25

420440234

$3.06

25

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

26

BALL BEARING - Call your local BRP dealership

420232192

Unavailable

27

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

28

CAM CLUTCH DRIVE GEAR, 32 TEETH - Call your local BRP dealership

420834410

Unavailable

29

Bearing_Needle - Call your local BRP dealership

420232745

Unavailable

30

Generator Gear Ass’Y | Includes 30 - 32.

420834405

Unavailable

31

SPRAG CLUTCH - Call your local BRP dealership

420259492

Unavailable

32

SNAP RING - Call your local BRP dealership

420845590

Unavailable

33

DOUBLE GEAR, 61/11 TEETH - Call your local BRP dealership

420834420

Unavailable

34

INTERMEDIATE GEAR, 33 TEETH - Call your local BRP dealership

420834430

Unavailable

35

ELECTRIC STARTER ASS?Y - Call your local BRP dealership

420296480

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Torx Flange Screw M6 X 25

420440234

$3.06

38

GASKET RING, PLUG SCREW - Call your local BRP dealership

420950620

Unavailable

39

Plug Screw

420641090

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Gasket Set Engine

420889980

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Grease, Super Lube

293550030

$28.99

44

Synth Oil 4T 12x1

293600054

Unavailable

45

Petamo Grease, GHY133N, 400 g

420899271

$67.99
