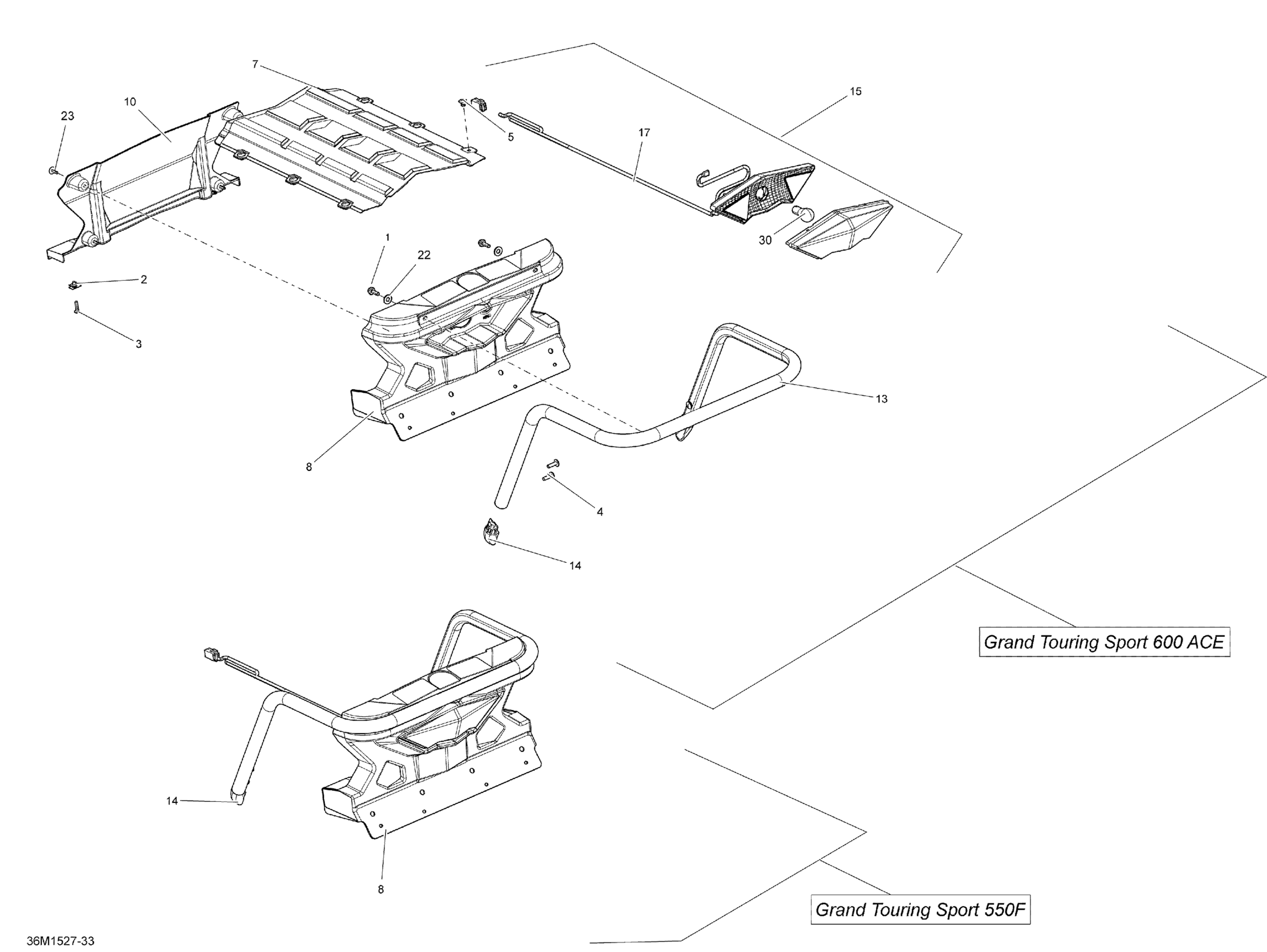

Ski-Doo Grand Touring Sport 600ACE XS137, 2015 09- Luggage Rack _36M1533 Diagram

Hex. Flange Screw M6 X 20

207662044

$2.00

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

Pop Rivet 3/16"

293150103

$0.55

Tie Wrap 142 mm

293750002

$1.25

Radiator Cover, 137'' | SPORT

511000590

$34.99

Rear Light Support

511000625

$45.99

Rear Cover Support | Not Shown

511000701

$37.99

Luggage Rack

511000707

$111.99

Black Cap

520000899

$16.49

Rear Light Ass'y

520000679

$105.99

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

Stopper Rubber

705014429

$5.95

Flat Washer 6 mm

234062410

$0.77

Screw M4 X 16

250000725

$3.49

Bulb

520000758

$9.10
