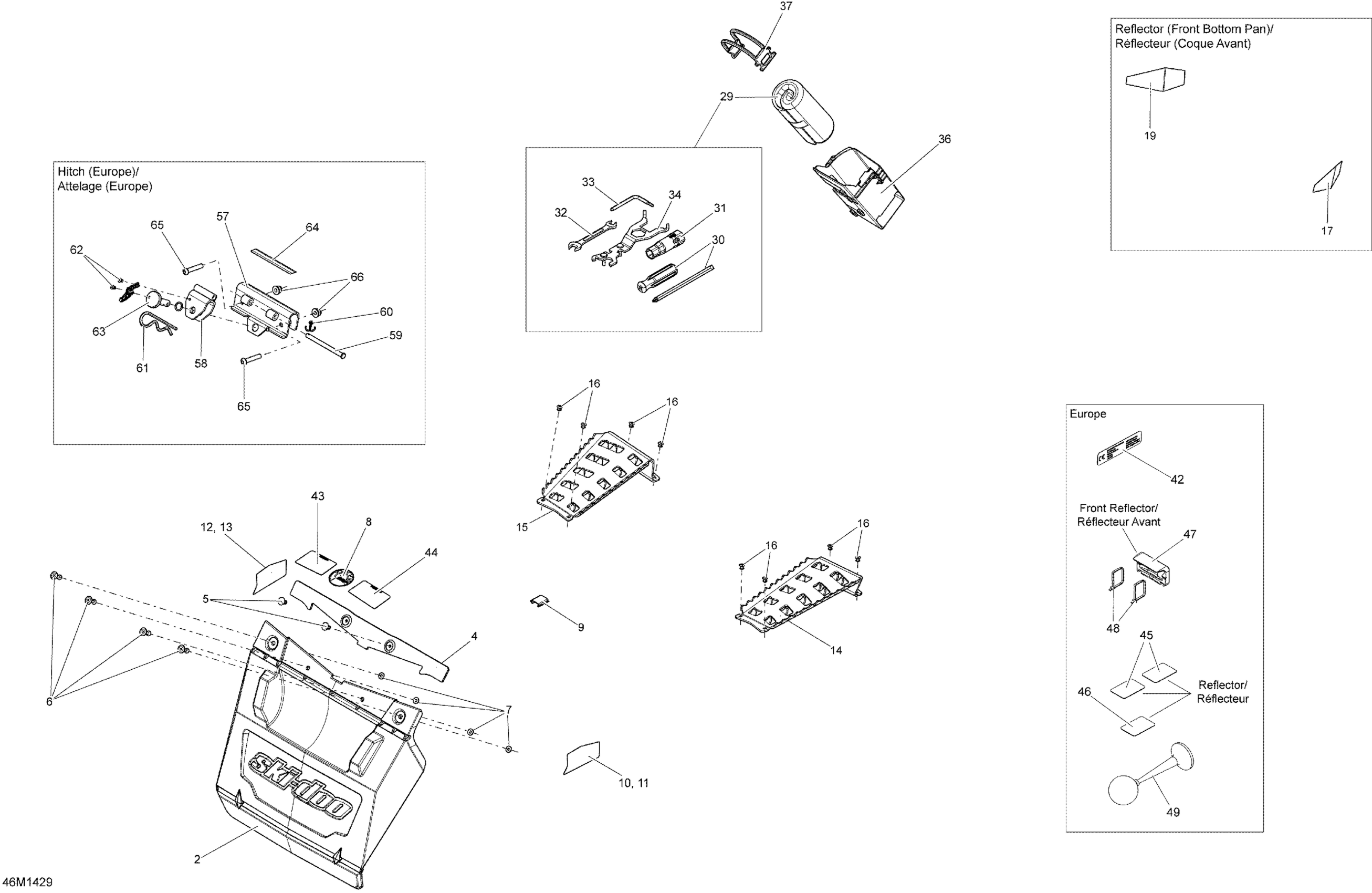

Ski-Doo GRAND TOURING SPORT 600ACE XP, 2014 Utilities Diagram

#

Description
Price

2

Snow Guard

520000659

$86.54

4

ESTHETIC PLATE - Call your local BRP dealership

520000953

Unavailable

5

Pop Rivet 3/16”

293150108

$1.19

6

Pop Rivet 3/16”

293150108

$1.19

7

Washer

517124300

$0.18

8

BRP Logo 48 mm

219903947

$14.43

9

Radiator Trim

520000829

$20.12

10

Red, RH Rear Reflector

520000881

$12.99

11

Yellow, RH Rear Reflector

520000883

$12.99

12

Red, LH Rear Reflector

520000880

$12.99

13

Yellow, LH Rear Reflector

520000882

$12.99

14

RH Footrest

520000887

$76.09

15

LH Footrest

520000888

$76.09

16

Pop Rivet 3/16"

390402200

$0.30

17

Yellow, RH Front Reflector

520000718

$12.15

19

Yellow, LH Front Reflector

520000719

$12.15

29

Tool Kit | Includes 16 To 22

529000066

$46.99

30

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

31

Set Key, 16/21 mm

529000046

$14.49

32

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

33

Spacing Tool

520001142

$10.99

34

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

36

Tool Kit Rack

520000894

$14.99

37

Latch

520000528

$6.40

42

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

43

LH Warning Decal, Safety

516006431

Unavailable

44

RH Warning Decal, Safety

516005587

Unavailable

45

Amber, Reflector

520000271

$18.63

46

White, Reflector

415037900

$18.63

47

Deep Black, Reflector Support

520000871

$5.13

48

Tie Rap 371 mm

293750018

$0.52

49

Horn

549011291

$34.30

57

Support

511000554

$17.88

58

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

59

Lock Pin

511001451

$8.31

60

Cotter Pin

371800200

$0.49

61

Hair Pin

114045200

$10.37

62

Pop Rivet 5/32” | Model Europe

390404300

$0.30

63

Pin

511000555

$17.88

64

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

65

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

66

Hex. Flange Elastic Nut M8

233281414

$1.31
