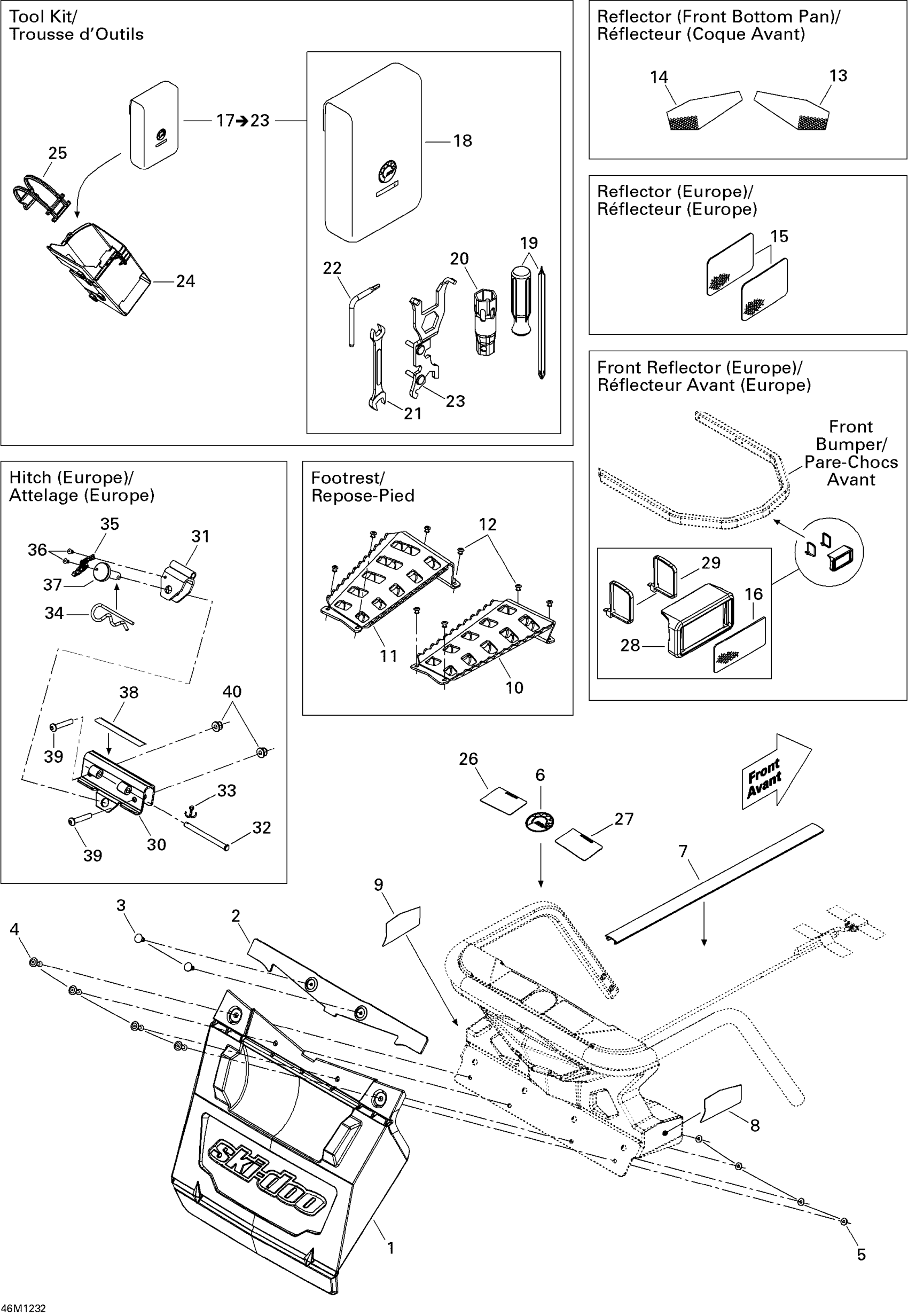

Ski-Doo Grand Touring Sport 600ACE LFF, 2012 Utilities Diagram

#

Description
Price

1

Snow Guard

520000659

$86.54

2

ESTHETIC PLATE - Call your local BRP dealership

520000953

Unavailable

3

Pop Rivet 3/16”

293150108

$1.19

4

Pop Rivet 3/16”

293150108

$1.19

5

Washer

517124300

$0.18

6

BRP Logo 48 mm

219903305

$16.39

7

Radiator Trim

520000829

$20.12

8

Red, RH Rear Reflector

520000881

$12.99

8

Yellow, RH Rear Reflector

520000883

$12.99

9

Red, LH Rear Reflector

520000880

$12.99

9

Yellow, LH Rear Reflector

520000882

$12.99

10

RH Footrest

520000887

$76.09

11

LH Footrest

520000888

$76.09

12

Pop Rivet 3/16"

390402200

$0.30

13

Yellow, RH Front Reflector

520000718

$12.15

14

Yellow, LH Front Reflector

520000719

$12.15

15

Amber, Reflector

520000271

$18.63

16

White, Reflector

415037900

$18.63

17

Tool Kit | Includes 16 To 22

529000066

$46.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

22

Spacing Tool

520001142

$10.99

23

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

24

Tool Kit Rack

520000894

$14.99

25

Latch

520000528

$6.40

26

LH WARNING DECAL, SECURITY - Call your local BRP dealership

516005043

Unavailable

27

RH Warning Decal, Security

516005044

Unavailable

28

Deep Black, Reflector Support

520000871

$5.13

29

Tie Rap 371 mm

293750018

$0.52

30

Support

511000554

$17.88

31

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

32

Lock Pin

511001451

$8.31

33

Cotter Pin

371800200

$0.49

34

Hair Pin

114045200

$10.37

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Pop Rivet 5/32” | Model Europe

390404300

$0.30

37

Pin

511000555

$17.88

38

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

39

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

40

Hex. Flange Elastic Nut M8

233281414

$1.31
