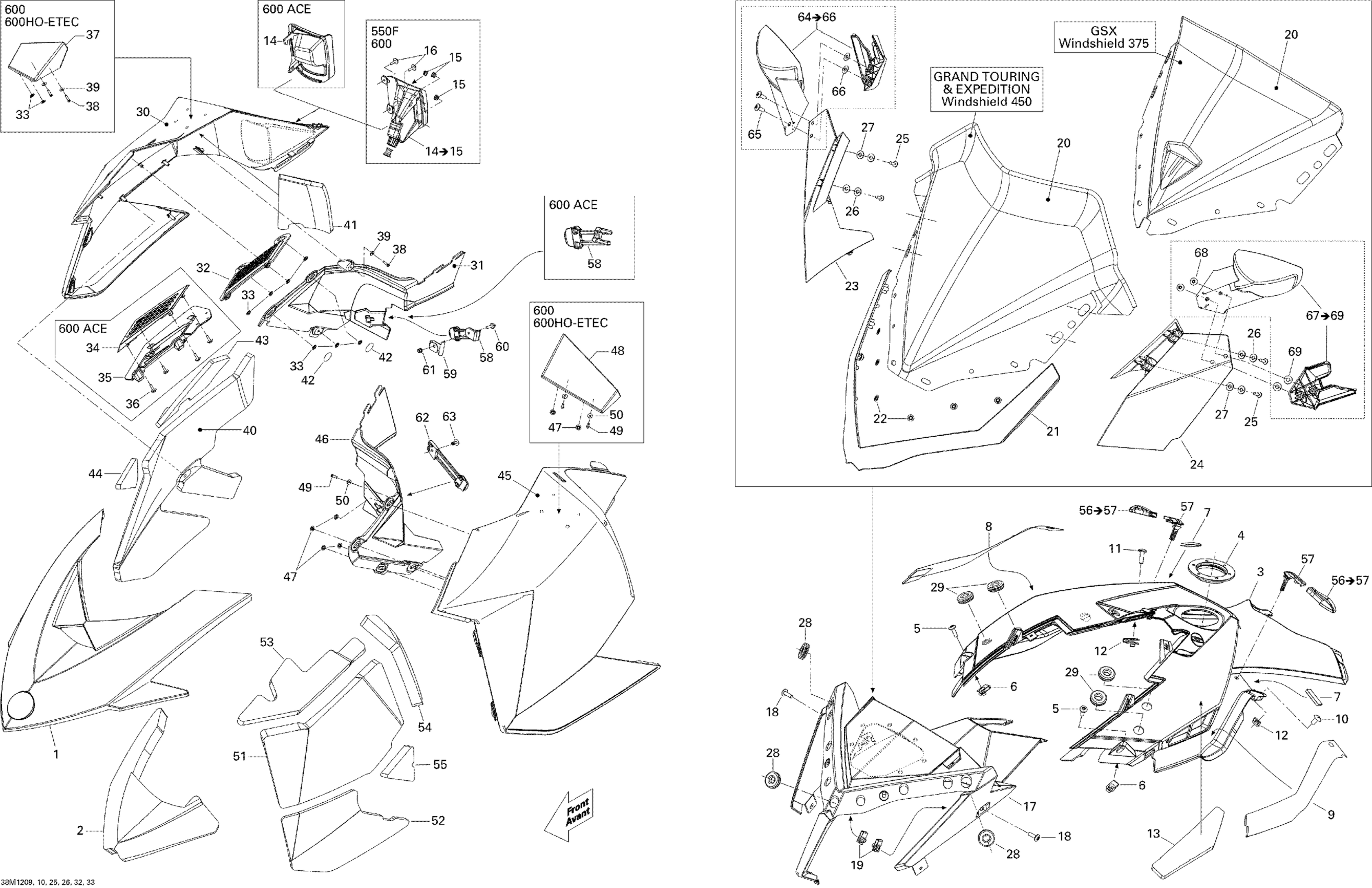

Ski-Doo Grand Touring Sport 600ACE LFF, 2012 09- Hood, Windshield And Console Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$214.99

2

Hood Foam

517304913

$22.49

3

CONSOLE B-160 - Call your local BRP dealership

517303924

Unavailable

4

Console Nut

517304518

$15.29

5

Torx Screw M6 X 20

250000722

$1.68

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Torx Truss Screw M6 X 16

250000721

$1.69

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

Not Available As Spare Parts

XXX

Unavailable

14

Black, RH Console

517304500

$28.99

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Gauge Support

517304575

$70.99

18

Torx Screw M6 X 20

250000722

$1.68

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Windshield 450 | Bright White

517304766

$164.99

21

Windshield Support

517303607

$34.99

22

Push Nut

732610072

$2.19

23

RH Air Deflector

517303791

$43.99

24

LH Air Deflector

517303792

$43.99

25

Torx Screw K50 X 16

250000720

$1.69

26

Washer M5

250200025

$0.74

27

Rubber Washer 5 mm

250200024

$2.19

28

Grommet

517303756

$4.09

29

Grommet

517303756

$4.09

30

Deep Black, RH Panel

517304029

$211.99

31

Deep Black RH Moulding Panel

517303671

$28.99

32

Not Available As Spare Parts

XXX

Unavailable

33

Push Nut

732610072

$2.19

34

EXTERNAL GRILL - Call your local BRP dealership

517304763

Unavailable

35

INTERNAL GRILL - Call your local BRP dealership

517304764

Unavailable

36

Screw M4 X 16

250000725

$3.49

37

Not Available As Spare Parts

XXX

Unavailable

38

Hex. Flange Screw K40 X 16

241141660

$1.48

39

Flat Washer 4 mm, Stainless

234042600

$1.15

40

RH Center Foam

517304883

$43.99

41

RH Panel Rear Foam

517304884

$19.99

42

Adhesive Patch

518325560

$4.69

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Deep Black, LH Panel

517304030

$211.99

46

Deep Black, LH Moulding Panel

517303673

$28.99

47

Push Nut

732610072

$2.19

48

Not Available As Spare Parts

XXX

Unavailable

49

Hex. Flange Screw K40 X 16

241141660

$1.48

50

Flat Washer 4 mm, Stainless

234042600

$1.15

51

LH Panel Center Foam

517304887

$27.99

52

LH Panel Lower Foam

517304888

$22.49

53

LH Panel Upper Foam

517304889

$21.99

54

LH Panel Rear Foam

517304890

$17.99

55

Foam

517304891

$21.99

56

Black Latch Kit | Includes 390 to 400

860200239

$16.88

57

Panel Latch

517303981

$12.99

58

PANEL LATCH - Call your local BRP dealership

517304551

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

LH Panel Latch

517303808

$11.49

63

Torx Screw M6 X 20

250000722

$1.68

64

RH Mirror Ass'y

517305100

$52.99

65

Torx Truss Screw M6 X 16

250000721

$1.69

66

Rubber Washer 5 mm

250200024

$2.19

67

LH Mirror Ass'y

517305101

$52.99

68

Torx Truss Screw M6 X 16

250000721

$1.69

69

Rubber Washer 5 mm

250200024

$2.19
