Description

Price

1

Front Seat Base

510004775

$93.99

2

Seat Cover

510005181

$219.99

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

5

Seat Base Ass'y | Includes 6 to 9

510005182

Unavailable

6

Foam Support

510004423

$38.99

7

Pop Rivet 3/16”

390410100

$0.57

8

Pop Rivet 3/16"

293150100

$1.09

9

Seat Cover

510005187

Unavailable

10

Rear Seat Foam

510004791

$294.99

11

Black, Dart

414644300

$0.98

12

Backrest Foam

510004782

$124.99

13

Backrest Cover | Not Shown

510005309

$176.99

14

Upper Backrest Axle

510004377

$44.99

15

Washer

510004379

$10.01

16

Rubber Shim

510004378

$10.99

17

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

18

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

19

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

20

Torx Truss Screw M8 X 16

250000746

$3.38

21

Spacer RH

510004883

Unavailable

22

SPACER LH - Call your local BRP dealership

510004884

Unavailable

23

Flat Washer

224061201

$1.37

24

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

25

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

26

RH Handle Ass'y | Includes 26 to 34

510005070

Unavailable

27

Torx Truss Screw M6 X 16

250000721

$1.69

28

Nut Welded, M6

293100003

$9.12

29

Handle Grip

510004449

$12.49

30

Passenger Handle Trim

510006602

$13.99

31

HANDLE LINK - Call your local BRP dealership

510005218

Unavailable

32

Hex Torx Truss M8 X30

250000745

$3.17

33

Hex. Screw M8 X 45

207084544

$1.48

34

Yellow, Washer

503183200

$3.19

35

LH Handle Ass'y | Includes 35 to 43

510005071

Unavailable

36

Torx Truss Screw M6 X 16

250000721

$1.69

37

Nut Welded, M6

293100003

$9.12

38

Handle Grip

510004449

$12.49

39

Passenger Handle Trim

510006602

$13.99

40

HANDLE LINK - Call your local BRP dealership

510005218

Unavailable

41

Hex Torx Truss M8 X30

250000745

$3.17

42

Hex. Screw M8 X 45

207084544

$1.48

43

Yellow, Washer

503183200

$3.19

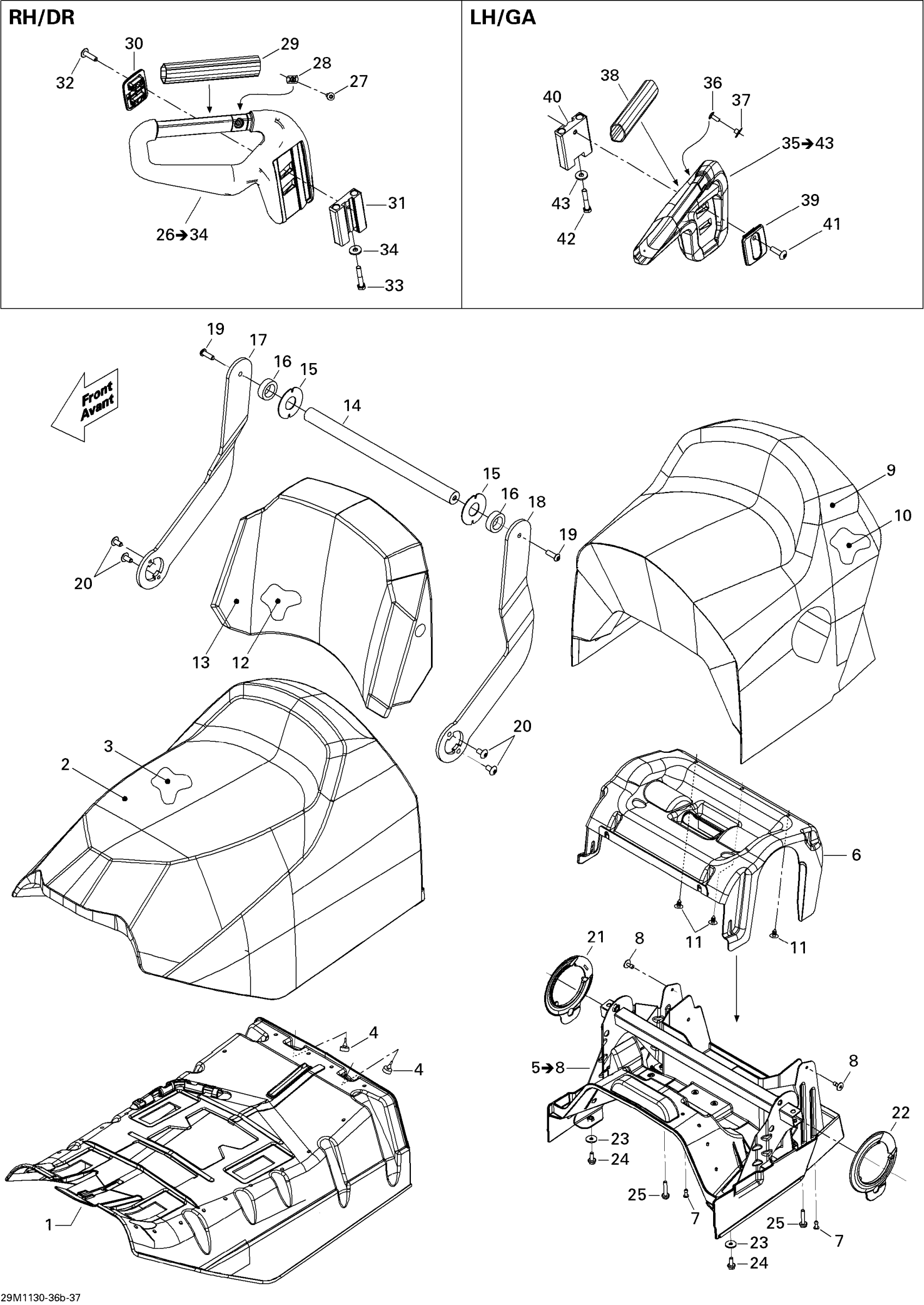

Ski-Doo Grand Touring Sport 600ACE, 2011 09- Seat Europe Diagram
