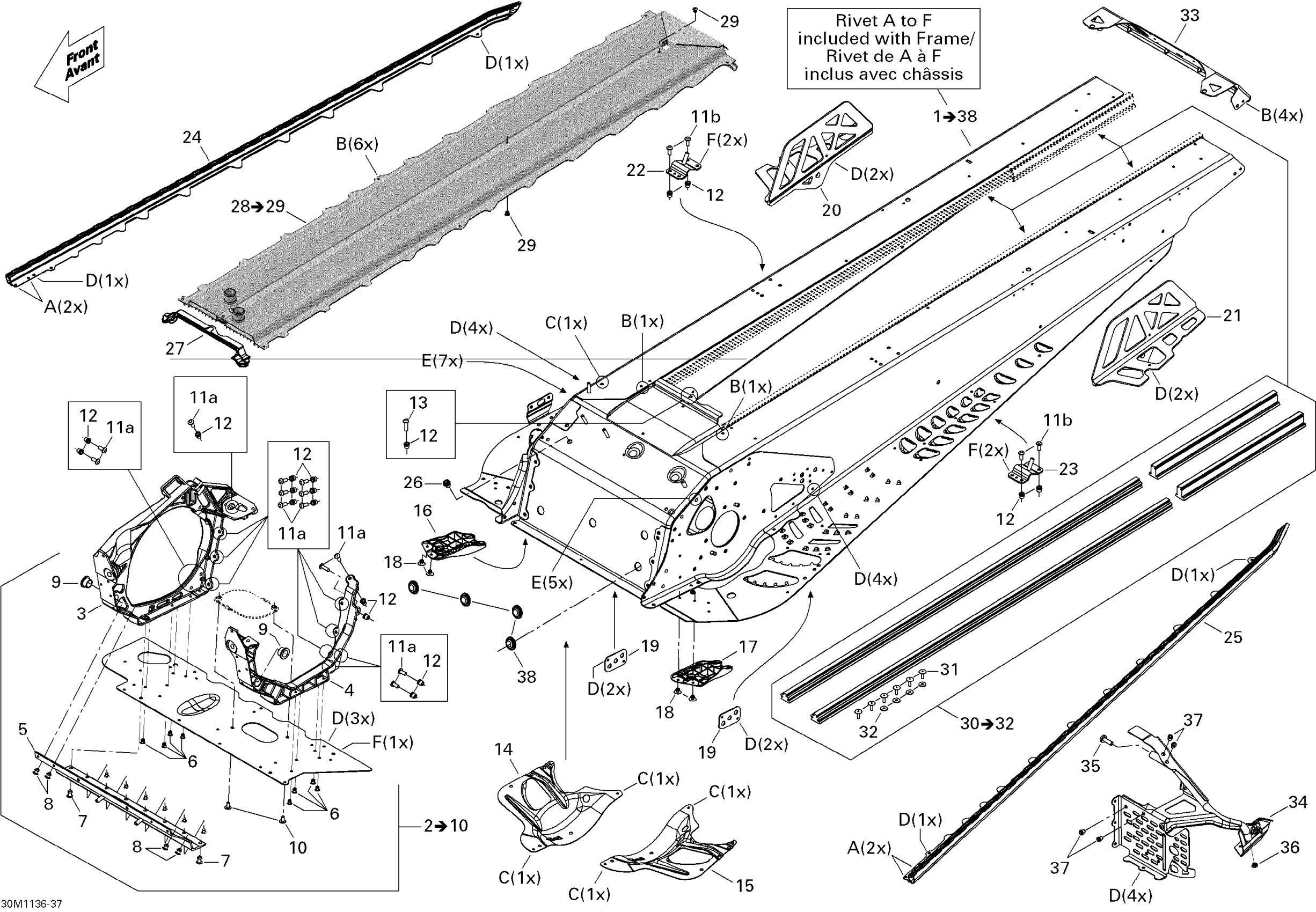

Ski-Doo Grand Touring Sport 600ACE, 2011 Frame Diagram

#

Description
Price

1

FRAME GTX LFF - Call your local BRP dealership

415129828

Unavailable

2

E-MODULE - Call your local BRP dealership | Includes 2 to 10

518327569

Unavailable

3

RH Side Member

518326328

$259.97

4

LH Side Member

518326330

$259.97

5

Front Member

518326198

$59.97

6

Stavex Rivet

293150144

$0.77

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Hemlock Rivet, 6.5 mm

293150119

$4.00

9

Leg Bushing

505072690

$5.92

10

Torx Truss Screw M6 X 12

250000767

$1.66

11a

Hex. Flange Screw M6 X 20

207662044

$1.66

11b

Hex. Flange Screw M6 X 16

207661644

$0.61

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Hex. Flange Screw M6 X 20

207662044

$1.66

14

RH Reinforcement

518324874

$25.35

15

LH Reinforcement

518324875

$25.35

16

RH Deflector, Black Polypropylene

518325782

$11.77

17

LH Deflector, Black Polypropylene

518325783

$11.77

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

19

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

20

RH Bracket | Sport

518328787

$75.35

21

LH Bracket | Sport

518328788

$73.82

22

RH Rear Base

518325973

$18.43

23

LH Rear Base | Includes 10v to 10x

518325974

$18.43

24

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

25

LH Roller

518325378

$76.99

26

Insert

293450275

$9.89

27

Seal

518326656

$8.43

28

Rear Radiator Ass'y, 137" | SPORT

518326641

$699.97

29

Stavex Rivet

293150144

$0.77

30

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

31

Pop Rivet 3/16”

293150108

$1.23

32

Washer

517124300

$0.16

33

Rear Cap

518327105

$20.74

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

36

Full Moon Dart 5 mm

293730042

$2.12

37

Insert M5 X 0.8

293450268

$1.95

38

Black, Plug

293730052

$6.37

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.29

C

Avex Rivet

390909100

$0.29

D

Stavex Rivet

293150144

$0.77

E

Henrob Rivet

293150146

$1.92

F

Hemlock Rivet, 6.4 mm

293150174

$6.43
