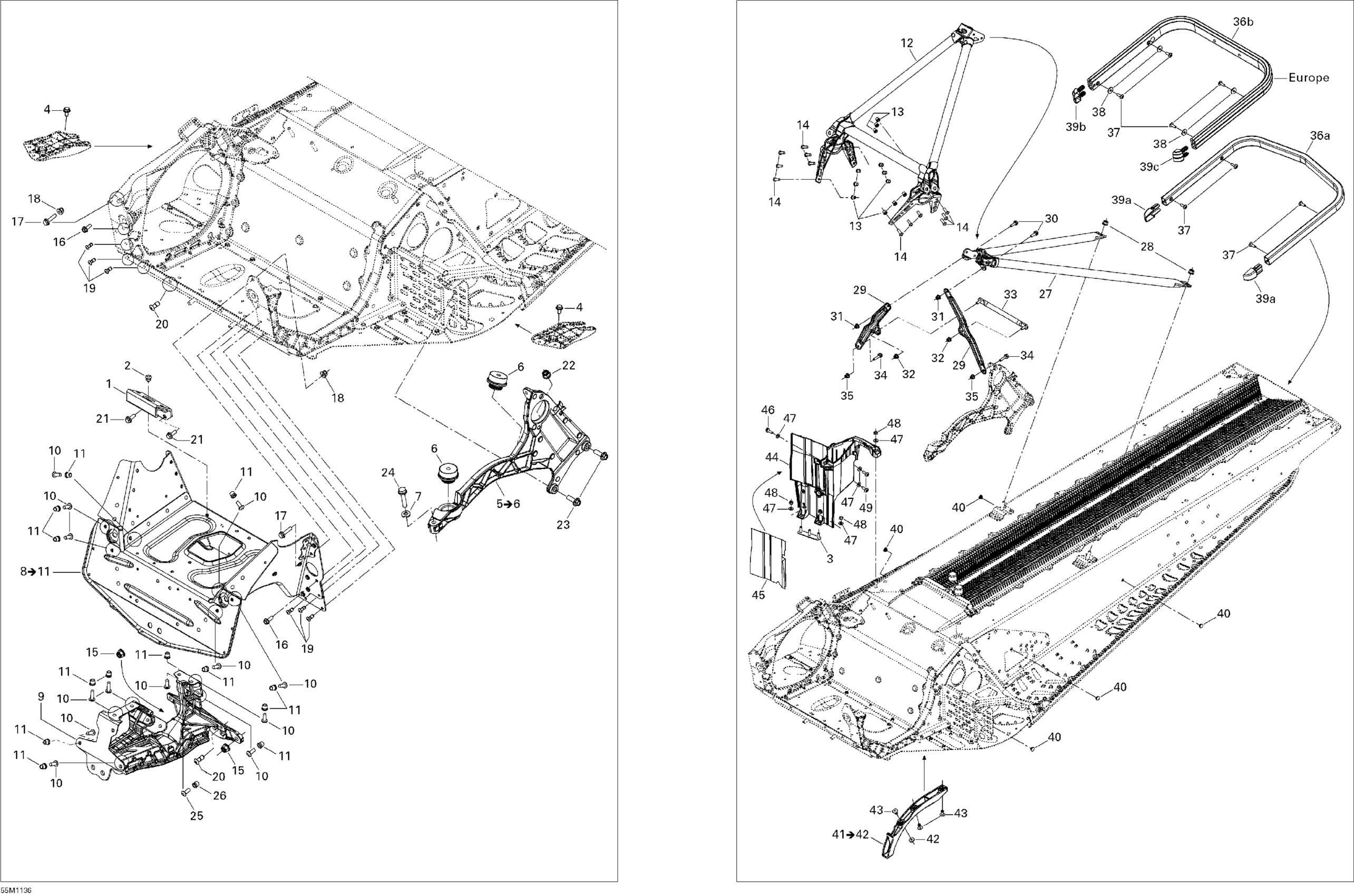

Ski-Doo Grand Touring Sport 600ACE, 2011 09- Frame and Components Diagram

#

Description
Price

1

Engine Support

518326178

$64.49

2

Hemlock Rivet, 6.4 mm

293150174

$7.86

3

Retaining Plate | Includes 40 to 40a

518326550

$18.49

4

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

5

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

6

Vibration Damper

512061516

$61.99

7

Conical Spring Washer M8

234281474

$1.48

8

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

9

Front Suspension Support

518327487

$289.99

10

Hex. Flange Screw M6 X 20

207662044

$2.00

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Front Member

518326970

$299.99

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Hex. Flange Screw M6 X 16

210261650

$1.67

17

Hex. Flange Screw M6 X 25

207662544

$0.64

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Monobolt Rivet, 4.8 mm

293150191

$0.99

20

Monobolt Rivet 6.4

293150182

$3.09

21

Hex. Flange Screw M6 X 16

207661644

$0.74

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

24

Hex. Flange Screw, Scotch Grip

207584034

$2.11

25

Hex. Flange Screw M6 X 20

207662044

$2.00

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Rear Member

518326559

$264.99

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Upper Column Support

518326848

$15.49

30

Hex. Flange Screw M6 X 20

207662044

$2.00

31

Elastic Flange Nut M6 X 1.0

233261416

$2.11

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Center Column Support

518326355

$22.49

34

Hex. Flange Screw M6 X 25

207662544

$0.64

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36a

Clear Rear Bumper

518324980

$99.49

36b

Clear Rear Bumper | Sport

518325577

$111.49

37

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

38

Flat Washer

224061201

$1.37

39a

Full Moon Cap

520000567

$10.99

39b

Full Moon RH Cap

520000711

$8.79

39c

Full Moon LH Cap

520000712

$9.19

40

Full Moon Dart 8 mm

293730041

$2.21

41

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

42

Washer

517124300

$0.19

43

Pop Rivet 3/16”

293150108

$1.19

44

Battery Support

518326472

$43.99

45

Heat Shield

514054755

$9.19

46

Hex. Flange Screw M6 X 20

210262040

$2.11

47

Flat Washer

250200039

$0.74

48

Elastic Stop Nut M6

232561414

$0.55

49

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11
