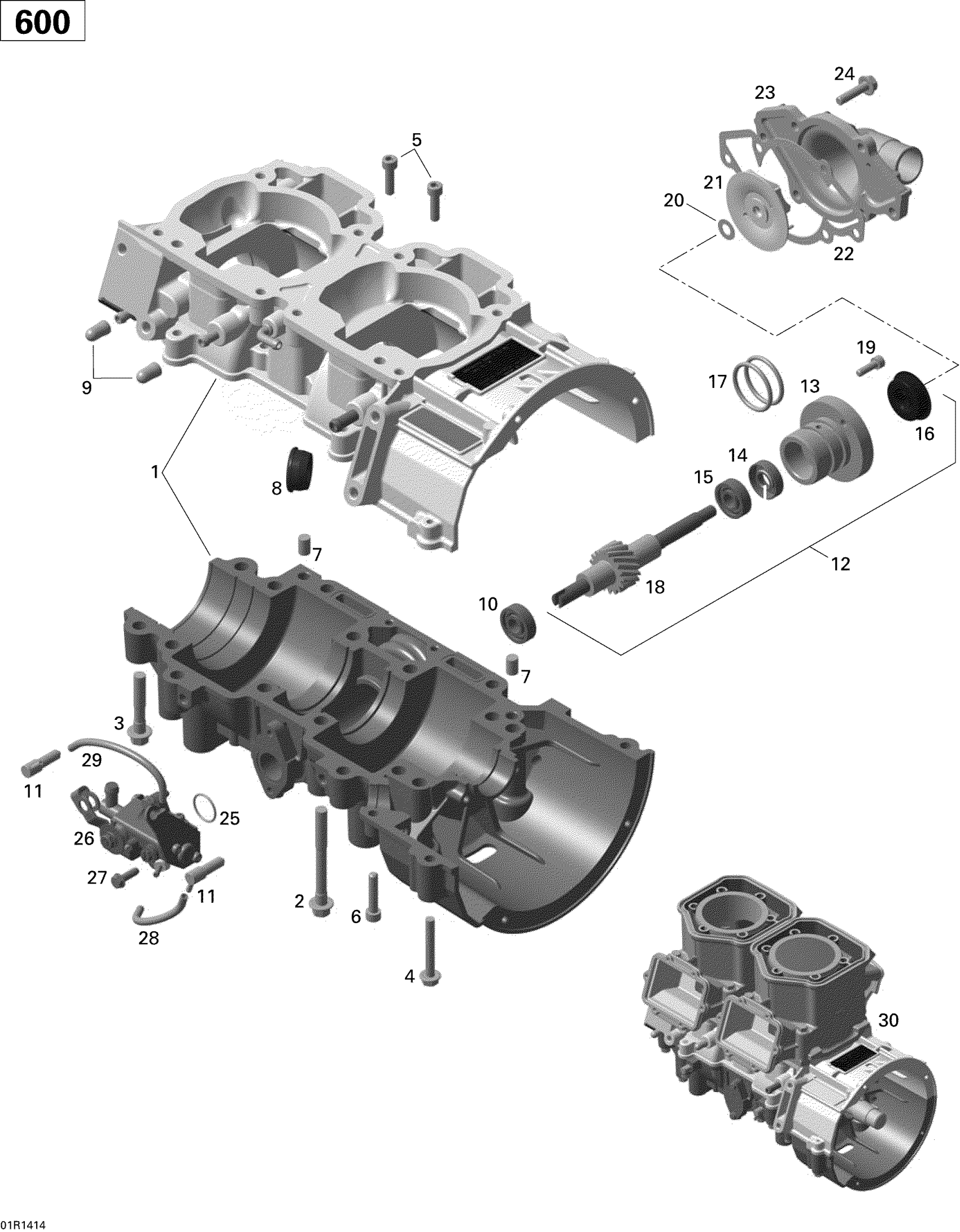

Ski-Doo GRAND TOURING SPORT 600 XP, 2014 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420892241

$1,029.99

2

Hex. Collar Screw M8 X 75

420640836

$13.49

3

Hex. Collar Screw M8 x 45

420640432

$8.79

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.49

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.49

6

Socket Head Screw M6 X 30

205063044

$1.69

7

Center Pin 8 X 12

420632010

$4.09

8

Cable Grommet

420860965

$14.49

9

Cap

420960770

$4.19

10

Ball Bearing

420232100

$20.99

11

Check Valve

420956511

$36.99

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$379.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$15.99

15

Ball Bearing

420232100

$20.99

16

Rotary Seal

420650371

$44.99

17

O-Ring

420950890

$4.49

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.99

20

Thrust Washer

420227945

$4.09

21

Water Impeller

420222505

$19.99

22

Gasket This part replaces 420931810.

420931811

$13.99

23

Water Pump Housing

420922630

$62.99

24

Hex. Screw M6 X 25

420240034

$1.99

25

O-Ring

293300041

$8.79

26

Oil Pump Ass'y

420888780

$419.99

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.49

29

Oil Hose 1500Mm Long

219704404

$17.49

30

Short Block 593

420059312

$2,139.99

30

Short Block 593

420059312

$2,139.99
