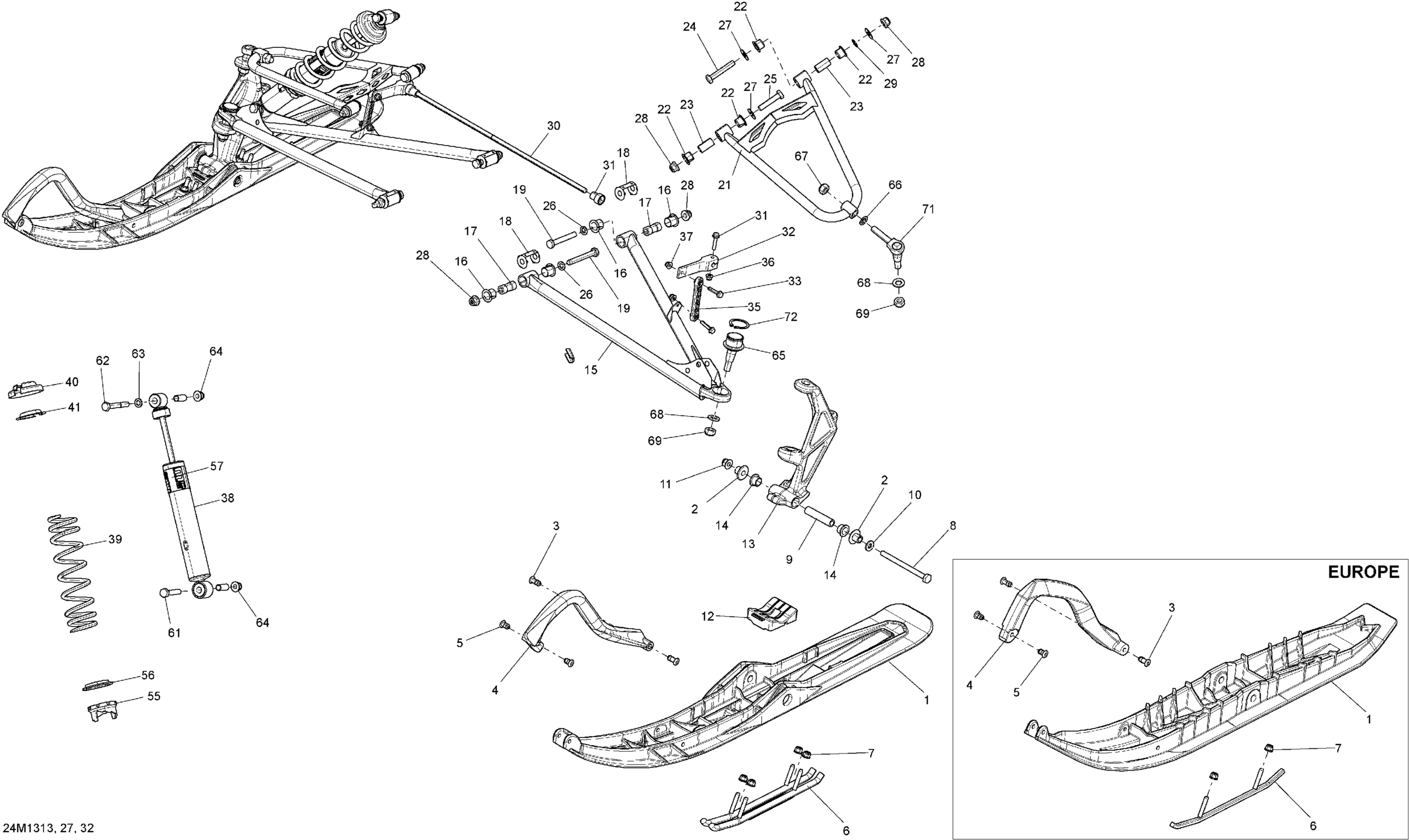

Ski-Doo GRAND TOURING SPORT 600 XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Pilot SL Ski Ass'y

505072443

$134.58

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Black, Handle

505070963

$35.35

5

Retainer 23mm Long

505072133

$5.03

6

Round Carbide Runner

860201043

$144.58

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Spacer

506133300

$19.97

10

Washer

503192496

$0.75

11

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

12

Ski Stopper

505072594

$17.66

13

Clear, LH Ski Leg

505073007

$233.05

13

Clear, RH Ski Leg

505073008

$226.89

14

Leg Bushing

505072690

Unavailable

15

Black, RH Lower Arm

505072664

$193.82

15

Black, LH Lower Arm

505072665

$193.82

16

Bushing

505072208

$3.14

17

Sleeve

505072209

$14.38

18

Wear Plate

505072634

$4.45

19

Screw Hex. M10 X 70

250001024

$1.74

21

Upper Arm | SE White/White Models

505072374

$143.05

22

Bushing

505072250

$3.14

23

Sleeve

505072143

$8.62

24

Screw Hex. M10 X 60

250001023

$1.74

25

Screw Hex. M10 X 50

250001022

$1.42

26

Washer

503189564

$0.72

27

Washer

505072392

$4.65

28

Hex. Flange Elastic Nut M10

250100165

$0.70

29

O-Ring

505072448

Unavailable

30

Stabilisator

505072602

$71.99

31

Bushing

505072064

$2.22

32

Stabilisator Lever

505072394

$16.12

33

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

34

Hex. Flange Elastic Nut M6

233261466

$1.66

35

Sway Bar Double Joint Link

505072204

$19.20

36

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

37

Hex. Flange Elastic Nut M6

233261466

$1.66

38

Front Shock

505073180

$157.66

39

Full Moon Spring

505072897

$66.89

40

Spring Stopper

706200881

$10.30

55

Adjustment Cam

505073625

$12.18

56

Spring Guide

503187500

$7.37

57

Shock Decal "Mc"

516005535

$10.23

61

Hex Screw M10 X 1.5 X 55

207005554

$6.18

62

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

63

Washer

503189564

$0.72

64

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

65

Ball Joint

505073636

$49.97

66

Washer

503189276

$3.20

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

68

Washer

503192491

$4.38

69

Hex Elastic Nut M12 X 1.25

232521464

$1.74

71

Upper Ball Joint

505072257

$16.89

72

Circlip

293370035

$2.55
