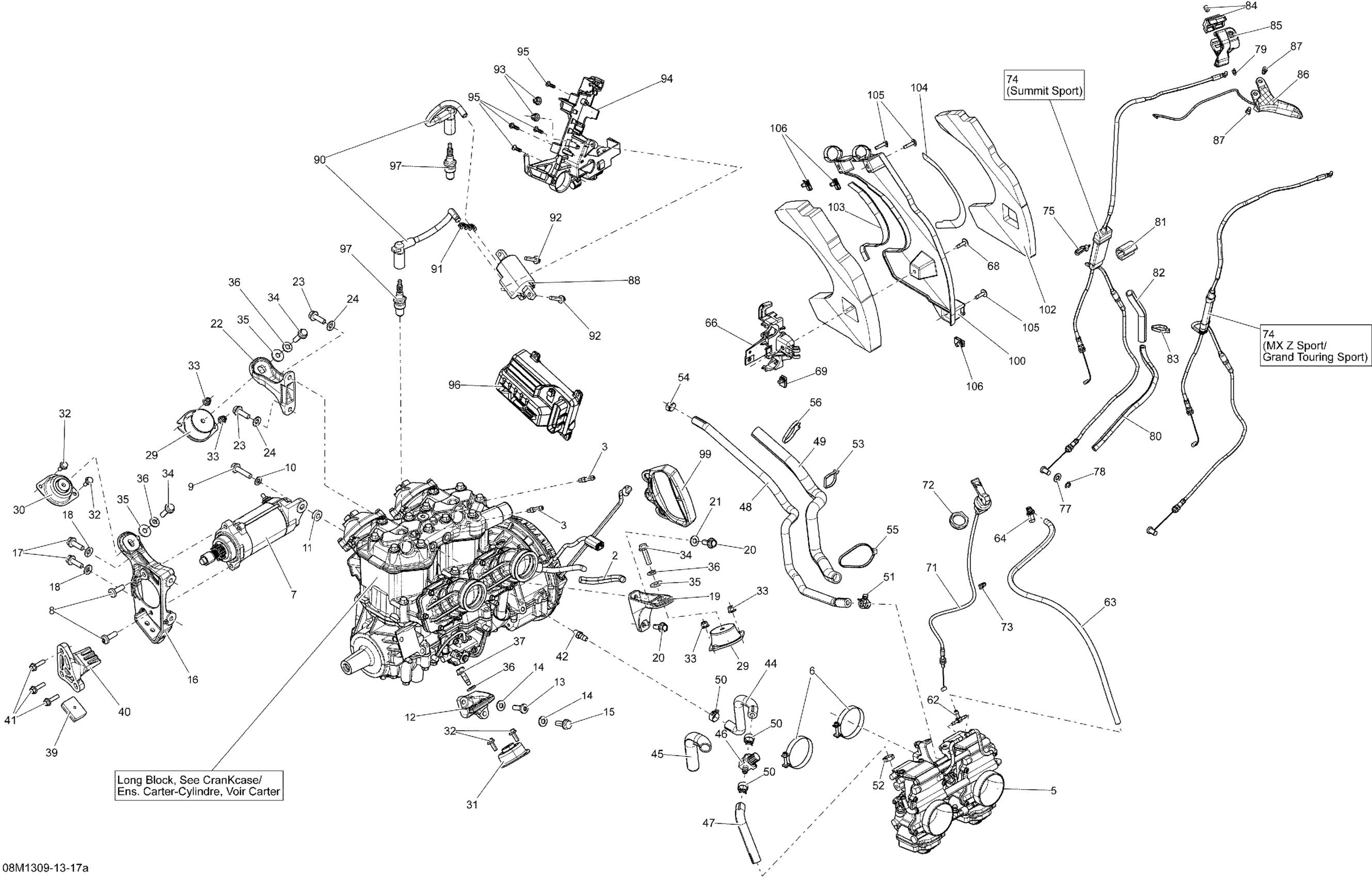

Ski-Doo GRAND TOURING SPORT 600 XP, 2013 Engine And Engine Support Diagram

#

Description
Price

2

Tubing 10 MM 1000MM Long

219704407

$2.52

3

Hose Nipple

420924724

$14.10

5

Carburetor Kit, TM40-B418

403138815

$1,203.99

6

Gemi Clamp

512059835

$10.21

7

Starter

515178473

$319.49

8

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

9

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

10

Flat Washer With Teflon 8 mm

250200008

$3.58

11

Washer

515176500

$10.51

12

Rear Support, PTO

512060478

$29.07

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

14

Conical Spring Washer M8

250200146

$0.96

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

16

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

18

Conical Spring Washer M8

250200146

$0.96

19

Rear Support, MAG

512060559

$29.07

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

21

Conical Spring Washer M8

250200146

$0.96

22

Front Support, MAG

512060469

$30.57

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

24

Conical Spring Washer M8

250200146

$0.96

29

Rubber Mount

512060729

$67.88

30

Rubber Mount

512060387

$41.01

31

Rubber Mount

512060448

$41.01

32

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

34

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

35

Yellow, Washer

503183200

$2.91

36

Conical Spring Washer M8

250200146

$0.96

37

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

39

Stopper

512060627

$9.03

40

Stopper Support

512060576

$27.58

41

Hex. Flange Screw M6 X 25

207562544

$1.60

42

Male Connector 1/8"-27 NPT

512060196

Unavailable

44

Hose Formed

512060355

$22.36

45

Tubing 16 Mm 1000Mm Long

219704408

$7.15

46

Valve 5/16” | Grand Touring 500.

512059324

$41.01

47

Hose Formed

512060353

$21.61

48

Hose Formed

512060347

Unavailable

49

Tubing 16 Mm 1000Mm Long

219704408

$7.15

50

Spring Clamp

414655700

$0.66

51

Norma Spring Clamp

293650214

$14.90

52

Oetiker Clamp

293650125

$3.09

53

Tie-Rap 180 mm

414115200

$0.10

54

Oetiker Clamp

293650046

$2.67

55

Tie Wrap 368 mm

293750008

$0.97

56

Tie-Rap 180 mm

414115200

$0.10

62

T-Fitting

572045500

$7.09

63

Polyurethane Hose 10000Mm Long

219704410

$52.96

64

Male Connector

414580700

$3.88

66

Solenoid Support

512060298

$12.15

68

Torx Screw M5 X 20

250000528

$2.00

69

Panel Nut M5 X 0.8

250000958

$4.00

71

Choke Cable

512060672

$44.75

72

Plastic Nut

512060671

$0.96

73

Tie-Rap 180 mm

414115200

$0.10

74

Throttle Cable

512060886

$72.36

75

Tie-Rap 180 mm

414115200

$0.10

77

Flat Washer 8 mm, Nylon

234081100

$1.15

78

Circlip

414753500

$0.67

79

Circlip

414274500

$0.85

80

Tubing 6 Mm 3000Mm Long

219704425

$12.75

81

Protector

512060313

$9.03

82

Tubing 10 MM 1000MM Long

219704407

$2.52

83

Tie-Rap 180 mm

414115200

$0.10

84

Upper Housing

512060859

$8.13

85

Lower Housing

512060860

$16.39

86

Throttle Handle Ass'y

512061252

$114.15

87

Flange Screw

732601143

$3.90

88

Ignition Coil

512059968

$48.48

90

Cable

512060291

$46.99

91

Plastic Clip, Spark Plug Wire

410914600

$5.30

92

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

93

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

94

Coils Support

512060924

$9.03

95

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

96

Calibrated Module, 600

512060680

$739.99

97

Spark Plug NGK BR9ECS

415128524

$11.13

99

Starter Grip

512060136

$14.10

100

Noise Shield

512060338

$17.13

101

Inner Noise Foam

512060341

$17.13

102

Outer Noise Foam

512060342

$17.13

103

Heat Shield

512060574

$7.13

104

Heat Shield

512060575

$7.13

105

Torx Screw M5 X 20

250000528

$2.00

106

Panel Nut M5 X 0.8

250000958

$4.00
