Description

Price

1

Front Seat Base

510004775

$85.79

2

Seat Cover

510005181

$224.99

3

Front Seat Foam

510004777

$224.99

4

Rubber Stopper

708000759

$4.15

5

Seat Base Ass'y | Includes 20a to 20a3

510005535

$429.99

6

Foam Support

510004423

$35.04

7

Pop Rivet 3/16”

390410100

$0.52

8

Pop Rivet 3/16"

293150100

$1.04

9

Rear Seat Cover

510005399

$234.99

10

Rear Seat Foam

510004791

$299.99

11

Black, Dart

414644300

$0.90

12

Backrest Foam

510004782

$129.99

13

Backrest Cover | Not Shown

510005309

$179.99

14

Upper Backrest Axle

510004377

$44.00

15

Washer

510004379

$8.69

16

Rubber Shim

510004378

$8.36

17

RH Arm, Black

510005539

$28.99

18

LH Arm, Black

510005538

$28.99

19

Hex Torx Truss M8 X30

250000745

$2.96

20

Hex Torx Truss M8 X30

250000745

$2.96

21

Flat Washer 8 mm

250200128

$2.00

22a

Seat Harness

515176766

$37.28

22b

Tie-Rap 180 mm

414115200

$0.10

22c

Housing Support

515175283

$8.18

22d

Spacer

271000558

$8.13

23

Flat Washer

224061201

$1.27

24

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

25

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

26

RH Handle Ass'y | Includes 140a to 140a9

510006708

$244.99

27

Torx Truss Screw M6 X 16

250000721

$1.60

28

Nut Welded, M6

293100003

$7.25

29

Handle Grip

510004449

$10.33

30

RH Air Deflector

510005009

$26.84

31

Heated Element

515176999

$66.39

32

Was 515175506 Tubing

219704426

$132.06

33

Screw M4 X 16

250000725

$3.30

34

Handle Reinforcement

510005011

$17.88

35

Male Housing, 3 Circuits

515175494

$14.90

36

LH Handle Ass'y | Includes 150a to 150a16

510006709

$244.99

37

Torx Truss Screw M6 X 16

250000721

$1.60

38

Nut Welded, M6

293100003

$7.25

39

Handle Grip

510004449

$10.33

40

LH Air Deflector

510005010

$26.84

41

Heated Element

515176999

$66.39

42

Was 515175506 Tubing

219704426

$132.06

43

Switch Housing

510005036

$17.13

44

Torx Screw K50 X 16

250000720

$1.60

45

Screw M4 X 16

250000725

$3.30

46

Rocker Switch

510004413

$8.31

47

Switch Protector

510004414

$7.15

48

Handle Harness

515176697

$27.58

49

Handle Reinforcement

510005011

$17.88

50

Connector Decal

516003937

$15.64

51

Heated Handle Decal

516003816

$10.04

52

Male Connector

515176033

$14.90

53

Passenger Handle Trim

510006602

$11.36

54

Hex Torx Truss M8 X30

250000745

$2.96

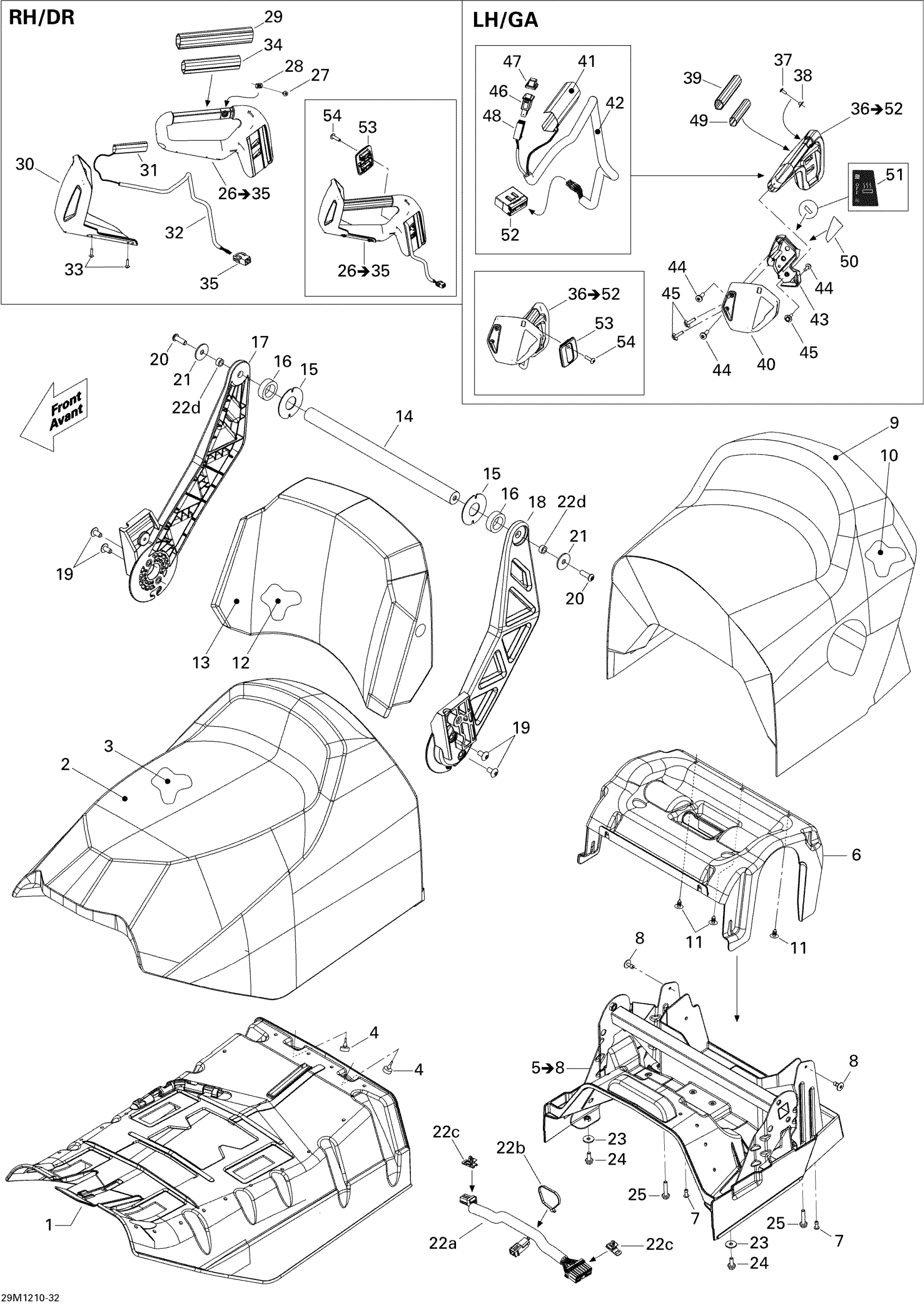

Ski-Doo Grand Touring Sport 600 XP, 2012 Seat Diagram
