Description

Price

1

Socket Head Screw M8 X 25

205082544

$1.15

2

Socket Set Screw M6 X 8

206260844

$1.48

3

Hex. Screw M8 X 90

207089044

$3.48

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

Hex. Flange Screw M8 X 40

207684044

$1.48

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Elastic Flange Nut M8

250100131

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

E-Circlip

293370013

$0.65

12

Grease Fitting

408200700

$3.49

13

Bushing

414936000

$13.99

14

Retaining Ring

503168800

$14.99

15

Pivot Arm Axle

503189156

$21.99

16

Washer

503189157

$3.28

17

Washer

503189157

$3.28

18

Washer

503189276

$3.28

22

Axle Bar (Long)

503190643

$17.39

23

Spring Support Kit

861805547

$10.49

27

Retaining Ring

415129371

$12.01

28

Spring Support Kit

861805547

$10.49

31

BUSHING - Call your local BRP dealership

503192223

Unavailable

32

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

33

Rear Shock HPG Seal

503193190

$248.99

36

Swivel Bushing

503191555

$7.83

37

Extended Bushing

503191556

$7.83

38

LH Cam Adjuster

503191565

$16.49

38

RH Cam Adjuster

503191566

$16.49

42

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

44

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$98.49

46

Ball Bearing

503193548

$17.99

48

Black, LH Spring Square

503192271

$80.49

48

Black, RH Spring Square

503192270

$80.49

50

Linkage Rod

503192255

$44.49

53

Bushing

572080700

$17.39

54

Bolt M8, Short

732601197

$15.36

55

Bolt M8 X 248mm

503192440

$30.49

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

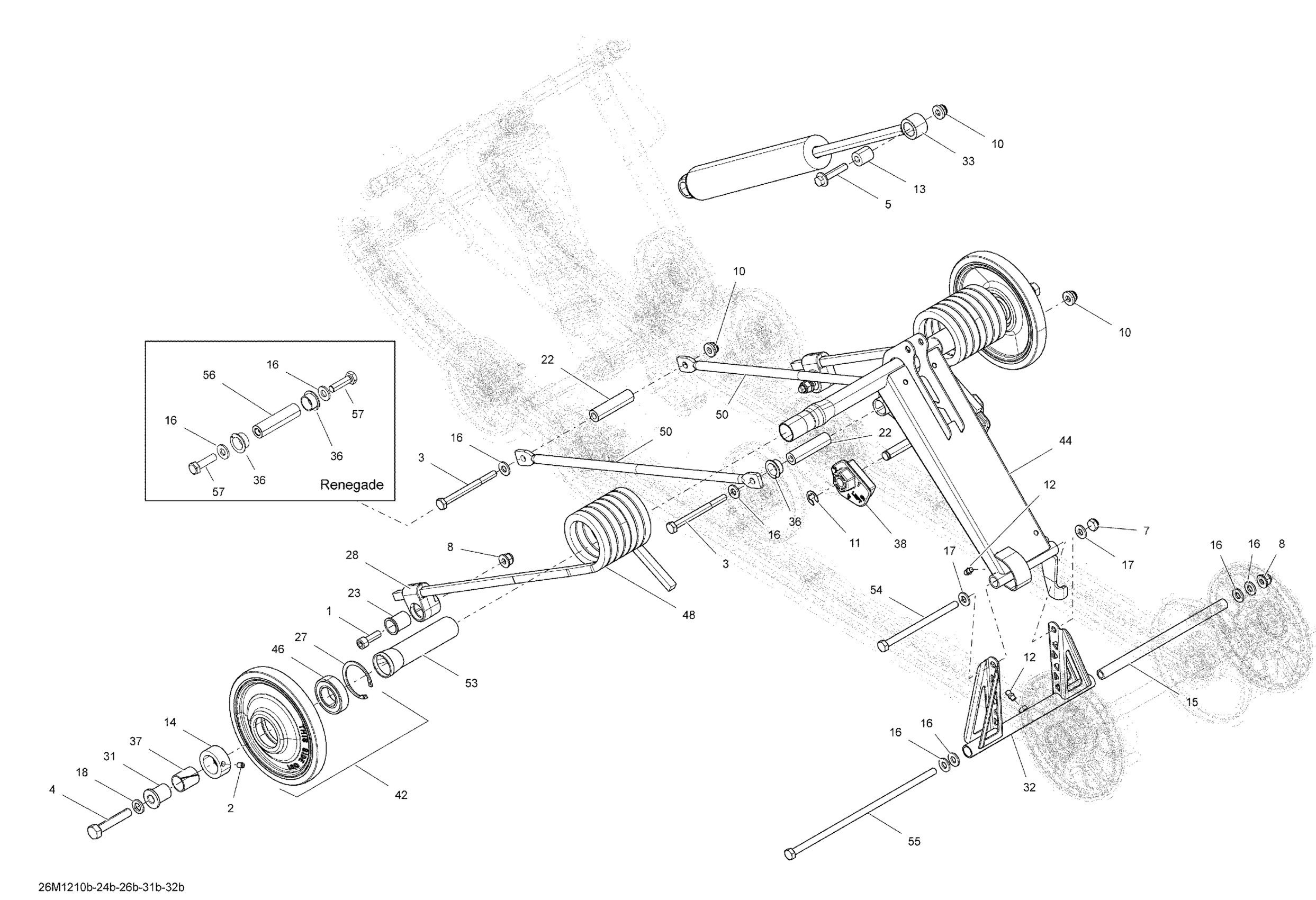

Ski-Doo Grand Touring Sport 600 XP, 2012 08- Rear Suspension Rear Arm Diagram
