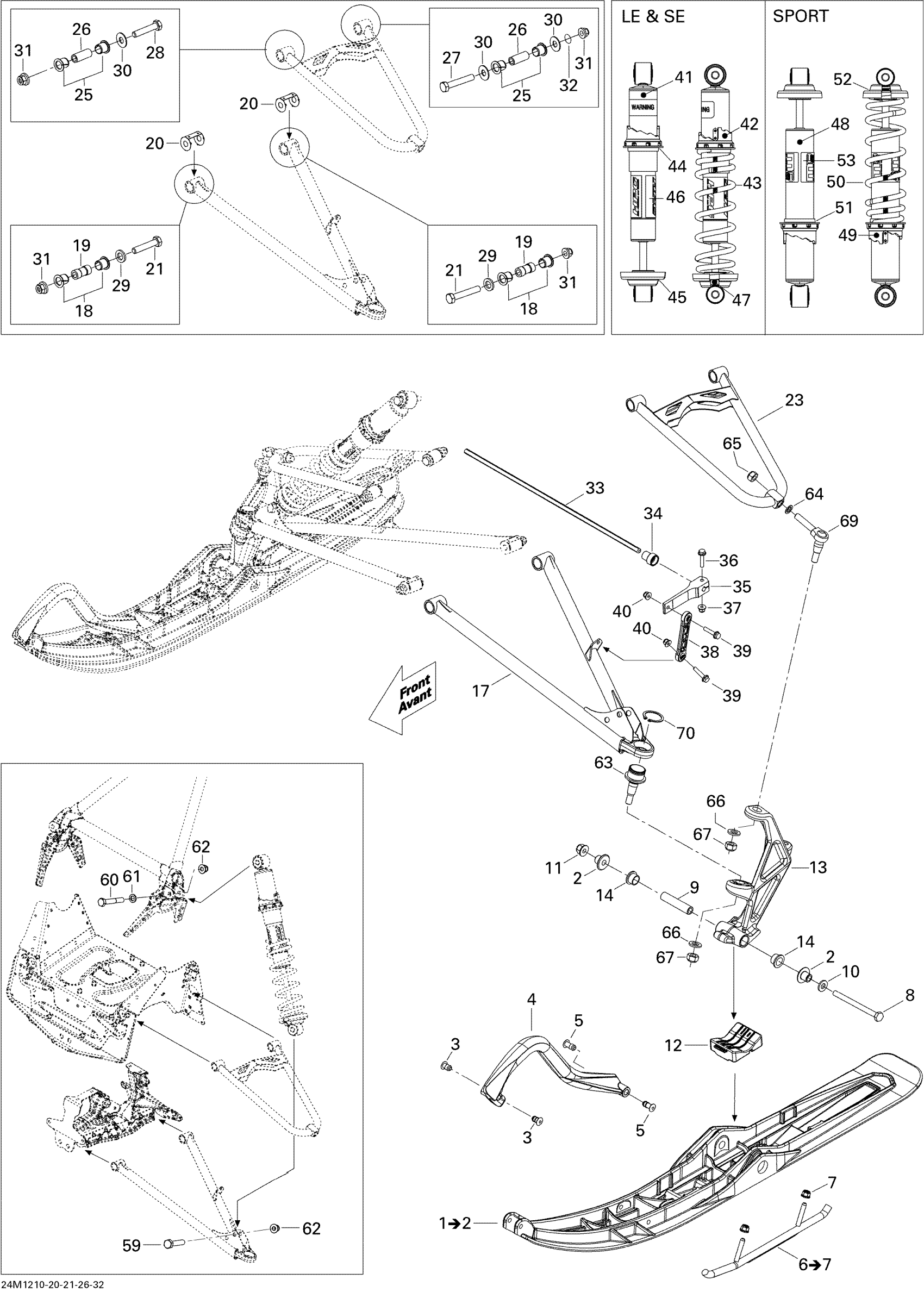

Ski-Doo Grand Touring Sport 600 XP, 2012 Front Suspension And Ski Diagram

#

Description
Price

1

Pilot SL Ski Ass'y

505072443

$134.58

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Black, Handle

505070963

$35.35

5

Retainer 23mm Long

505072133

$5.03

6

Round Carbide Runner

860201043

$144.58

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Spacer

506133300

$19.97

10

Washer

732900049

$0.57

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505072594

$17.66

13

Clear, LH Ski Leg

505073007

$233.05

13

Clear, RH Ski Leg

505073008

$226.89

14

Leg Bushing

505072690

Unavailable

17

Black, RH Lower Arm

505072664

$193.82

17

Black, LH Lower Arm

505072665

$193.82

18

Bushing

505072208

$3.14

19

Sleeve

505072209

$14.38

20

Wear Plate

505072634

$4.45

21

Screw Hex. M10 X 70

250001024

$1.74

23

Upper Arm | SE White/White Models

505072374

$143.05

25

Bushing

505072250

$3.14

26

Sleeve

505072143

$8.62

27

Screw Hex. M10 X 60

250001023

$1.74

28

Screw Hex. M10 X 50

250001022

$1.42

29

Washer

503189564

$0.72

30

Washer

505072392

$4.65

31

Hex. Flange Elastic Nut M10

250100165

$0.70

32

O-Ring

505072448

Unavailable

33

Stabilisator

505072602

$71.99

34

Bushing

505072064

$2.22

35

Stabilisator Lever

505072394

$16.12

36

Hex. Flange Screw M6 X 30

207663046

$1.42

37

Elastic Flange Nut M6 X 1.0

233261416

$1.74

38

Sway Bar Double Joint Link

505072204

$19.20

39

Hex. Flange Screw M6 X 30

207663046

$1.42

40

Elastic Flange Nut M6 X 1.0

233261416

$1.74

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Front Shock

505073180

$157.66

49

Adjustment Cam

505073625

$12.18

50

Full Moon Spring

505072897

$66.89

51

Spring Guide

503187500

$7.37

52

Spring Stopper

706200881

$10.30

53

SHOCK DECAL - Call your local BRP dealership

516004534

Unavailable

59

Hex. Screw M10 X 55

207005544

$1.85

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

61

Washer

503189564

$0.72

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Ball Joint

505073636

$49.97

64

Washer

503189276

$3.20

65

Hex. Elastic Hex. Nut M12

250100089

$0.39

66

Flat Washer 12 mm

234021410

$0.68

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

69

Upper Ball Joint

505072257

$16.89

70

Circlip

293370035

$2.55
