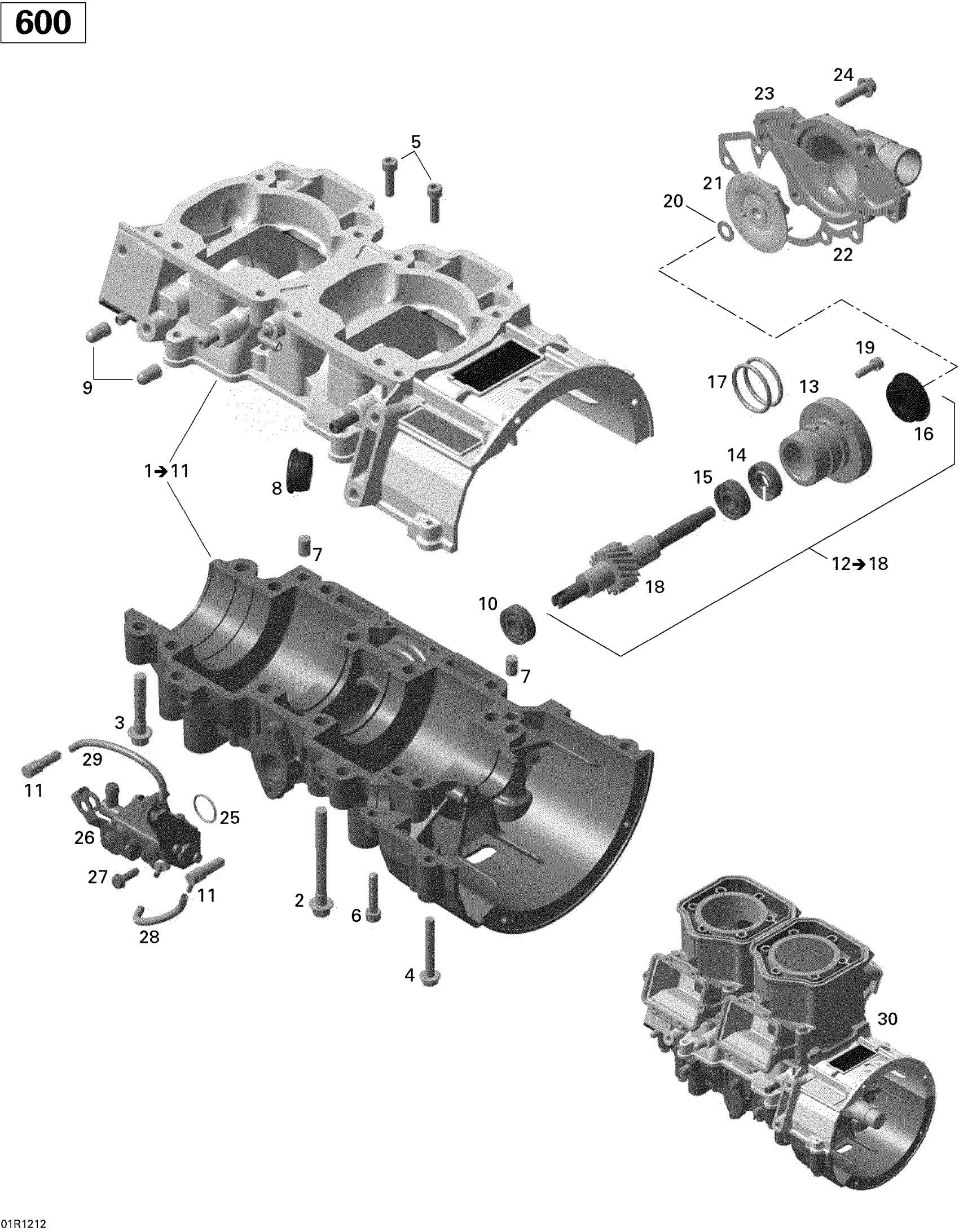

Ski-Doo Grand Touring Sport 600 XP, 2012 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420892241

$1,029.99

2

Hex. Collar Screw M8 X 75

420640836

$1.94

3

Hex. Collar Screw M8 x 45

420640432

$1.94

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.28

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

6

Socket Head Screw M6 X 30

205063044

$1.42

7

Center Pin 8 X 12

420632010

$3.07

8

Cable Grommet

420860965

$13.58

9

Cap

420960770

$4.00

10

Ball Bearing

420232100

$15.57

11

Check Valve

420956511

$28.57

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$12.65

15

Ball Bearing

420232100

$15.57

16

Rotary Seal

420650371

$35.72

17

O-Ring

420950890

$4.28

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.85

20

Thrust Washer

420227945

$3.86

21

Water Impeller

420222505

$14.92

22

Gasket This part replaces 420931810.

420931811

$13.26

23

Water Pump Housing

420922630

$59.20

24

Hex. Screw M6 X 25

420240034

$1.56

25

O-Ring

293300041

$7.05

26

Oil Pump Ass'y

420888780

$386.89

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

$13.62

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

30

Short Block 593

420059312

$2,139.99

30

Short Block 593

420059312

$2,139.99
