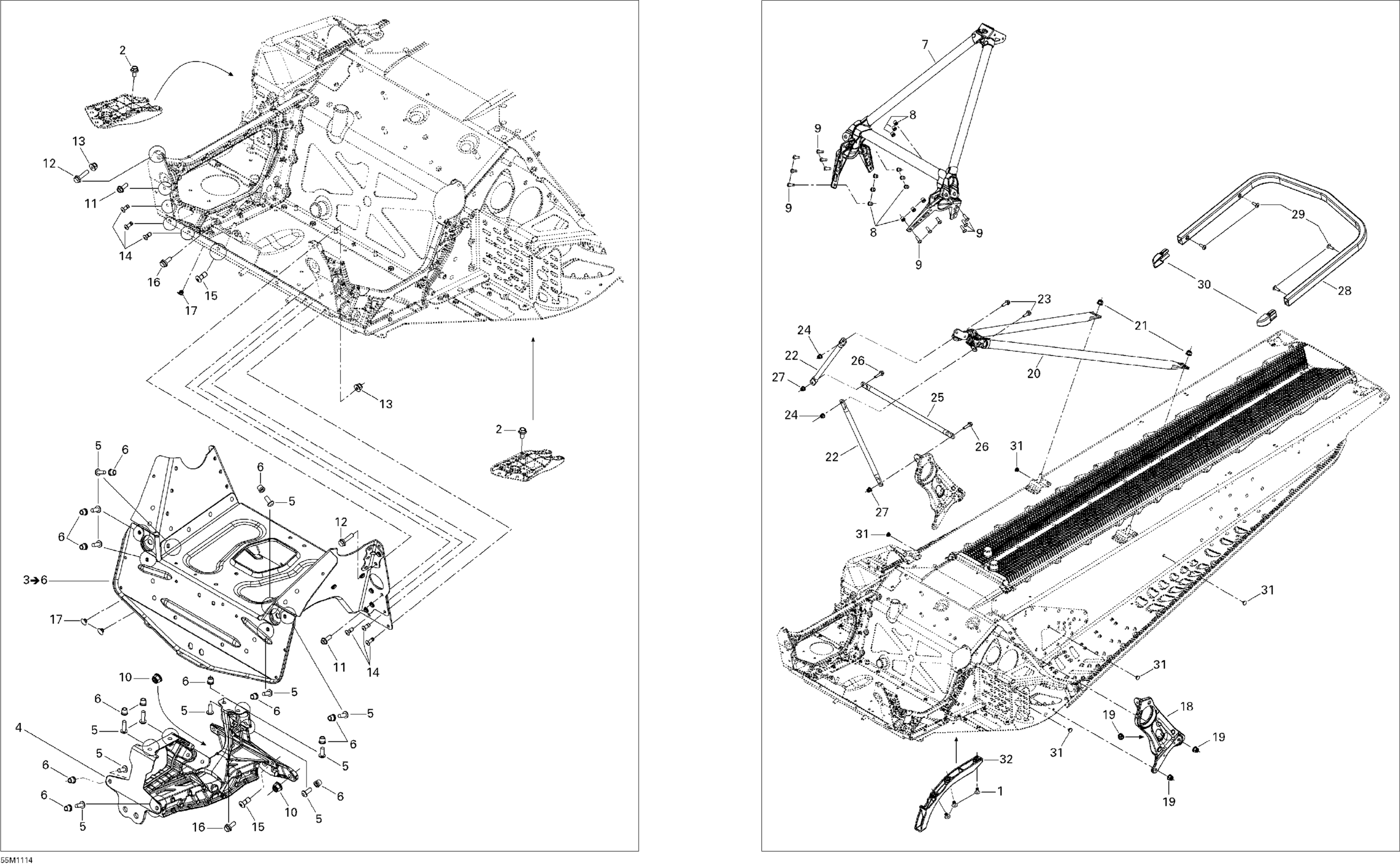

Ski-Doo Grand Touring Sport 600 XP, 2011 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16”

293150108

$1.19

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

4

Front Suspension Support

518327487

$289.99

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Front Member

518326970

$299.99

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Flange Screw M6 X 16

210261650

$1.67

12

Hex. Flange Screw M6 X 25

207662544

$0.64

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Monobolt Rivet, 4.8 mm

293150191

$0.99

15

Monobolt Rivet 6.4

293150182

$3.09

16

Hex. Flange Screw M6 X 16

207661644

$0.74

17

Full Moon Dart 5 mm

293730042

$2.21

18

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Rear Member

518326559

$264.99

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Upper Lateral Column Support

518325114

$22.49

23

Hex. Flange Screw M6 X 20

207662044

$2.00

24

Elastic Flange Nut M6 X 1.0

233261416

$2.11

25

Center Column Support

518325115

$22.49

26

Hex. Flange Screw M6 X 25

207662544

$0.64

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Clear Rear Bumper

518324980

$99.49

29

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

30

Full Moon Cap

520000567

$10.99

31

Full Moon Dart 8 mm

293730041

$2.21

32

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49
