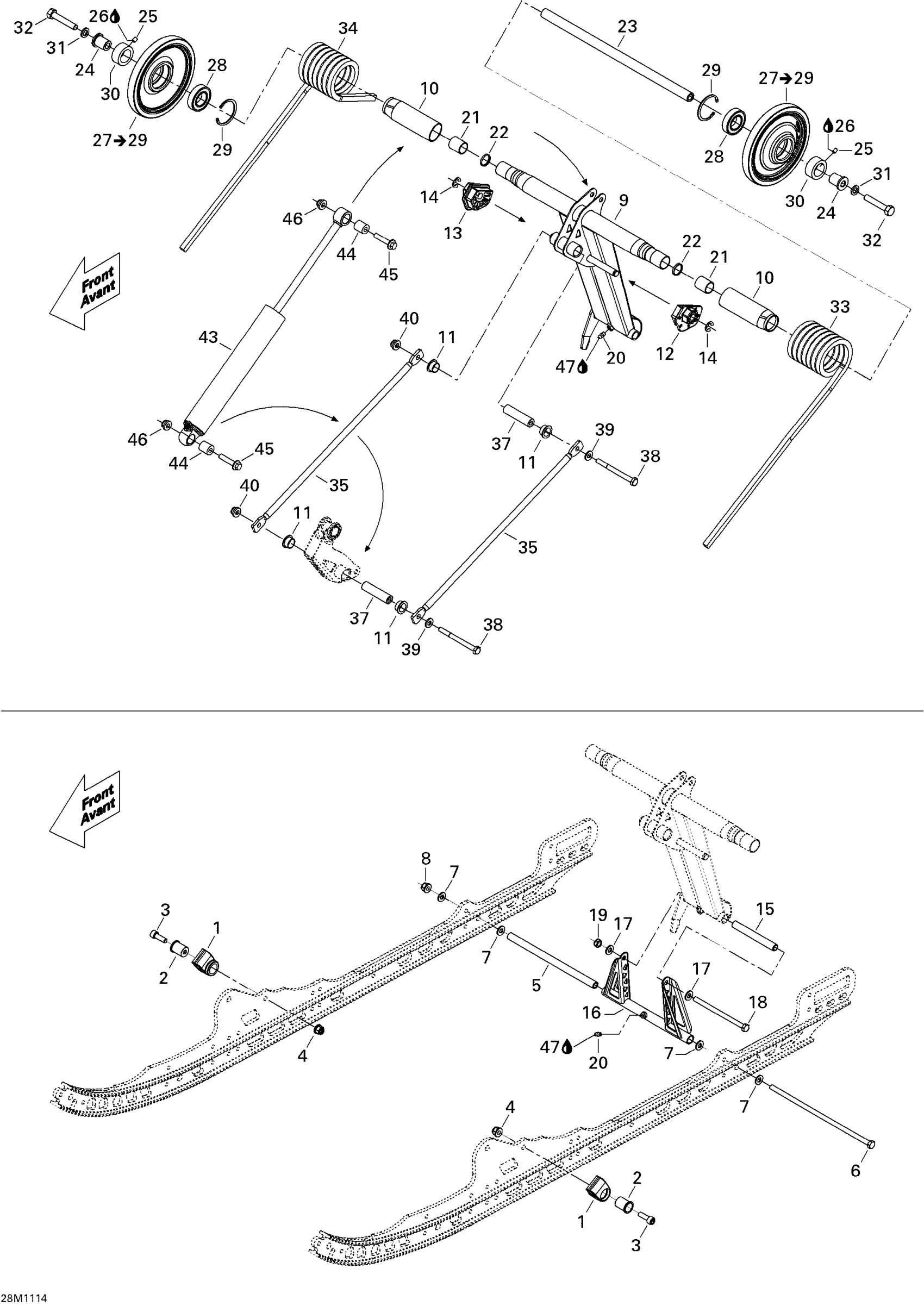

Ski-Doo Grand Touring Sport 600 XP, 2011 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Elastic Flange Nut M8

250100131

Unavailable

5

Pivot Arm Axle

503189156

$20.12

6

Bolt M8 X 248mm

503192440

$29.07

7

Washer

503189157

$3.10

8

Hex. Flange Elastic Nut M8

233281414

$1.31

9

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$91.01

10

Bushing

572080700

$14.81

11

Swivel Bushing

503191555

$5.54

12

LH Cam Adjuster

503191565

$13.54

13

RH Cam Adjuster

503191566

$13.54

14

E-Circlip

293370013

$0.60

15

Upper Axle, Pivot Arm

503144300

$10.84

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

17

Washer

503189157

$3.10

18

Bolt M8, Short

732601197

$14.61

19

Hex. Elastic Stop Nut M8

232581414

$0.54

20

Grease Fitting

408200700

$3.21

21

Extended Bushing

503191556

$5.54

22

Washer

503191651

$7.27

23

UPPER SHAFT - Call your local BRP dealership

503192222

Unavailable

24

BUSHING - Call your local BRP dealership

503192223

Unavailable

25

Socket Set Screw M6 X 8

206260844

$1.43

26

Loctite 243, 10 ml

293800060

$21.49

27

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

28

Ball Bearing

503193548

$16.39

29

Retaining Ring

415129371

$8.66

30

Retaining Ring

503168800

$12.27

31

Washer

503189276

$3.10

32

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

33

Black, LH Spring Square

503192271

$76.09

34

Black, RH Spring Square

503192270

$76.09

35

Linkage Rod

503192255

$44.00

37

Axle Bar (Long)

503190643

$14.90

38

Hex. Screw M8 X 90

207089044

$3.24

39

Washer

503189157

$3.10

40

Hex. Flange Elastic Nut M8

233281414

$1.31

43

Rear Shock HPG Seal

503193190

$231.31

44

Bushing

414936000

$11.21

45

Hex. Flange Screw M8 X 40

207684044

$1.43

46

Hex. Flange Elastic Nut M8

233281414

$1.31

47

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
