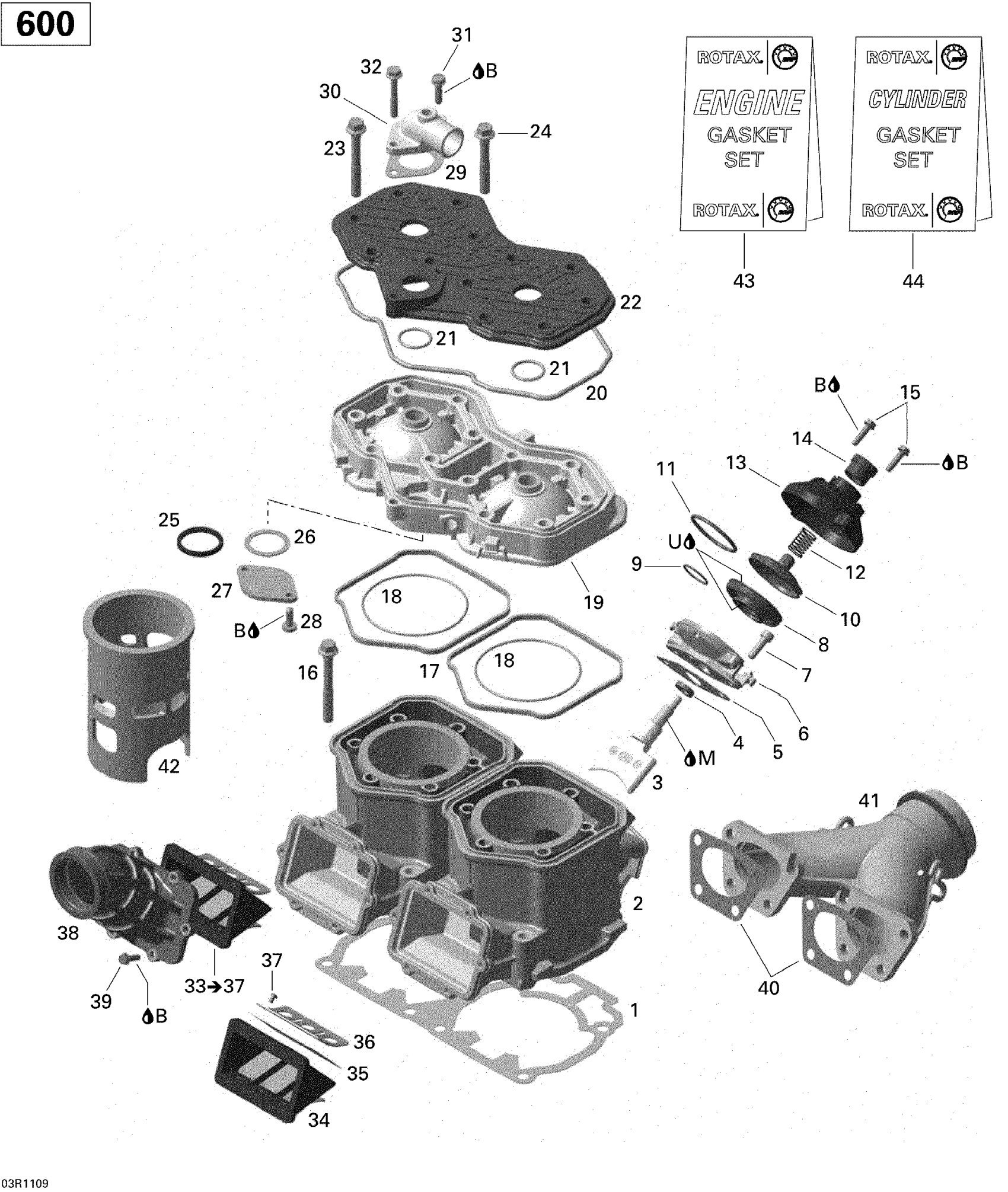

Ski-Doo Grand Touring Sport 600 XP, 2011 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

1

Gasket 0.5 mm

420431420

$23.99

1

Gasket 0.6 mm

420431421

$20.49

1

Gasket 0.7 mm

420431422

$27.49

1

Gasket 0.8 mm

420431423

$25.99

1

Gasket 0.9 mm

420431424

$24.99

2

Cylinder With Sleeve

420613628

$425.99

2

Cylinder With Sleeve

420613628

$425.99

3

Exhaust Valve

420854371

$59.49

4

Oil Seal | Included in gasket kit

420950732

$9.27

5

Gasket

420250239

$7.37

6

Valve Housing

420854266

$96.49

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

Hex. Tapping Screw M5 X 20

420841555

$1.69

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

17

Rubber Ring

420931590

$6.19

18

O-Ring This part replaces 420850540.

293300026

$3.39

19

CYLINDER HEAD - Call your local BRP dealership

420613845

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$14.28

21

O-Ring

420430782

$5.39

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

24

Hex. Screw M8 X 56.5

420941627

$8.57

25

Sealing Ring

420931272

$15.89

26

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

27

COVER - Call your local BRP dealership

420926260

$26.99

28

Torx Screw M6 X 16

420640324

$2.11

29

Gasket

420850338

$11.60

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

Reed Valve Ass'y

420924519

$54.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Reed Pedal

420924532

$42.49

36

Reed Pedal Stop

420924539

$13.16

37

Phillips Screw M3 X 5

420941215

$1.69

38

Intake Socket

420667490

$121.49

39

Taptite Screw M5 X 16

420941928

Unavailable

40

Gasket

420931610

$11.65

41

Exhaust Manifold

420673131

$289.99

42

Cylinder Sleeve

420923443

Unavailable

43

Gasket Set, Engine

420893070

$216.99

44

Gasket Set, Cylinder

420893075

$174.49

B

Loctite 243, 10 ml

293800060

$21.49

M

Molykote G-N, 50 g

420297433

$26.99

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
