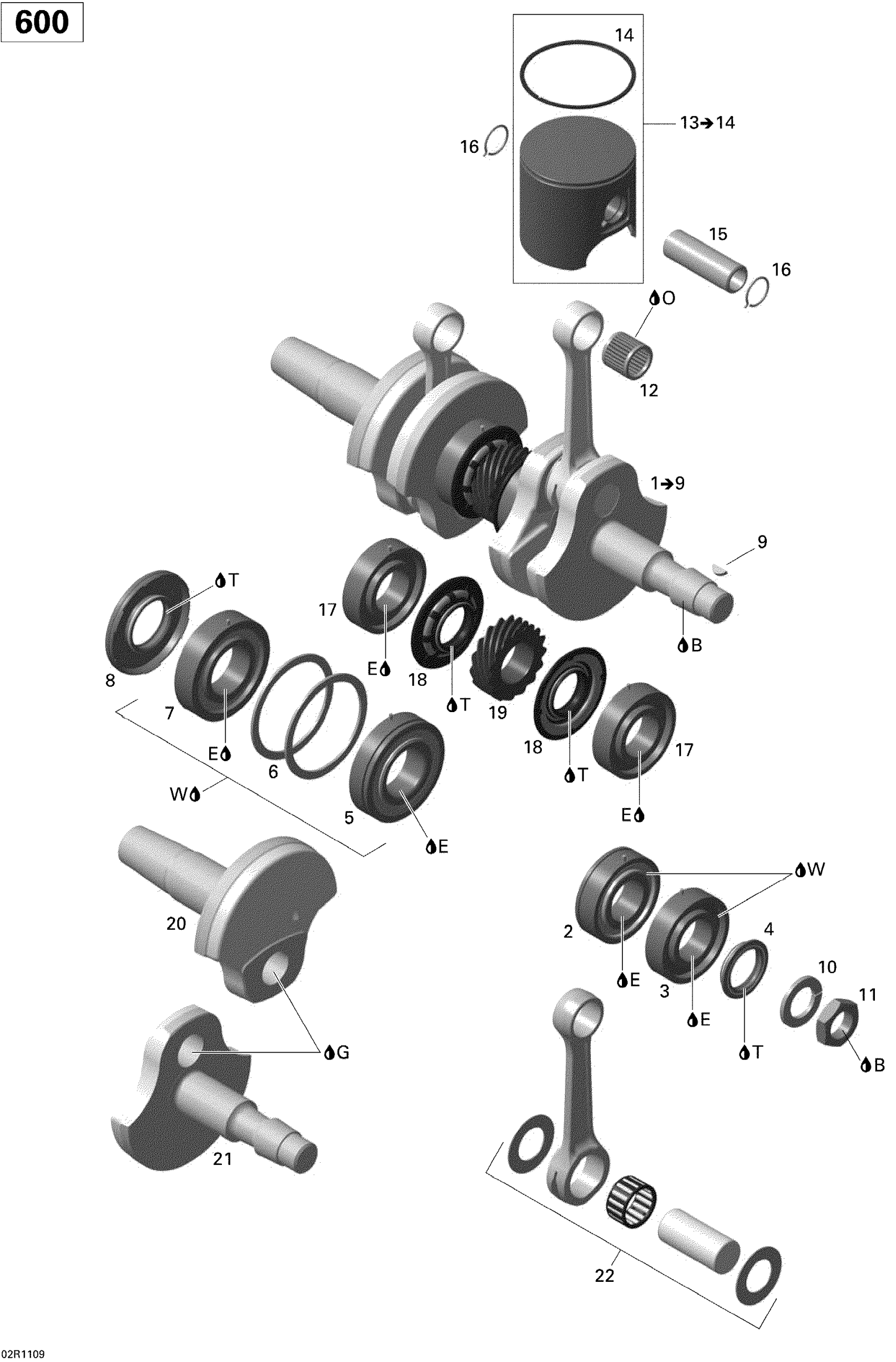

Ski-Doo Grand Touring Sport 600 XP, 2011 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

2

Ball Bearing

420832596

$97.49

3

Ball Bearing 6206

420832590

$48.49

4

Oil Seal

420931795

$17.63

5

Ball Bearing Sealed, 6207

420832673

$101.49

6

Retaining Disk

420927710

$7.41

7

Ball Bearing 6207 | With drive pin

420832575

$52.99

8

Oil Seal This part replaces 290831952.

420831952

$18.01

9

Woodruff Key

420246015

$3.17

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

Needle Bearing

420832445

$27.49

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

13

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

14

Semi-Trapez Ring, Standard

420815155

$51.99

14

Semi-Trapez Ring, 1st

420815156

$51.99

15

Piston Pin

420916412

$30.99

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6206

420832590

$48.49

18

Oil Seal | Included in gasket kit

420931940

$30.49

19

Central Gear, 15 Teeth

420834350

$104.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420890973

$313.99

22

Rod Repair Kit, PTO Side

420890974

$313.99

B

Loctite 243, 10 ml

293800060

$21.49

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

G

Sealant Loctite 648

219703000

$45.99

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Petamo Grease, GHY133N, 400 g

420899271

$67.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
