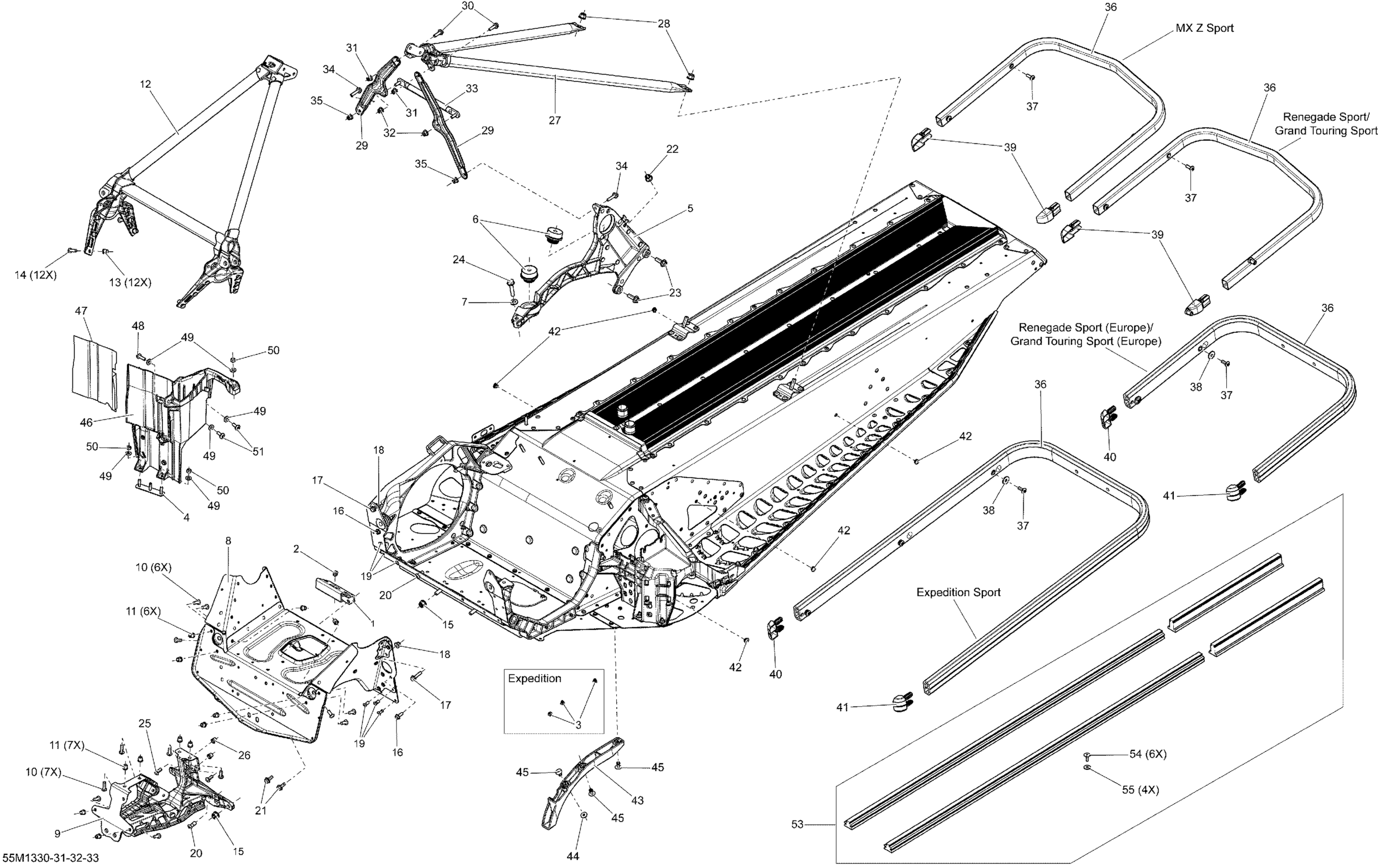

Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP, 2013 Frame And Components Diagram

#

Description
Price

1

Engine Support

518326178

$63.05

2

Hemlock Rivet, 6.4 mm

293150174

$6.43

3

Not Available As Spare Parts

XXX

Unavailable

4

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

5

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

6

Vibration Damper

512061516

$57.66

7

Conical Spring Washer M8

234281474

$1.25

8

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

9

Front Suspension Support

518327487

$267.66

10

Hex. Flange Screw M6 X 20

207662044

$1.66

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Front Member

518326970

$276.12

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Screw M6 X 20

207662044

$1.66

15

Hex. Flange Elastic Nut M8

233281414

$1.14

16

Hex. Flange Screw M6 X 16

210261650

$1.22

17

Hex. Flange Screw M6 X 25

207662544

$0.53

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Monobolt Rivet, 4.8 mm

293150191

$0.95

20

Monobolt Rivet 6.4

293150182

$2.91

21

Hex. Flange Screw M6 X 16

207661644

$0.61

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

24

Hex. Flange Screw, Scotch Grip

207584034

$2.06

25

Hex. Flange Screw M6 X 20

207662044

$1.66

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Rear Member

518326559

$244.58

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Upper Column Support

518326848

$13.06

30

Hex. Flange Screw M6 X 20

207662044

$1.66

31

Elastic Flange Nut M6 X 1.0

233261416

$1.74

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Center Column Support

518326355

$20.74

34

Hex. Flange Screw M6 X 25

207662544

$0.53

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Clear Rear Bumper

518324980

$96.89

36

Clear Rear Bumper | Sport

518325577

$109.97

37

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

38

Flat Washer

224061201

$1.11

39

Full Moon Cap

520000567

$8.62

40

Full Moon RH Cap

520000711

$8.60

41

Full Moon LH Cap

520000712

$8.60

42

Full Moon Dart 8 mm

293730041

$2.12

43

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

44

Washer

517124300

$0.16

45

Pop Rivet 3/16”

293150108

$1.23

46

Battery Support

518326472

$40.74

47

Heat Shield

514054755

$6.49

48

Hex. Flange Screw M6 X 20

210262040

$2.06

49

Flat Washer

250200039

$0.72

50

Elastic Stop Nut M6

232561414

$1.55

51

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

52

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

53

Pop Rivet 3/16”

293150108

$1.23

54

Washer

517124300

$0.16
