Description

Price

1

FRAME GTX LFF - Call your local BRP dealership

415129828

Unavailable

2

E-MODULE - Call your local BRP dealership | Includes 2 to 10

518327569

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Cushion

505073317

$8.66

10

Torx Truss Screw M6 X 12

250000767

$2.00

11a

Hex. Flange Screw M6 X 20

207662044

$2.00

11b

Hex. Flange Screw M6 X 16

207661644

$0.74

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

RH Reinforcement

518324874

$27.99

15

LH Reinforcement

518324875

$27.99

16

RH Deflector, Black Polypropylene

518325782

$13.99

17

LH Deflector, Black Polypropylene

518325783

$13.99

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20

RH Bracket | Sport

518328787

$79.99

21

LH Bracket | Sport

518328788

$79.99

22

RH Rear Base

518325973

$21.99

23

LH Rear Base | Includes 10v to 10x

518325974

$21.99

24

RH ROLLER - Call your local BRP dealership

518325377

$69.99

25

LH Roller

518325378

$76.99

26

Adhesive Patch

518325560

$4.69

27

Insert

293450275

$12.99

28

Seal

518326656

$9.19

29

Rear Radiator Ass'y, 137" | SPORT

518326641

$720.49

30

Stavex Rivet

293150144

$0.82

31

Rear Cap

518327105

$22.49

32

RH Support | LT

518326482

$9.19

33

LH Stirup

518326820

$37.99

34

Panel Nut M5 X 0.8

250000958

$4.23

35

Black, Plug

293730052

$9.19

36

U-Attach

518326961

$10.99

37

Ornit Rivet 6,5 X 14.5

293150266

$2.40

38

Tork Screw M6 X 16

250000534

$2.11

39

Hex. Flange Nut M6

233061414

$1.68

40

Support

518326960

$12.99

41

Tork Screw M6 X 18

250000536

$2.11

42

Flat Washer

250200039

$0.74

43

Attach | Includes 10n to 10p

518326986

$12.99

44

Elastic Stop Nut M6

232561414

$0.55

45

Torx Screw M8 X 55

250000535

$3.17

A

Avex Rivet

390909200

$0.30

B

Avex Rivet

390909100

$0.30

C

Stavex Rivet

293150144

$0.82

D

Henrob Rivet

293150146

$2.09

E

Hemlock Rivet, 6.4 mm

293150174

$7.86

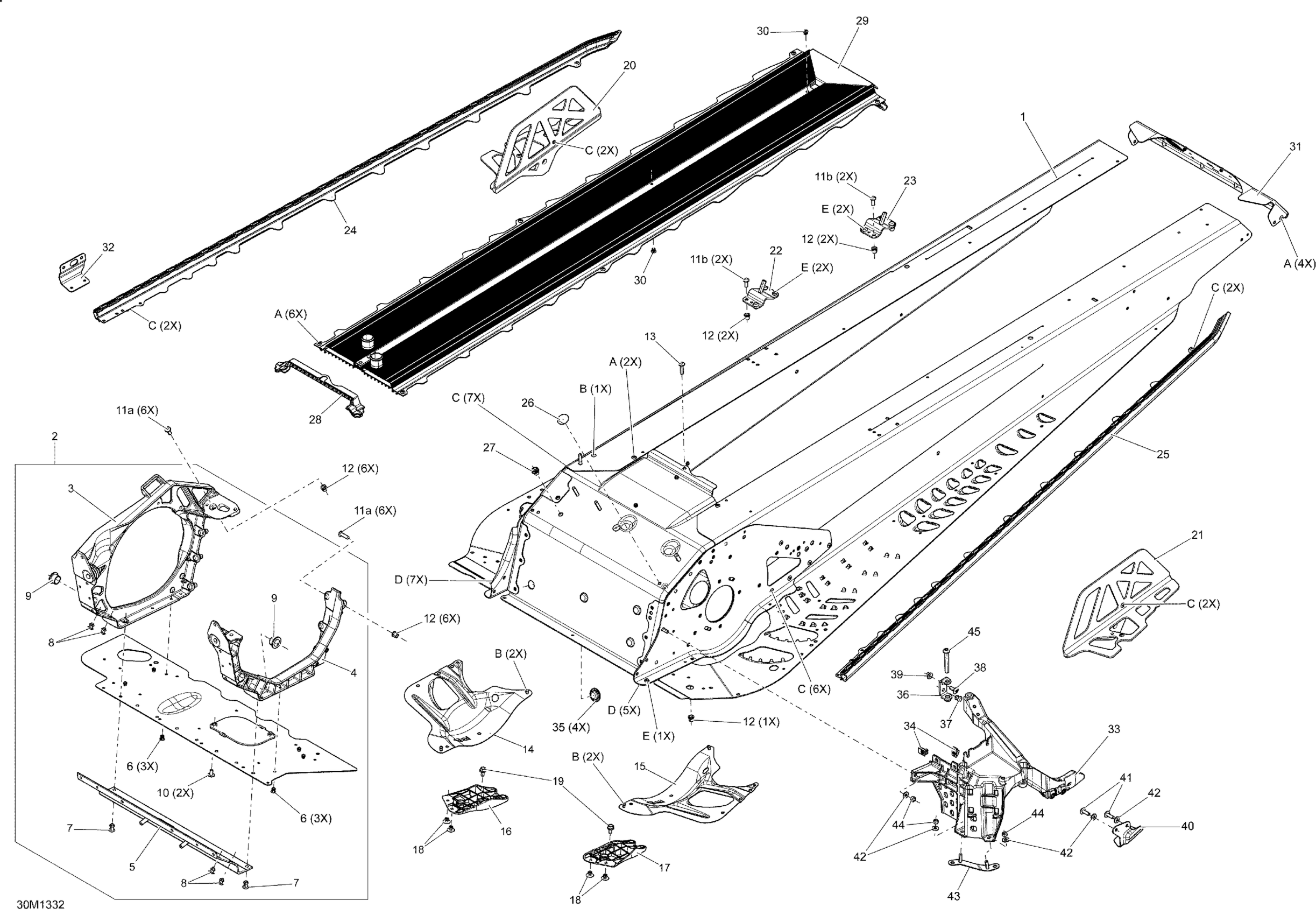

Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP, 2013 09- Frame Diagram

FRAME GTX LFF - Call your local BRP dealership

E-MODULE - Call your local BRP dealership | Includes 2 to 10

RH Side Member

LH Side Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Cushion

Torx Truss Screw M6 X 12

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

RH Bracket | Sport

LH Bracket | Sport

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller

Adhesive Patch

Insert

Seal

Rear Radiator Ass'y, 137" | SPORT

Stavex Rivet

Rear Cap

RH Support | LT

LH Stirup

Panel Nut M5 X 0.8

Black, Plug

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Hex. Flange Nut M6

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Elastic Stop Nut M6

Torx Screw M8 X 55

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm
