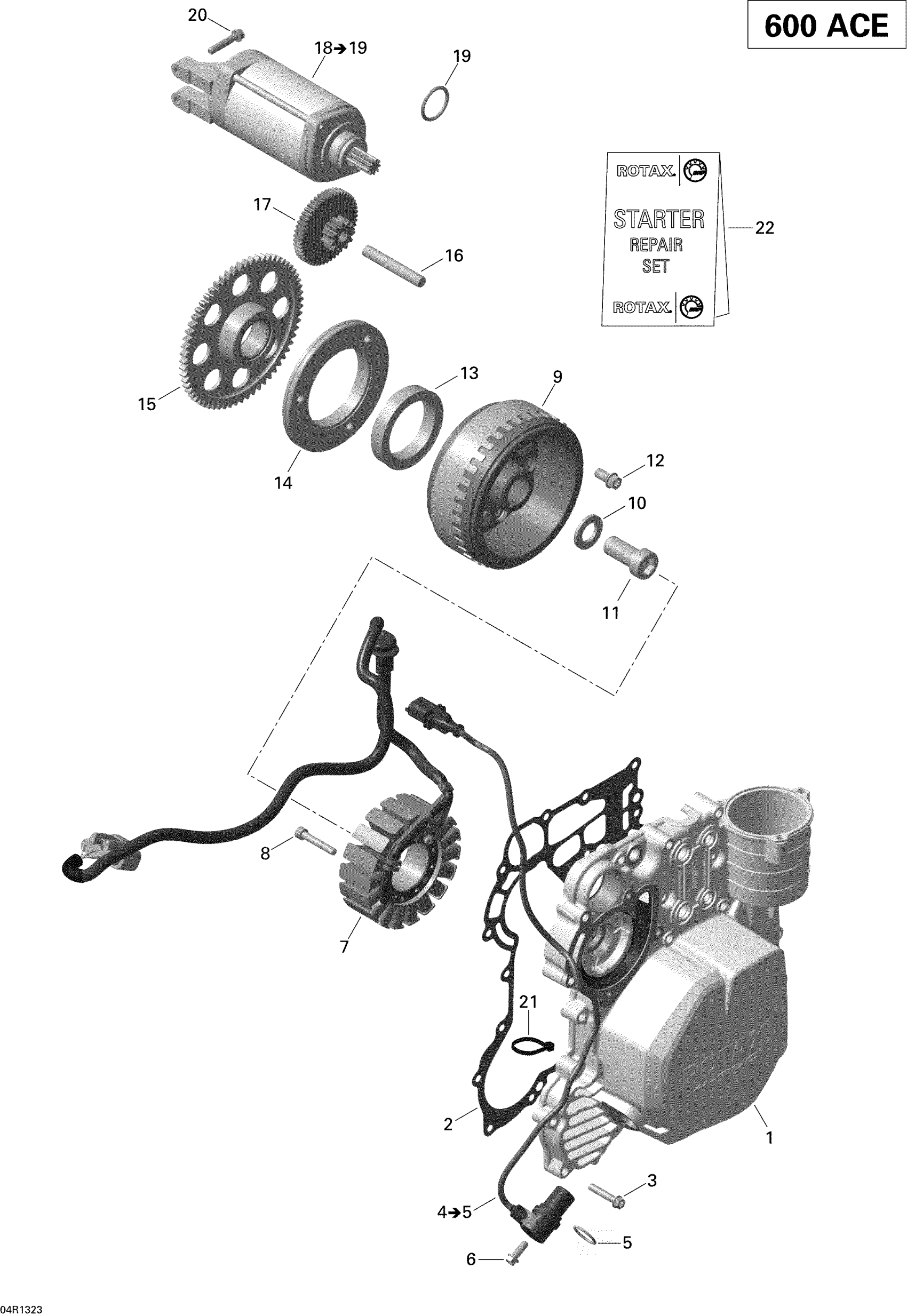

Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP, 2013 03- Magneto And Electric Starter 3 Diagram

Cover

420911052

$184.99

Gasket

420431640

$30.49

Torx Flange Screw M6 X 30

420440647

$2.00

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

Torx Flange Screw M6 X 16

420440162

$3.17

Stator Plate 650W

420685635

$319.49

Allen Screw M6 X 40

420241956

$3.17

Magneto Flywheel 650W

420686190

$547.99

Shim

420627270

$4.12

Socket Head Screw M16 X 35

420241549

$8.57

Torx Flange Screw M8 X 16

420440854

$4.44

Sprag Clutch

420659113

$259.99

Sparg Clutch Housing

420659263

$154.99

Free Wheel Gear, 64 Teeth

420434238

$114.99

Needle Pin

420229475

$14.83

Starter Double Gear 11/49 T

420634741

$199.99

Electric Starter Ass'y

420892435

$297.99

O-Ring

420250145

$10.33

Torx Flange Screw M6 X 30

420440647

$2.00

Tie Rap

420866714

$1.90

Carbon Brush Set This part replaces 420881140.

420881141

$67.99
