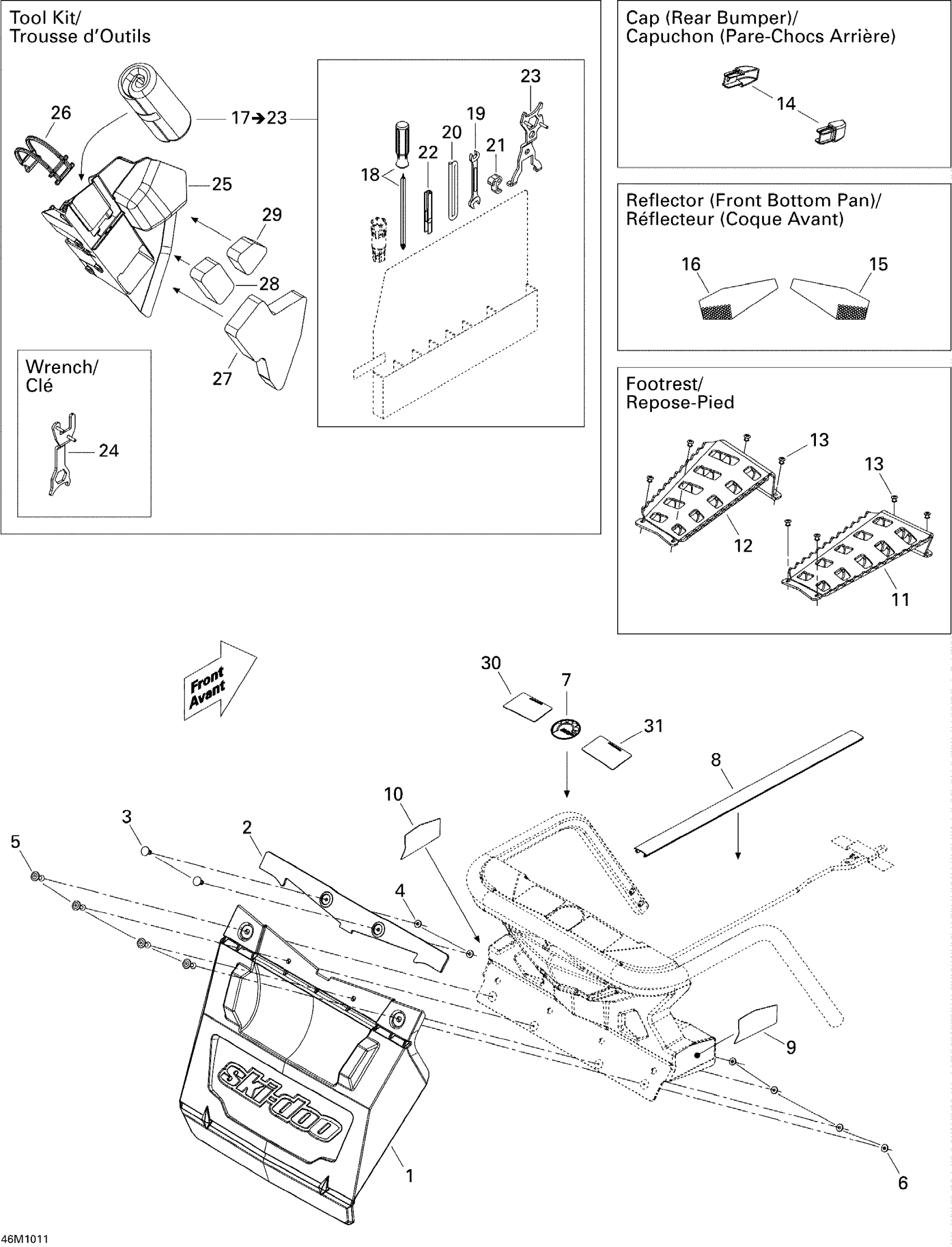

Ski-Doo Grand-Touring Sport 600, 2010 09- Utilities Diagram

#

Description
Price

1

Snow Guard

520000659

$84.99

2

ESTHETIC PLATE - Call your local BRP dealership

520000953

Unavailable

3

Pop Rivet 3/16”

293150108

$1.19

4

Washer

517124300

$0.19

5

Pop Rivet 3/16”

293150108

$1.19

6

Washer

517124300

$0.19

7

BRP Logo 48 mm

219903305

$19.99

8

Radiator Trim

520000829

$21.99

9

Red, RH Rear Reflector

520000881

$16.99

10

Red, LH Rear Reflector

520000880

$16.99

11

RH Footrest

520000887

$83.99

12

LH Footrest

520000888

$83.99

13

Pop Rivet 3/16"

390402200

$0.35

14

Full Moon Cap

520000567

$10.99

15

Yellow, RH Front Reflector

520000718

$15.99

16

Yellow, LH Front Reflector

520000719

$15.99

17

Tool Kit | Includes 20 To 28

529000065

$55.99

18

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Was 412500100 Rope-Starter

219704403

$158.99

21

Starter Grip

529000060

$14.15

22

Spacing Tool

529035501

$4.72

23

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

24

WRENCH - Call your local BRP dealership

520000721

Unavailable

25

Tool Kit Rack

520000842

$15.99

26

Latch

520000528

$7.69

27

Foam

520001059

$15.49

28

Foam

520001061

$12.99

29

Foam

520001062

$5.89

30

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003934

Unavailable

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516004298

Unavailable
