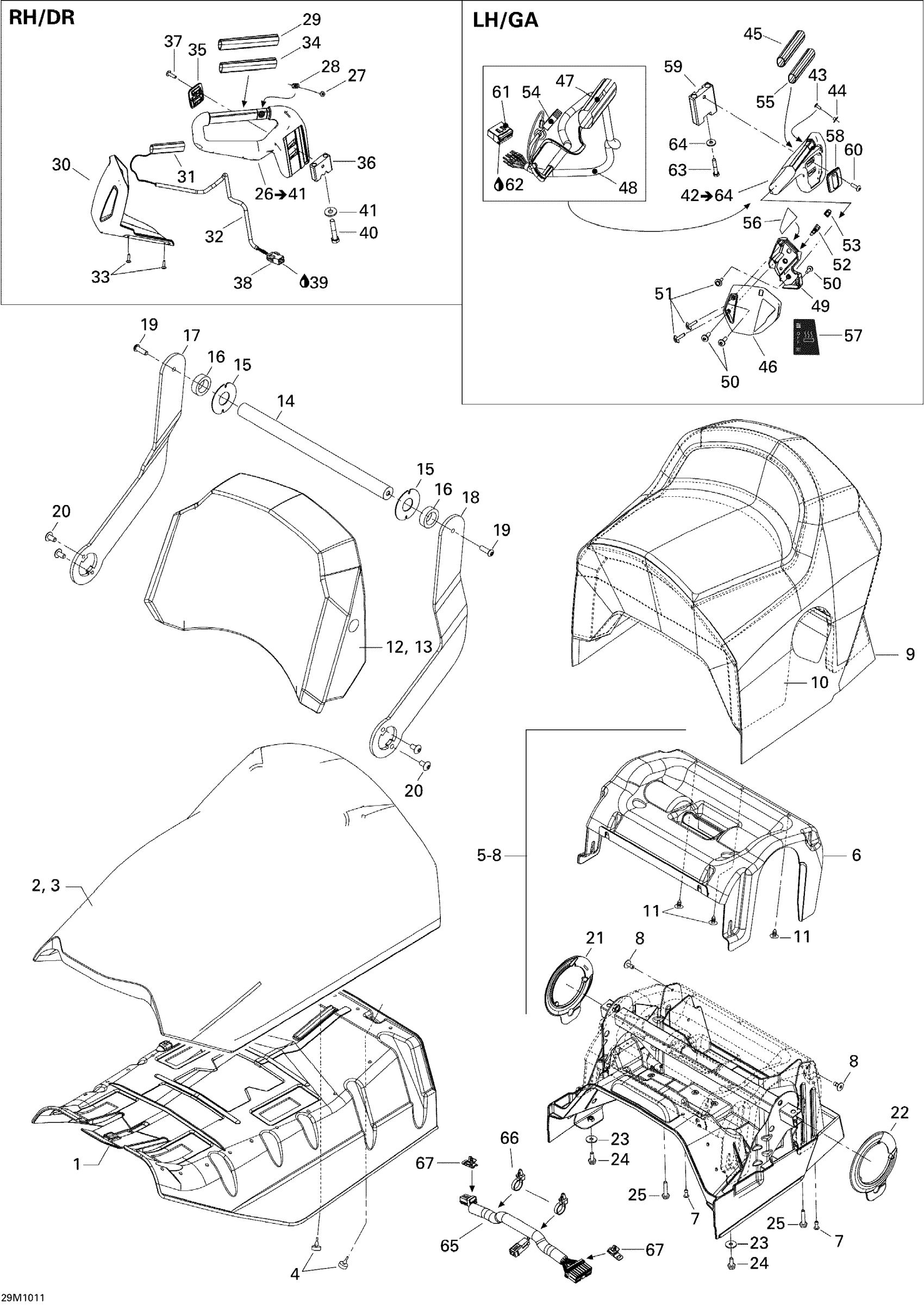

Ski-Doo Grand-Touring Sport 600, 2010 09- Seat Diagram

#

Description
Price

1

Front Seat Base

510004775

$93.99

2

Seat Cover

510005181

$219.99

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

5

Seat Base Ass'y | Includes 6 to 9

510005182

Unavailable

6

Foam Support

510004423

$38.99

7

Pop Rivet 3/16”

390410100

$0.57

8

Pop Rivet 3/16"

293150100

$1.09

9

Seat Cover

510005187

Unavailable

10

Rear Seat Foam

510004791

$294.99

11

Black, Dart

414644300

$0.98

12

Backrest Foam

510004782

$124.99

13

Backrest Cover | Not Shown

510005309

$176.99

14

Upper Backrest Axle

510004377

$44.99

15

Washer

510004379

$10.01

16

Rubber Shim

510004378

$10.99

17

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

18

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

19

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

20

Torx Truss Screw M8 X 16

250000746

$3.38

21

Spacer RH

510004883

Unavailable

22

SPACER LH - Call your local BRP dealership

510004884

Unavailable

23

Flat Washer

224061201

$1.37

24

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

25

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

26

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 26 to 41

510005246

Unavailable

27

Torx Truss Screw M6 X 16

250000721

$1.69

28

Nut Welded, M6

293100003

$9.12

29

Handle Grip

510004449

$12.49

30

RH Air Deflector

510005009

$28.99

31

Heated Element

515176999

$66.99

32

Was 515175506 Tubing

219704426

$142.99

33

Screw M4 X 16

250000725

$3.49

34

Handle Reinforcement

510005011

$19.99

35

Passenger Handle Trim

510006602

$13.99

36

HANDLE LINK - Call your local BRP dealership

510005218

Unavailable

37

Hex Torx Truss M8 X30

250000745

$3.17

38

Male Housing, 3 Circuits

515175494

$16.18

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Hex. Screw M8 X 45

207084544

$1.48

41

Yellow, Washer

503183200

$3.19

42

LH HANDLE ASS'Y - Call your local BRP dealership | Includes 42 to 64

510005247

Unavailable

43

Torx Truss Screw M6 X 16

250000721

$1.69

44

Nut Welded, M6

293100003

$9.12

45

Handle Grip

510004449

$12.49

46

LH Air Deflector

510005010

$28.99

47

Heated Element

515176999

$66.99

48

Was 515175506 Tubing

219704426

$142.99

49

Switch Housing

510005036

$18.49

50

Torx Screw K50 X 16

250000720

$1.69

51

Screw M4 X 16

250000725

$3.49

52

Rocker Switch

510004413

$8.79

53

Switch Protector

510004414

$7.99

54

Handle Harness

515176697

$29.99

55

Handle Reinforcement

510005011

$19.99

56

Connector Decal

516003937

$18.99

57

Heated Handle Decal

516003816

$13.49

58

Passenger Handle Trim

510006602

$13.99

59

HANDLE LINK - Call your local BRP dealership

510005218

Unavailable

60

Hex Torx Truss M8 X30

250000745

$3.17

61

Male Connector

515176033

$17.68

62

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

63

Hex. Screw M8 X 45

207084544

$1.48

64

Yellow, Washer

503183200

$3.19

65

Seat Harness

515176766

$40.99

66

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

67

Housing Support

515175283

$9.19
