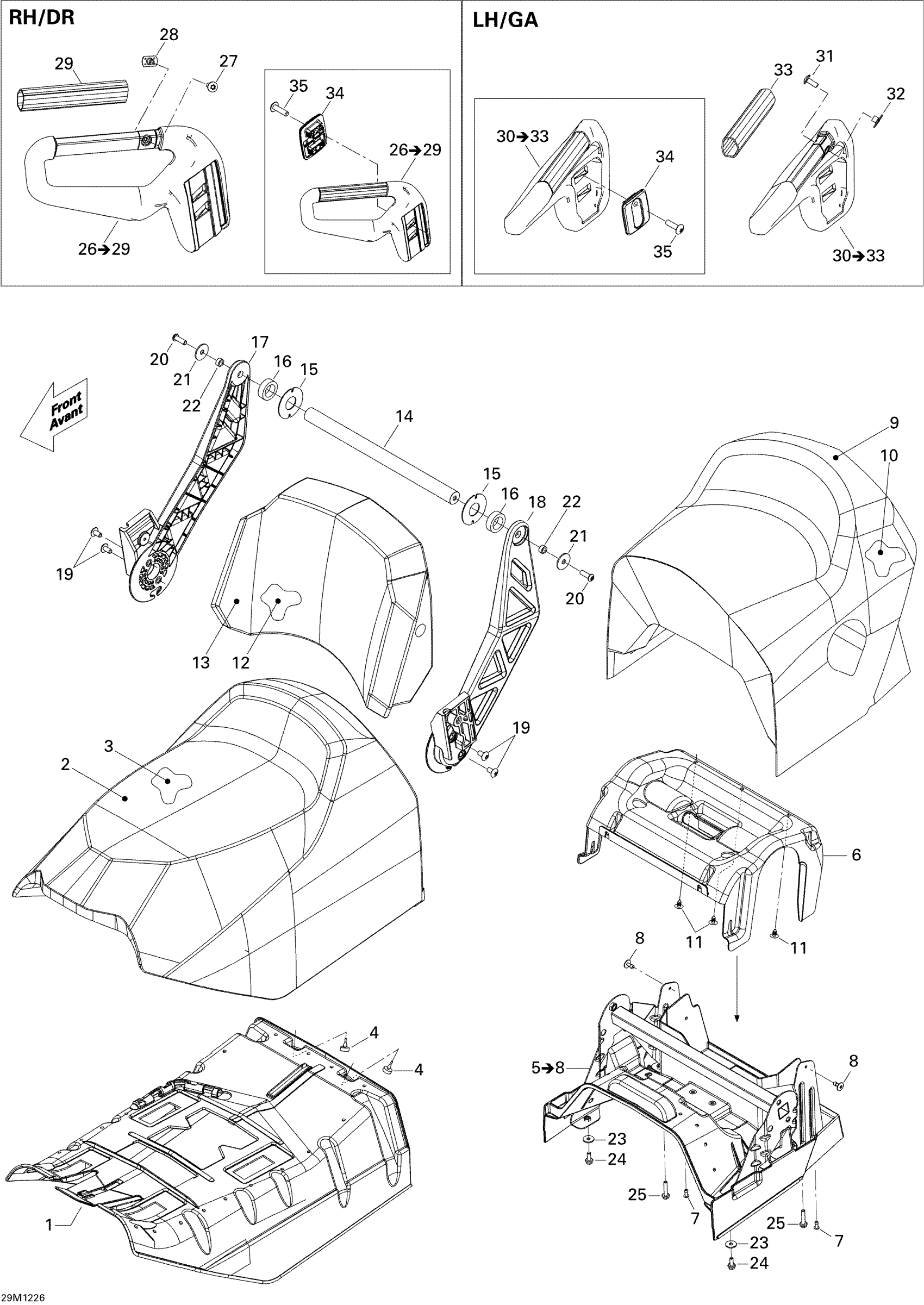

Ski-Doo Grand Touring Sport 550F XP-FAN, 2012 09- Seat Diagram

#

Description
Price

1

Front Seat Base

510004775

$93.99

2

Seat Cover

510005181

$219.99

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

5

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

6

Foam Support

510004423

$38.99

7

Pop Rivet 3/16”

390410100

$0.57

8

Pop Rivet 3/16"

293150100

$1.09

9

Rear Seat Cover

510005399

$230.99

10

Rear Seat Foam

510004791

$294.99

11

Black, Dart

414644300

$0.98

12

Backrest Foam

510004782

$124.99

13

Backrest Cover | Not Shown

510005309

$176.99

14

Upper Backrest Axle

510004377

$44.99

15

Washer

510004379

$10.01

16

Rubber Shim

510004378

$10.99

17

RH Arm, Black

510005539

$28.99

18

LH Arm, Black

510005538

$28.99

19

Hex Torx Truss M8 X30

250000745

$3.17

20

Hex Torx Truss M8 X30

250000745

$3.17

21

Flat Washer 8 mm

250200128

$4.44

22

Spacer

271000558

$8.89

23

Flat Washer

224061201

$1.37

24

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

25

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

26

RH Handle Ass'y | Includes 140 to 140,02

510005851

$285.99

27

Torx Truss Screw M6 X 16

250000721

$1.69

28

Nut Welded, M6

293100003

$9.12

29

Handle Grip

510004449

$12.49

30

LH Handle Ass'y | Includes 150a to 150a4

510006713

$285.99

31

Torx Truss Screw M6 X 16

250000721

$1.69

32

Nut Welded, M6

293100003

$9.12

33

Handle Grip

510004449

$12.49

34

Passenger Handle Trim

510006602

$13.99

35

Hex Torx Truss M8 X30

250000745

$3.17
