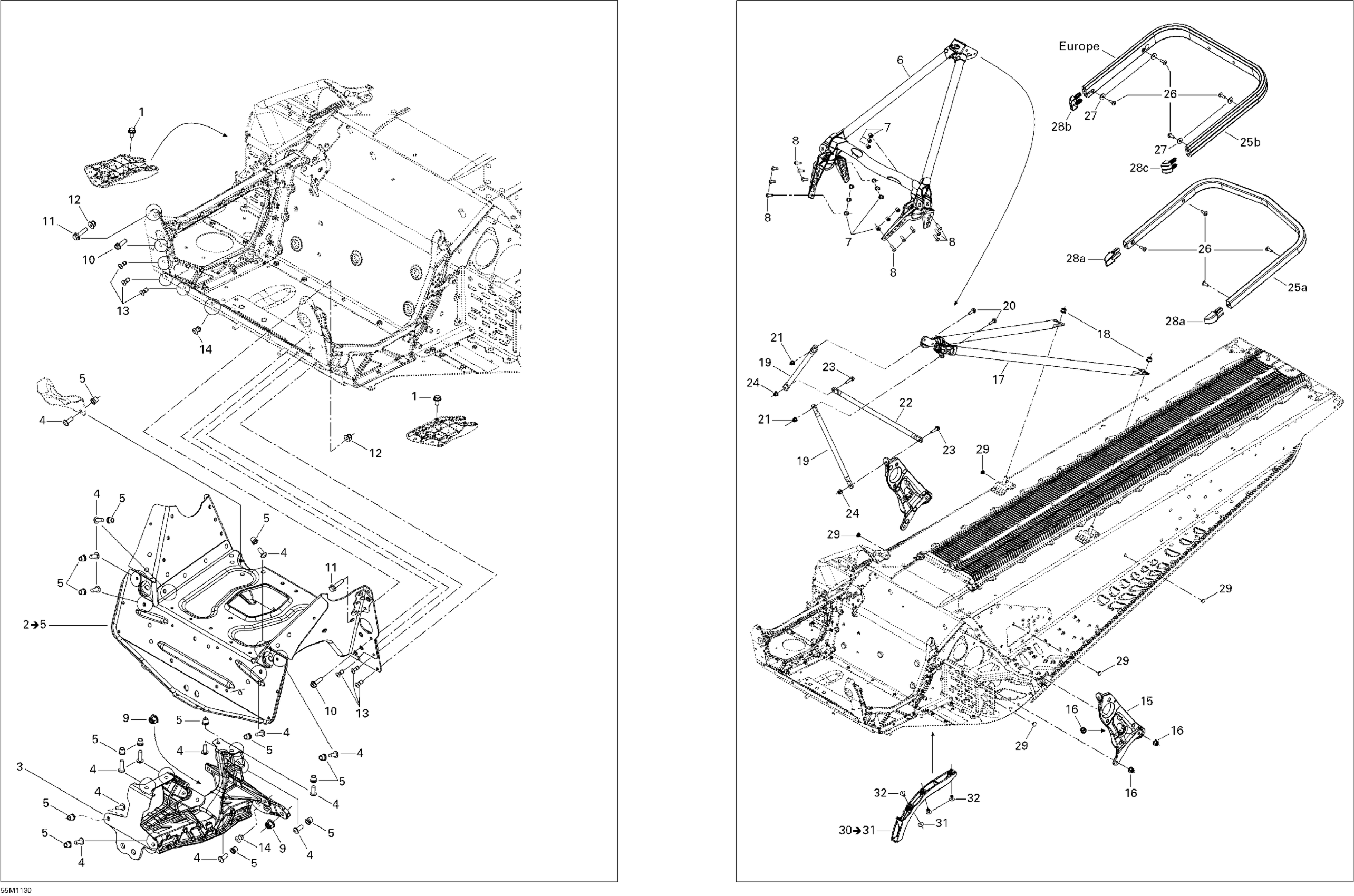

Ski-Doo Grand Touring Sport 550F XP-FAN, 2011 Frame and Components Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

2

CROSS MEMBER S MODULE - Call your local BRP dealership

518327737

Unavailable

3

Front Suspension Support

518327487

$259.67

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Front Member

518326975

$344.75

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Hex. Flange Screw M6 X 20

207662044

$1.66

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

Hex. Flange Screw M6 X 16

210261650

$1.22

11

Hex. Flange Screw M6 X 25

207662544

$0.53

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Monobolt Rivet, 4.8 mm

293150191

$0.93

14

Monobolt Rivet 6.4

293150182

$2.82

15

Pulley Support

518328346

$114.15

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Rear Member

518326559

$237.28

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

Upper Lateral Column Support

518325114

$20.12

20

Hex. Flange Screw M6 X 20

207662044

$1.66

21

Elastic Flange Nut M6 X 1.0

233261416

$1.74

22

Center Column Support

518325115

$20.12

23

Hex. Flange Screw M6 X 25

207662544

$0.53

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25a

Clear Rear Bumper

518324980

$94.00

25b

Clear Rear Bumper | Sport

518325577

$106.69

26

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

27

Flat Washer

224061201

$1.11

28a

Full Moon Cap

520000567

$8.36

28b

Full Moon RH Cap

520000711

$8.34

28c

Full Moon LH Cap

520000712

$8.34

29

Full Moon Dart 8 mm

293730041

$2.06

30

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

31

Washer

517124300

$0.16

32

Pop Rivet 3/16”

293150108

$1.19
