Description

Price

1

FRAME ASS'Y - Call your local BRP dealership

415129874

Unavailable

2

E Module | Includes 10ap to 10ay

518327568

$509.99

3

RH Member

518326795

$284.99

4

LH Member

518325558

$249.99

5

Front Member | Includes 10as to 10at

518325818

$58.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

10

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

11a

Hex. Flange Screw M6 X 20

207662044

$2.00

11b

Hex. Flange Screw M6 X 16

207661644

$0.74

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

RH Reinforcement

518324874

$27.99

15

LH Reinforcement

518324875

$27.99

16

RH Deflector, Black Polypropylene

518325782

$13.99

17

LH Deflector, Black Polypropylene

518325783

$13.99

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

20

RH Bracket | Sport

518328787

$79.99

21

LH Bracket | Sport

518328788

$79.99

22

RH Rear Base

518325973

$21.99

23

LH Rear Base | Includes 10v to 10x

518325974

$21.99

24

RH ROLLER - Call your local BRP dealership

518325377

$69.99

25

LH Roller

518325378

$76.99

26

Seal

518326656

$9.19

27

RH Engine Support

518325559

$19.49

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

Rear Cap

518327105

$22.49

30

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

31

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

32

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

33

Full Moon Dart 5 mm

293730042

$2.21

34

Insert M5 X 0.8

293450268

$2.09

35

Black, Plug

293730052

$9.19

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

G

Monobolt Rivet, 4.8 mm

293150191

$0.99

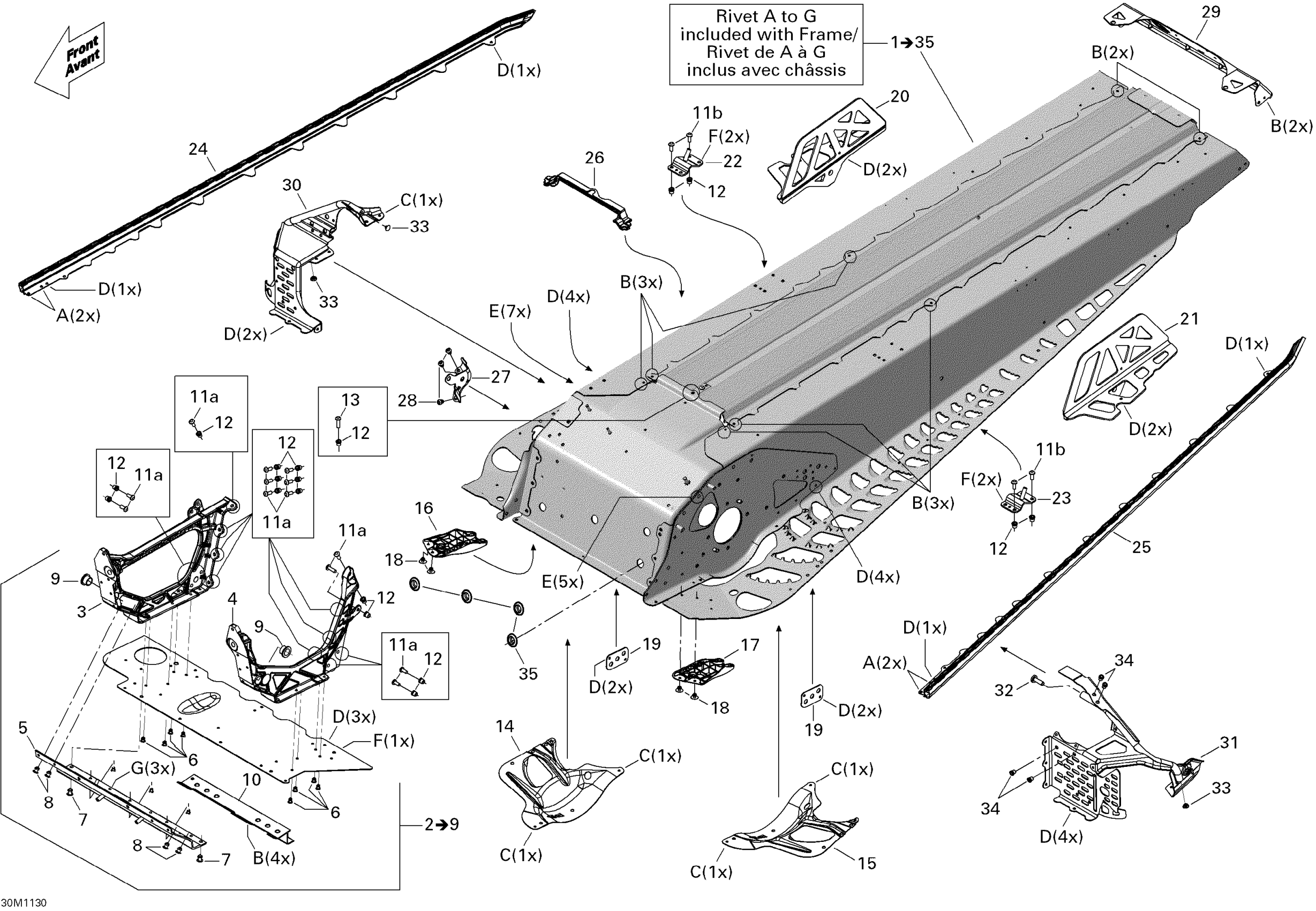

Ski-Doo Grand Touring Sport 550F XP-FAN, 2011 09- Frame Diagram

FRAME ASS'Y - Call your local BRP dealership

E Module | Includes 10ap to 10ay

RH Member

LH Member

Front Member | Includes 10as to 10at

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

ENGINE SUPPORT - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

REINFORCEMENT PLATE - Call your local BRP dealership

RH Bracket | Sport

LH Bracket | Sport

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller

Seal

RH Engine Support

Hemlock Rivet, 6.5 mm

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH STIRUP - Call your local BRP dealership

Torx Screw M8 X 1.25 X 25, Scotch Grip

Full Moon Dart 5 mm

Insert M5 X 0.8

Black, Plug

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm

Monobolt Rivet, 4.8 mm
