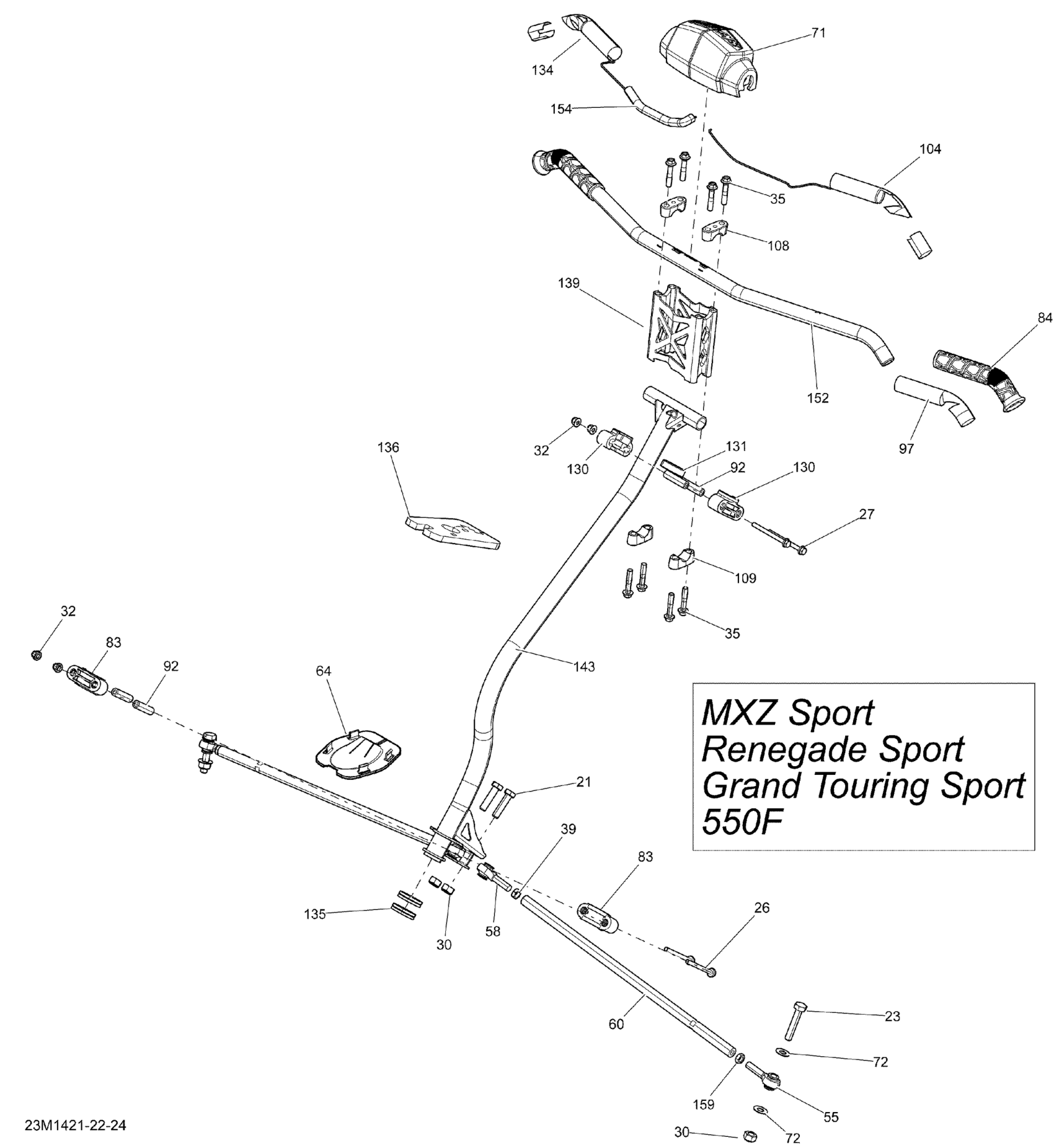

Ski-Doo GRAND TOURING SPORT 550F XP, 2014 07- Steering Diagram

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

Hex Screw M10 X 1.5 X 55

207005554

$7.51

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Locking Nut M10

233601466

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M8 X 40

250000352

$3.38

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152019

$41.49

LH Thread Ball Joint

506152081

$41.49

Tie-Rod Ass'y

506152496

$62.49

Plate

506152163

$12.99

Steering Pad

506152192

$58.99

Washer

506152582

$4.55

Lower Half-Housing

506152217

$7.62

Grip

506152486

$16.34

Housing Bushing

506152297

$12.99

Isolant

506152611

$10.99

Heating Element 20 WATT

506152578

$56.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Upper Half-Housing

506152508

$9.23

Upper Anti-Vibration Gasket

506152509

$4.79

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152579

Unavailable

Lower Vibration Ring

506152518

$4.79

Bushing

506152521

$15.79

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

Steering Column

506152963

$309.99

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

RH Threaded Hex. Jam Nut M10

732610010

$0.74
