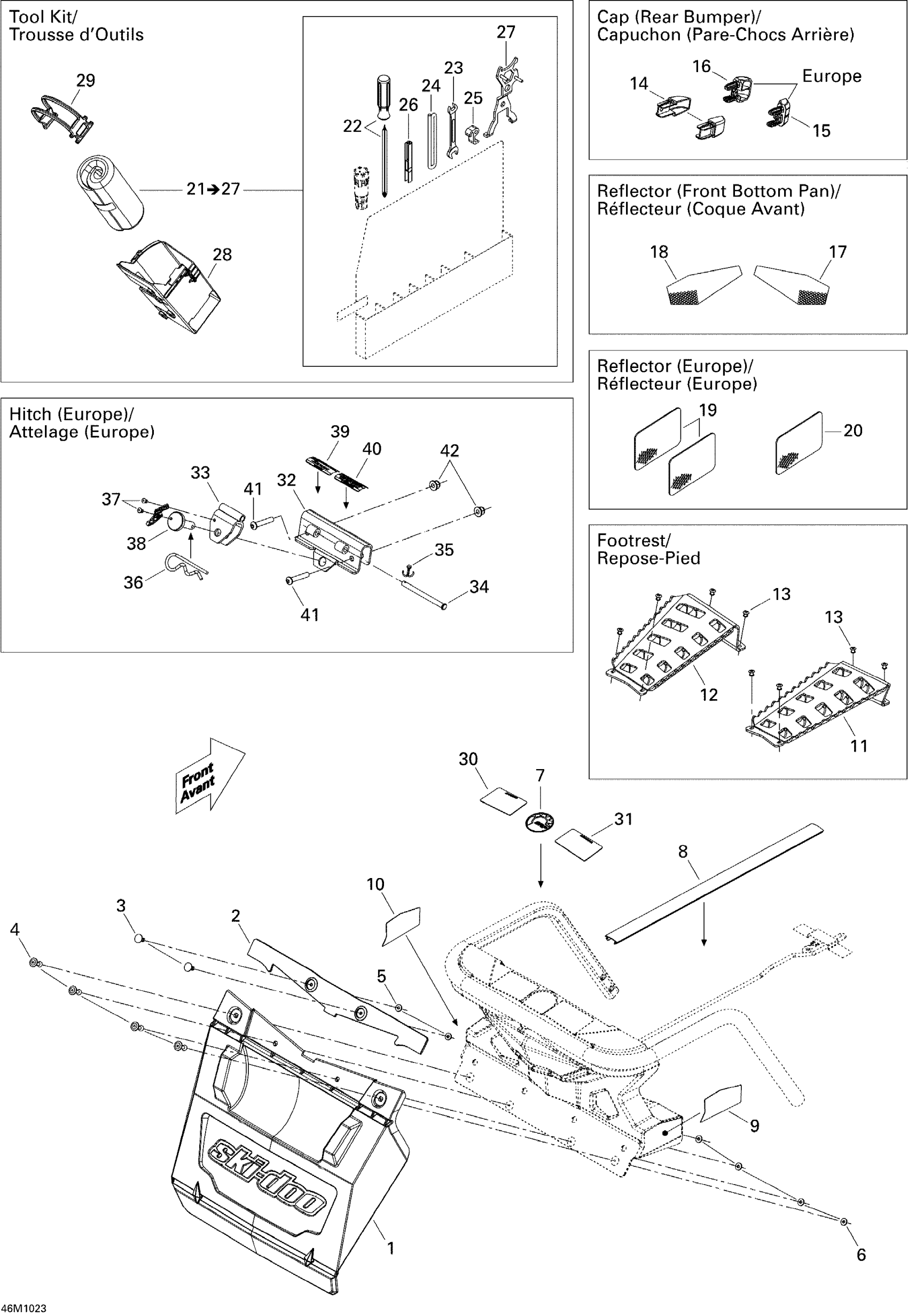

Ski-Doo Grand-Touring Sport 550F, 2010 Utilities Diagram

#

Description
Price

1

Snow Guard

520000659

$86.54

2

ESTHETIC PLATE - Call your local BRP dealership

520000953

Unavailable

3

Pop Rivet 3/16”

293150108

$1.19

4

Pop Rivet 3/16”

293150108

$1.19

5

Washer

517124300

$0.18

6

Washer

517124300

$0.18

7

BRP Logo 48 mm

219903305

$16.39

8

Radiator Trim

520000829

$20.12

9

Red, RH Rear Reflector

520000881

$12.99

9

Yellow, RH Rear Reflector

520000883

$12.99

10

Red, LH Rear Reflector

520000880

$12.99

10

Yellow, LH Rear Reflector

520000882

$12.99

11

RH Footrest

520000887

$76.09

12

LH Footrest

520000888

$76.09

13

Pop Rivet 3/16"

390402200

$0.30

14

Full Moon Cap

520000567

$8.36

15

Full Moon RH Cap

520000711

$8.34

16

Full Moon LH Cap

520000712

$8.34

17

Yellow, RH Front Reflector

520000718

$12.15

18

Yellow, LH Front Reflector

520000719

$12.15

19

Amber, Reflector

520000271

$18.63

20

White, Reflector

415037900

$18.63

21

Tool Kit | Includes 20 To 28

529000065

$57.99

22

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$9.85

25

Starter Grip

529000060

$11.06

26

Spacing Tool

529035501

$4.79

27

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$6.40

30

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003934

Unavailable

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516004298

Unavailable

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership | Europe

516004293

Unavailable

32

Support

511000554

$17.88

33

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

34

Lock Pin

511001451

$8.31

35

Cotter Pin

371800200

$0.49

36

Hair Pin

114045200

$10.37

37

Pop Rivet 5/32” | Model Europe

390404300

$0.30

38

Pin

511000555

$17.88

39

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

40

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

41

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

42

Hex. Flange Elastic Nut M8

233281414

$1.31
