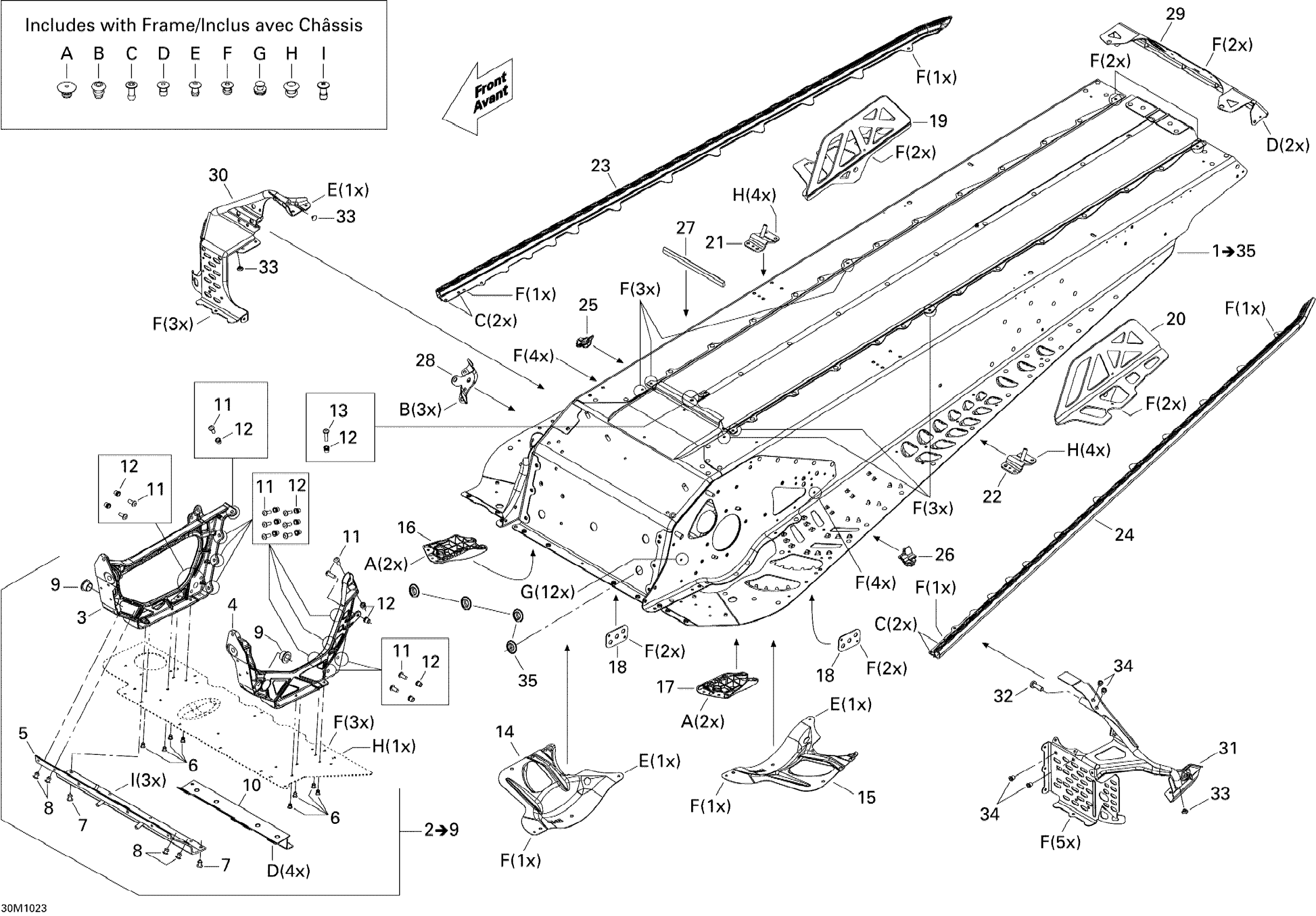

Ski-Doo Grand-Touring Sport 550F, 2010 09- Frame Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership

415129874

Unavailable

2

E Module | Includes 10ap to 10ay

518327568

$509.99

3

RH Member

518326795

$284.99

4

LH Member

518325558

$249.99

5

Front Member | Includes 10as to 10at

518325818

$58.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

10

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

RH Reinforcement

518324874

$27.99

15

LH Reinforcement

518324875

$27.99

16

RH Deflector, Black Polypropylene

518325782

$13.99

17

LH Deflector, Black Polypropylene

518325783

$13.99

18

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

19

RH Bracket | Sport

518328787

$79.99

20

LH Bracket | Sport

518328788

$79.99

21

RH Rear Base

518325973

$21.99

22

LH Rear Base | Includes 10v to 10x

518325974

$21.99

23

RH ROLLER - Call your local BRP dealership

518325377

$69.99

24

LH Roller

518325378

$76.99

25

RH SEAL - Call your local BRP dealership

518325653

Unavailable

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

28

RH Engine Support

518325559

$19.49

29

Rear Cap

518327105

$22.49

30

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

31

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

32

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

33

Full Moon Dart 5 mm

293730042

$2.21

34

Insert M5 X 0.8

293450268

$2.09

35

Black, Plug

293730052

$9.19

A

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

B

Hemlock Rivet, 6.5 mm

293150096

$3.27

C

Pop Rivet 3/16"

390402300

$0.75

D

Avex Rivet

390909200

$0.30

E

Avex Rivet

390909100

$0.30

F

Stavex Rivet

293150144

$0.82

G

Henrob Rivet

293150146

$2.09

H

Hemlock Rivet, 6.4 mm

293150174

$7.86

I

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable
