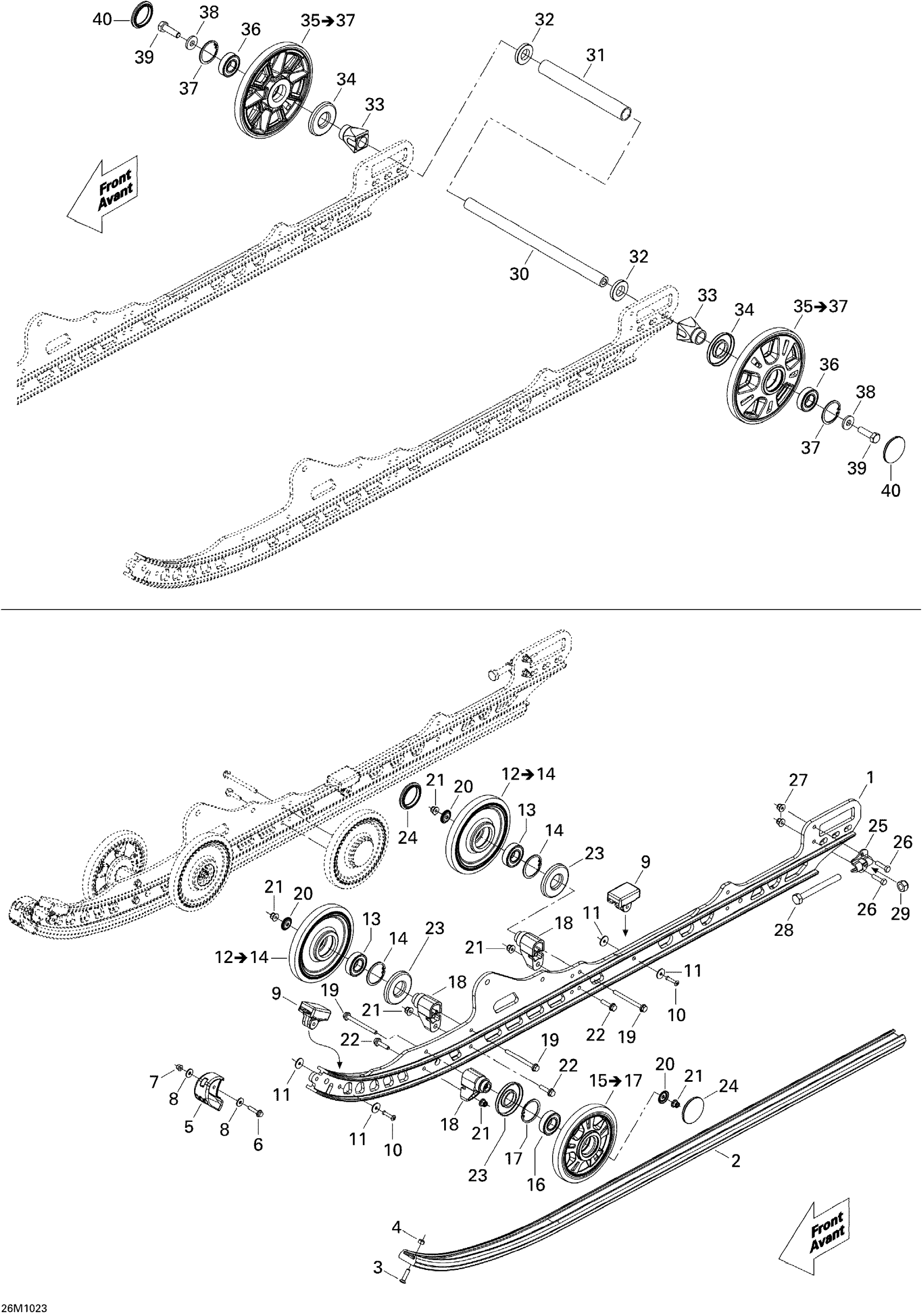

Ski-Doo Grand-Touring Sport 550F, 2010 Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192738

Unavailable

2

Slider 137

503191619

$32.06

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$9.90

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Pop Rivet 3/16"

293150142

$2.04

11

Washer

503191273

$1.03

12

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

13

Ball Bearing | Package-STD

503190396

$7.12

14

Retaining Ring

415129371

$8.66

15

Full Moon Wheel Ass'y, 147 mm

503191624

$44.75

16

Retaining Ring

415129371

$8.66

17

Ball Bearing | Package-STD

503190396

$7.12

18

Casted Support

503193894

$12.37

19

Hex. Flange Screw M6 X 70

207667056

$3.61

20

Wheel Cup M6

503191820

$4.52

21

Elastic Flange Nut M6 X 1.0

233261416

$1.74

22

Hex. Flange Screw M6 X 25

207662544

$0.53

23

Labyrinth Seal

503190434

$4.16

24

Wheel Cap

570063600

$3.18

25

Tensioner

503192583

$5.67

26

Hex. Screw M6 X 25

207162544

$1.01

27

Elastic Flange Nut M6 X 1.0

233261416

$1.74

28

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

29

Elastic Locking Nut M10 X 1.5

233601416

$1.63

30

Rear Axle

503190429

$58.18

31

Spacer

503191108

$14.90

32

Washer

503190432

$12.15

33

Rear Wheel Spacer

503190428

$5.88

34

Labyrinth Seal

503190434

$4.16

35

Full Moon Wheel Ass'y, 180 mm

503191627

$48.48

36

Ball Bearing | Package-STD

503190396

$7.12

37

Retaining Ring

415129371

$8.66

38

Washer

503190439

$5.64

39

Hex. Screw With Nylon

250000019

$1.42

40

Wheel Cap

570063600

$3.18
