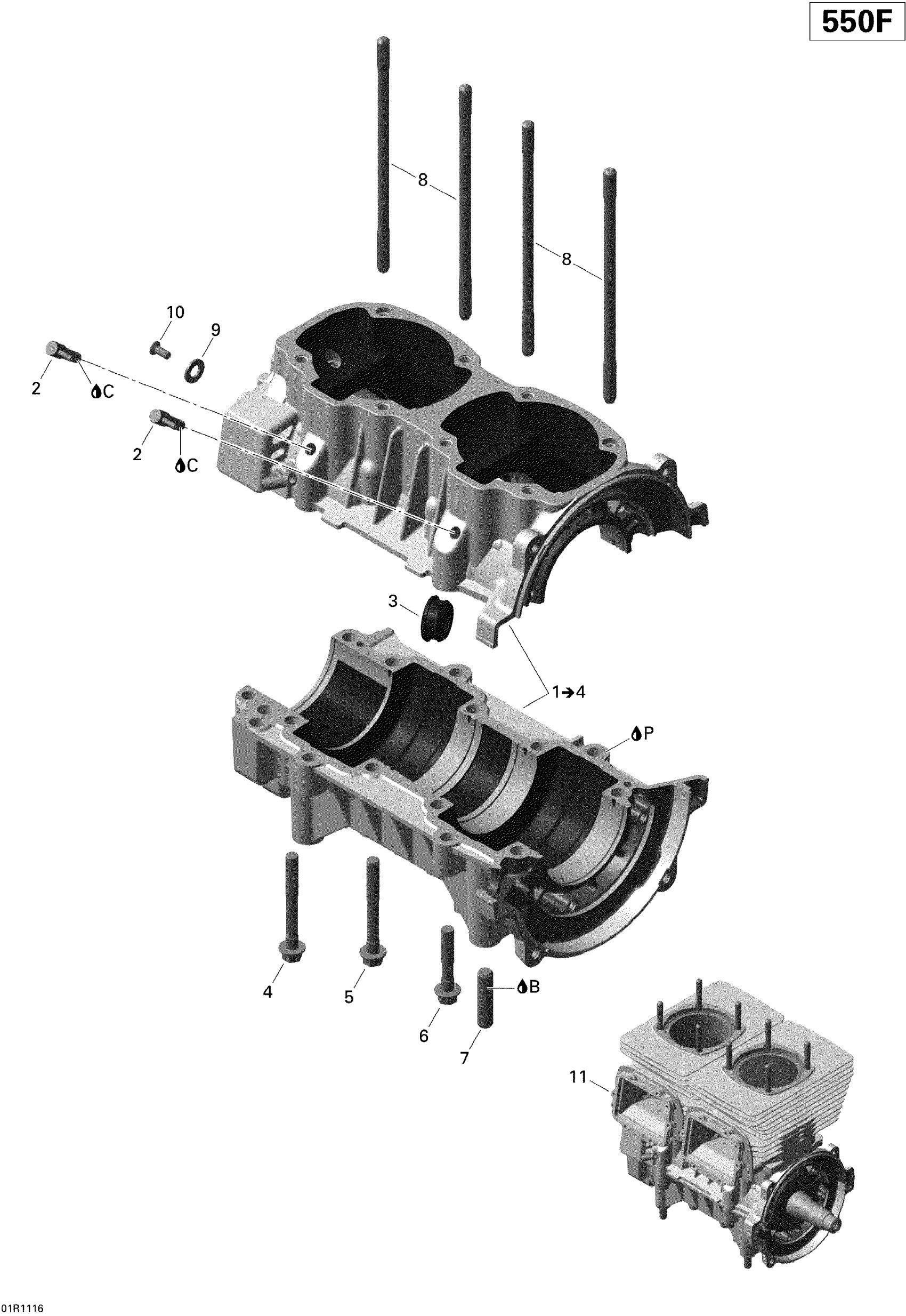

Ski-Doo Grand-Touring Sport 550F, 2010 Crankcase Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$769.99

2

Check Valve

420956511

$28.57

3

Cable Grommet

420860962

$11.52

4

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

5

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

6

Hex. Collar Screw M8 x 45

420640432

$1.94

7

Stud M10 X 45

420840266

$11.52

8

Stud M8 X 173.5

420840556

$15.35

9

Flat Washer 8.4 mm

420250315

$1.09

10

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.05

11

Short Block 552 XP

420055208

$1,979.99

10

Short Block 552 XP

420055208

$1,979.99

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

P

Loctite 5910, 300 ml

293800081

$57.99
