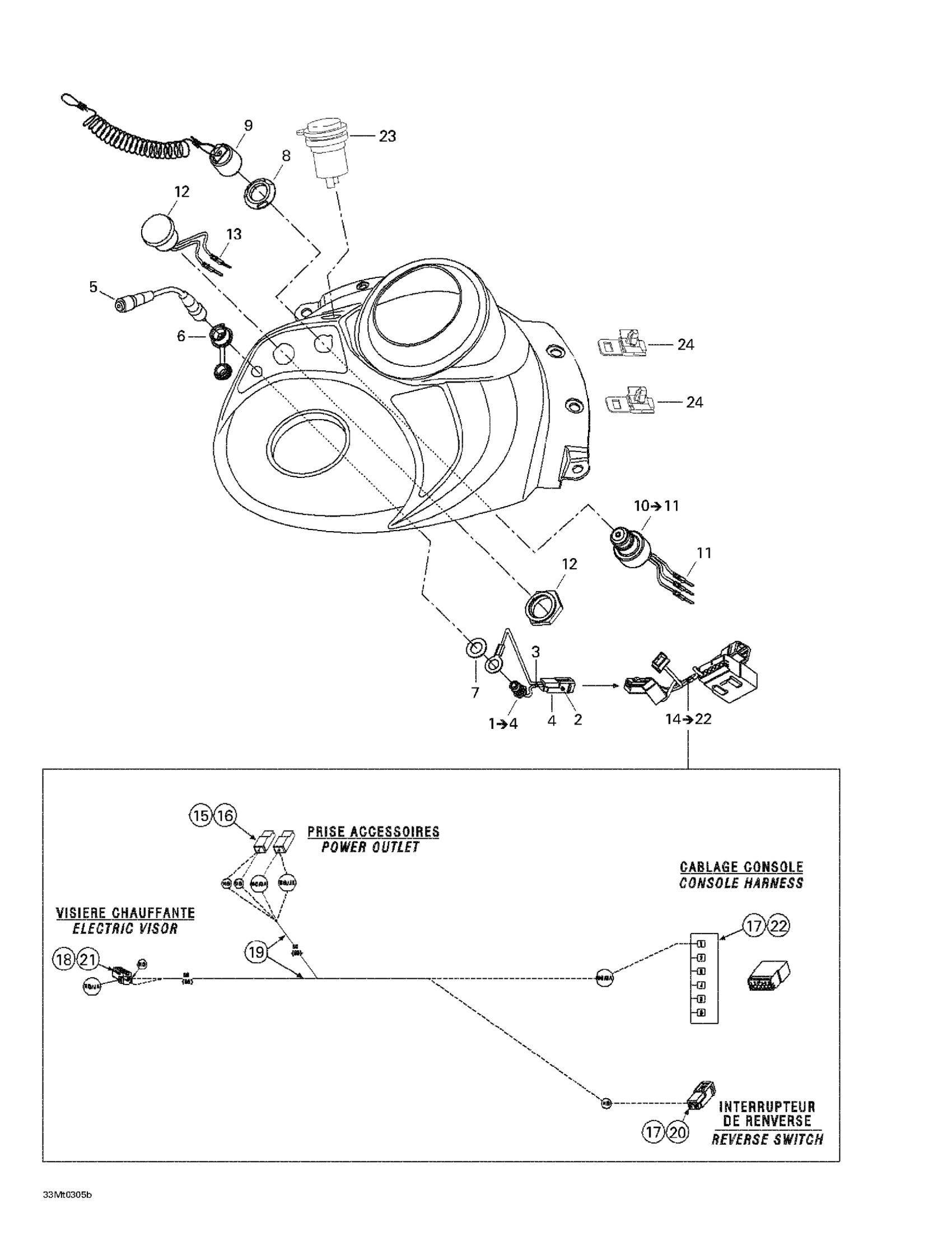

Ski-Doo Grand Touring SE 800 SDI, 2003 10- Electrical System - Console Diagram

#

Description
Price

1

Visor Harness

515177837

$33.99

2

Male Terminal

515175232

$1.58

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

4

Male Terminal Housing, 2 Circuits

515175654

$9.12

5

EXTENSION - Call your local BRP dealership

515175971

Unavailable

6

Cap

572103300

$10.49

7

Washer

503175800

$3.28

8

Safety Nut (DESS Switch)

278002963

$3.28

9

DESS

515178284

$84.99

10

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

11

Male Terminal

515175232

$1.58

12

Reverse Knob

515175952

Unavailable

13

Male Terminal

515175232

$1.58

14

Console Harness | Includes 14 - 22.

515175613

Unavailable

15

Female Terminal

409010100

$5.61

16

Female Terminal Housing, 1 Circuit

409010400

$7.62

17

Male Terminal

515175232

$1.58

18

Female Terminal

515175231

$4.39

19

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

20

Male Terminal Housing, 2 Circuits

515175654

$9.12

21

Female Housing, 2 Circuits

515175658

$16.18

22

Male Terminal Housing, 6 Circuits

515175662

$8.79

23

Outlet Power Kit, 12 Volts

861507200

$36.99

24

Housing Support

515175283

$9.19
