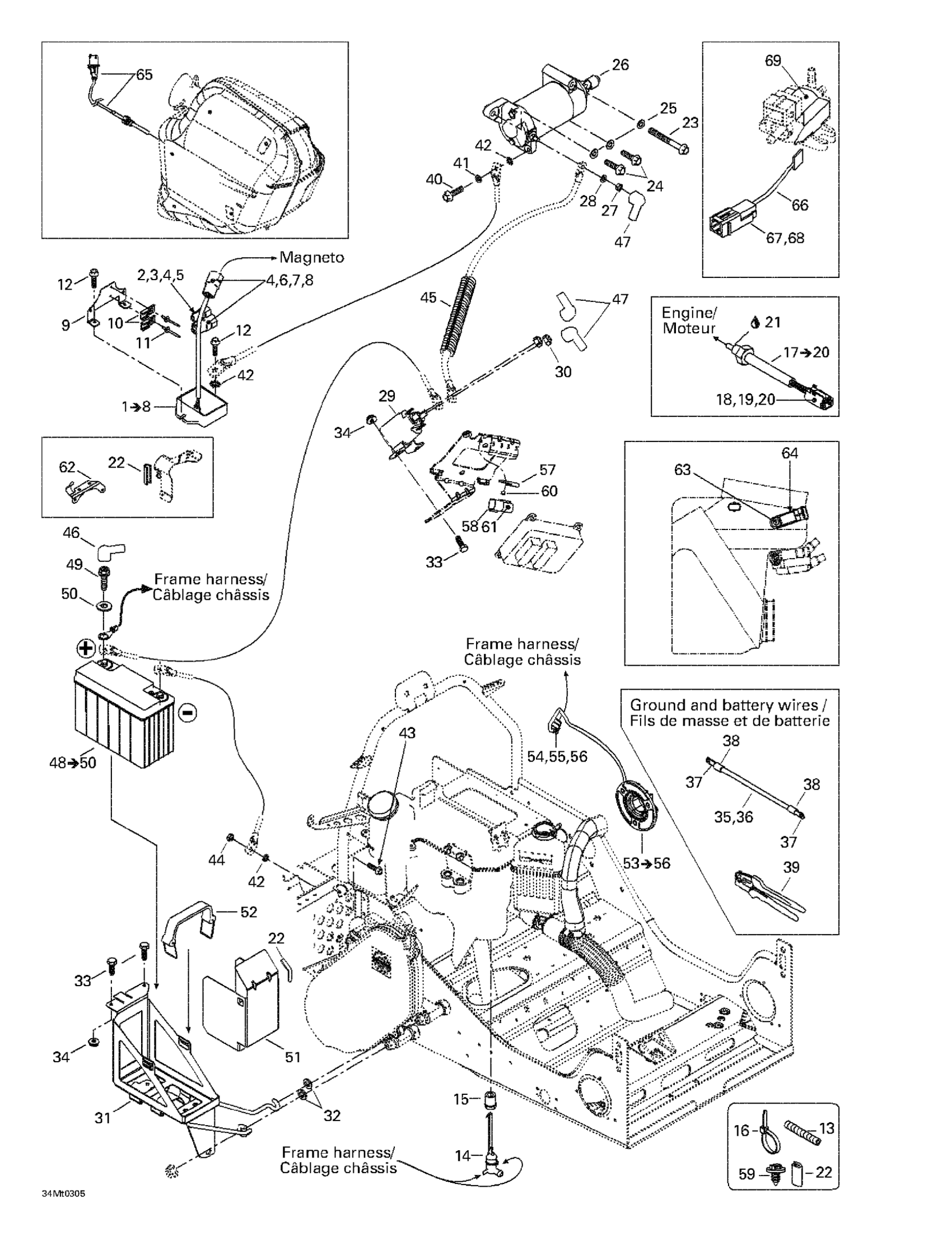

Ski-Doo Grand Touring SE 800 SDI, 2003 Battery, Starter And Accessories Diagram

#

Description
Price

1

Voltage Regulator | Includes 32 to 38

515176243

$345.35

2

Male Housing, 2 Circuits

409206900

$8.98

3

Male Terminal

278000631

$4.12

4

Sealing Cap

293000052

$2.55

5

Male Lock, 2 Circuits

409207500

$3.02

6

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

7

Male Terminal

515175568

$7.48

8

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

9

Housing Support

515175923

Unavailable

10

Clip

270000141

$8.33

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Taptite Screw

290841543

Unavailable

13

Was 409901700 Tubing (9 mm)

219704399

$79.97

Tubing 10 MM 1000MM Long

219704407

$2.20

Was 409901800 Tubing (13 mm)

219704400

$9.40

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

14

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

15

Float

414681900

Unavailable

16

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

17

Temperature Sensor This part replaces 515176043.

515177835

$94.58

18

Male Connector, 4 Circuits | CE

278000739

$14.92

19

Female Terminal

278000632

$1.69

20

Ground Plate

278000732

Unavailable

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

Was 271000110 Protection Trim

219704353

$15.03

23

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.80

24

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

25

Flat Washer With Teflon 8 mm

250200008

$3.12

26

Electric Starter Ass'y

515176133

$319.49

27

Elastic Stop Nut M6

232561414

$1.55

28

Flat Washer 6 mm

234061410

$1.04

29

Starter Relay

515176011

$51.97

30

Elastic Stop Nut M6

232561414

$1.55

31

Battery Support

515175718

Unavailable

32

Washer

503175800

$3.26

33

Hex. Screw M5 X 14

207151444

$0.72

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

Ground Cable Battery, no 6, meter)

278001680

Unavailable

36

Cable Battery, no 6, meter)

278001690

Unavailable

37

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

38

Was 710000483 Heat Shrink Tubing

219704447

$74.58

39

Crimp Plier

529035730

Unavailable

40

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

41

Flat Washer 6 mm

234061410

$1.04

42

Lock Washer Serrated M6

250200041

$0.92

43

Hex. Screw M6 X 16

207161644

$0.61

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

45

Was 409901700 Tubing (9 mm)

219704399

$79.97

46

Protection Cap

570151000

$18.43

47

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

48

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$162.45

49

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

50

Flat Washer 6 mm

234061410

$1.04

51

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

52

Battery Strap

515176044

$14.27

53

Flange, Speedo

504152173

Unavailable

54

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

55

Female Lock, 3 Circuits

515175676

$5.11

56

Female Terminal

278000632

$1.69

57

Clip

270000141

$8.33

58

Male Terminal Housing, 6 Circuits

515175668

$14.02

59

Mount Dart

293730040

$0.86

60

Pop Rivet 3/16"

390402200

$0.26

61

Sealing Cap

293000052

$2.55

62

Cable Support

515175254

Unavailable

63

Tuflock Phillips Plastic Screw

414745900

$1.30

64

Pressure Sensor

270600040

$157.92

65

Temperature Sensor

514054641

$206.89

66

Heating Element

515175976

Unavailable

67

Male Terminal Housing, 2 Circuits

515175654

$7.48

68

Male Terminal

515175232

$1.49

69

Heating Element Bracket

512059809

Unavailable
