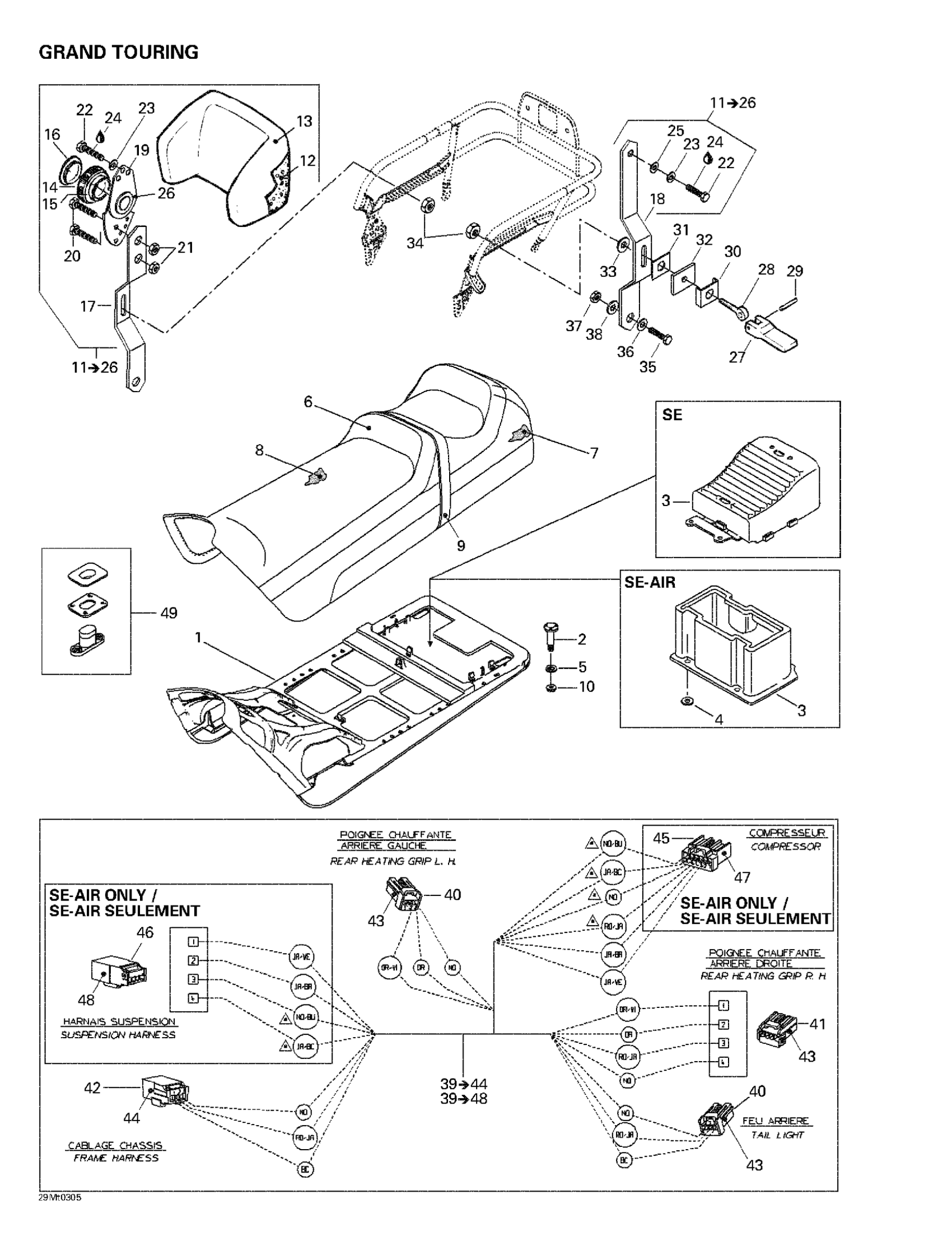

Ski-Doo Grand Touring SE 800 SDI, 2003 09- Seat (Grand Touring) Diagram

#

Description
Price

1

Sub-Seat

510003739

Unavailable

Sub-Seat, Se-Air | Grand Touring 600. Grand Touring 700.

510003972

Unavailable

2

«T» Bolt

732601221

Unavailable

3

Rear Trunk

510003751

Unavailable

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

4

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

5

Push Nut

732610072

$2.19

6

Seat Cover, Black | Sport / SE (B-160)

510004086

Unavailable

Seat Cover, autumn Red | SE (M-549)

510004092

Unavailable

Seat Cover, Black, Se-Air | Grand Touring 600. Grand Touring 700.

510004090

Unavailable

Seat Cover, Autumn Red, Se-Air | Grand Touring 600. Grand Touring 700.

510004088

Unavailable

7

Seat Foam, Side

510003741

Unavailable

8

Seat Foam, Top

510003752

Unavailable

Seat Foam, Top, Se-Air | Grand Touring 600. Grand Touring 700.

510003982

Unavailable

9

Seat Belt

510003753

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Backrest Ass’Y | Includes 16 to 31

510004093

Unavailable

12

Backrest Foam

414821200

Unavailable

13

Backrest Cover

510004094

Unavailable

14

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

15

STRIP - Call your local BRP dealership

415015500

Unavailable

16

Cap

414821000

Unavailable

17

RH Arm

517296400

Unavailable

18

LH Arm

517296500

Unavailable

19

Recliner

414813300

Unavailable

20

Hex. Screw M8 X 25

207182544

$0.90

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Hex. Screw M8 X 20

207182044

$0.74

23

Lock Washer 8 mm

234181401

$0.92

24

Loctite 243, 10 ml

293800060

$21.49

25

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

26

Cap

517250500

Unavailable

27

Lock Lever

572038200

Unavailable

28

EYE BOLT - Call your local BRP dealership

517250100

Unavailable

29

Pin

414821400

$7.55

30

Guide

517257300

Unavailable

31

SPACER - Call your local BRP dealership

517251300

Unavailable

32

Rubber Shim

570027400

Unavailable

33

Washer

414819500

Unavailable

34

Nut

517250000

Unavailable

35

Hex. Screw M8 X 25

207182584

Unavailable

36

Stainless Steel Flat Washer 8 mm

234081670

$0.67

37

Hex. Elastic Stop Nut M8

232581414

$0.56

38

Washer

414819600

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Female Housing, 3 Circuits

515175495

$16.18

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Male Housing, 3 Circuits

515175494

$16.18

43

Female Terminal

515175231

$4.39

44

Male Terminal

515175232

$1.58

45

Female Terminal Housing, 6 Circuits

515175543

$9.49

46

Male Terminal Housing, 4 Circuits

515175846

$8.79

47

Female Terminal

515175231

$4.39

48

Male Terminal

515175232

$1.58

49

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
