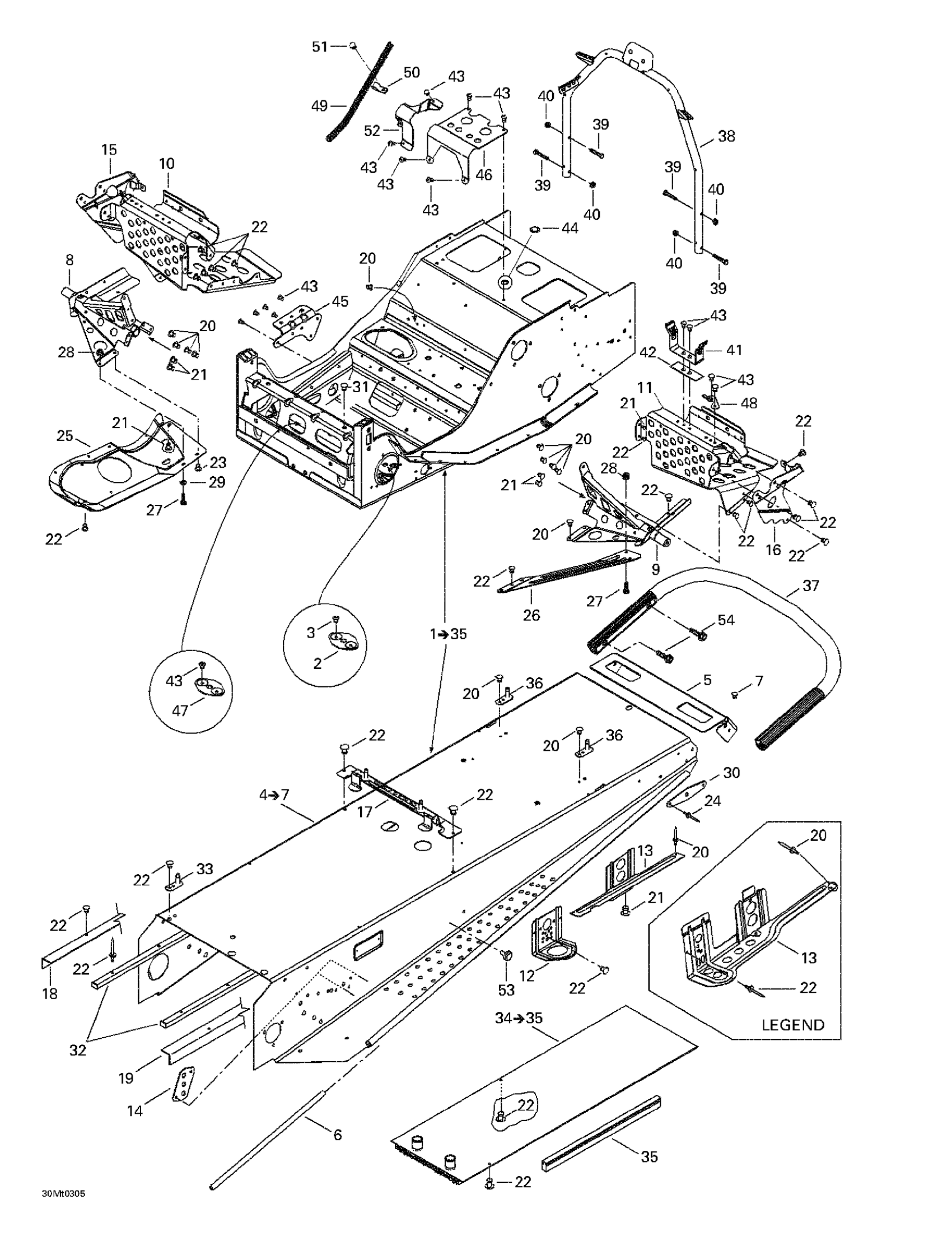

Ski-Doo Grand Touring SE 800 SDI, 2003 Frame Diagram

#

Description
Price

1

Frame | 700 / INCLUDES ITEMS 1 TO 35

415128554

Unavailable

1

Frame | Includes 1 - 36. Legend SE 800 SDI.

415128551

Unavailable

2

Plate Bracket

518201307

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

Forming Frame | Includes 2 to 5

415128615

Unavailable

Forming Frame | Legend SE 800 SDI.

518322534

Unavailable

5

Rear Cap

518322734

Unavailable

REAR CAP - Call your local BRP dealership

518321303

Unavailable

6

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

7

Pop Rivet 3/16"

390402200

$0.35

8

RH Footrest Support

518320506

Unavailable

9

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

10

RH Footrest

518323563

Unavailable

11

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

12

Front Bracket

518321495

Unavailable

13

RH Rear Bracket

518323051

Unavailable

RH SLIDE BRACKET - Call your local BRP dealership

518323315

Unavailable

LH Rear Bracket

518323055

Unavailable

LH SLIDE BRACKET - Call your local BRP dealership

518323318

Unavailable

14

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

15

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

16

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

17

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

18

RH Frame Reinforcement

518323190

Unavailable

RH Frame Reinforcement

518323193

Unavailable

19

LH Frame Reinforcement

518323191

Unavailable

LH Frame Reinforcement

518323195

Unavailable

20

Avex Rivet

390909200

$0.30

21

Avex Rivet

390909100

$0.30

22

Pop Rivet 3/16"

390402200

$0.35

23

Pop Rivet 3/16"

390402300

$0.75

24

Pop Rivet 3/16"

390402400

$0.35

25

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

26

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

27

Hex. Screw M5 X 20

207152044

$0.90

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Rear Reinforcement

518316767

Unavailable

31

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

32

Frame Protector

518321543

Unavailable

33

Double Bracket

518323173

Unavailable

34

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

REAR RADIATOR - Call your local BRP dealership | Includes 30 to 31

518323130

Unavailable

35

Radiator Protector | Grand Touring 500.

518321656

Unavailable

Radiator Protector

518321655

Unavailable

36

Seat Bracket

518323321

Unavailable

37

Rear Bumper | Includes 32 to 33

517272510

Unavailable

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

38

Handle Support

518322755

Unavailable

39

Hex. Flange Screw M6 X 35

207663544

$0.90

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Belt Guard Bracket

518202100

$17.49

42

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

43

Pop Rivet 3/16"

390402200

$0.35

44

CAP - Call your local BRP dealership

414859400

Unavailable

45

Muffler Support

518322635

Unavailable

46

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

47

Plate Bracket

518201307

Unavailable

48

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

49

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

50

Open Clamp

518321570

$7.69

51

Pop Rivet 3/16"

293150103

$0.55

52

Hose Support

518322699

Unavailable

53

Panel Fastener

518321954

$7.69

54

Hex. Flange Screw M8 X 20

207682044

$1.15
