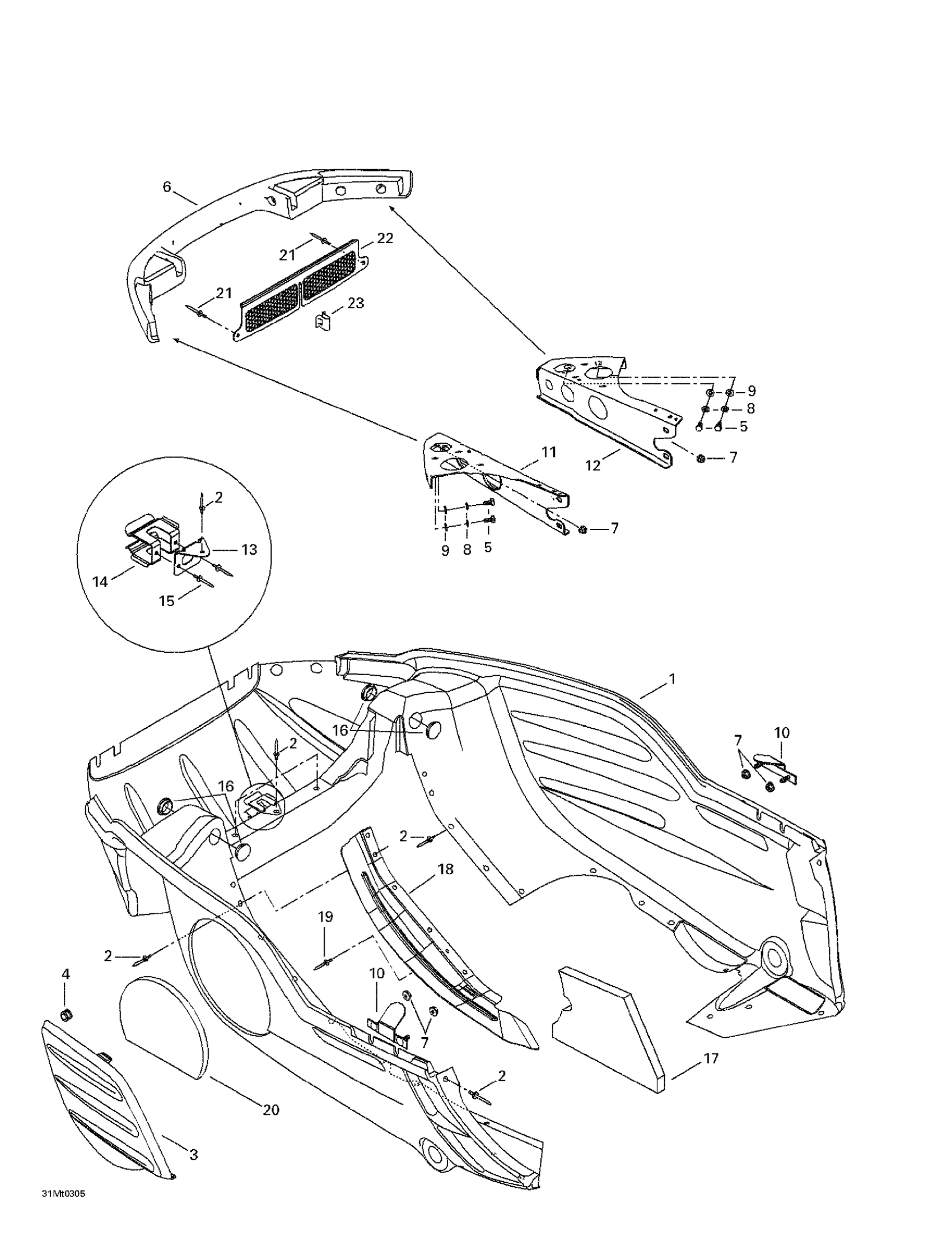

Ski-Doo Grand Touring SE 800 SDI, 2003 09- Bottom Pan Diagram

#

Description
Price

1

Full Moon, Bottom Pan

502006636

Unavailable

Deep Black, Bottom Pan

502006633

Unavailable

Labrador Blue, Bottom Pan

502006635

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

Full Moon, Bottom Pan Door

502006591

Unavailable

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

Labrador Blue, Bottom Pan Door

502006641

Unavailable

4

Grommet

414036300

$2.79

5

Hex. Screw M6 X 14

207161444

$0.58

6

Bumper, Black

502006719

$101.49

Bumper, Black

502006719

$101.49

Labrador Blue, Bumper

502006642

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lock Washer M6, Black

234161471

$0.53

9

Flat Washer

224061121

$0.53

10

LH Bracket

502006645

Unavailable

11

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

12

RH Support

502006602

Unavailable

13

Belt Support

502006599

Unavailable

14

Bracket

517281905

$18.49

15

Pop Rivet 3/16"

390402400

$0.35

16

Black, Nylon Cap

414916600

$4.69

17

Bottom Foam

502006558

Unavailable

18

Bottom Pan Protector | 700 / WITH GRILL

502006593

Unavailable

19

Pop Rivet 3/16"

390402200

$0.35

20

Bottom Pan Door Foam

502006559

Unavailable

21

Pop Rivet 3/16"

293150103

$0.55

22

Center Grille | 700 / WITH GRILL

502006697

Unavailable

23

Edge Clip

517302785

$0.88
