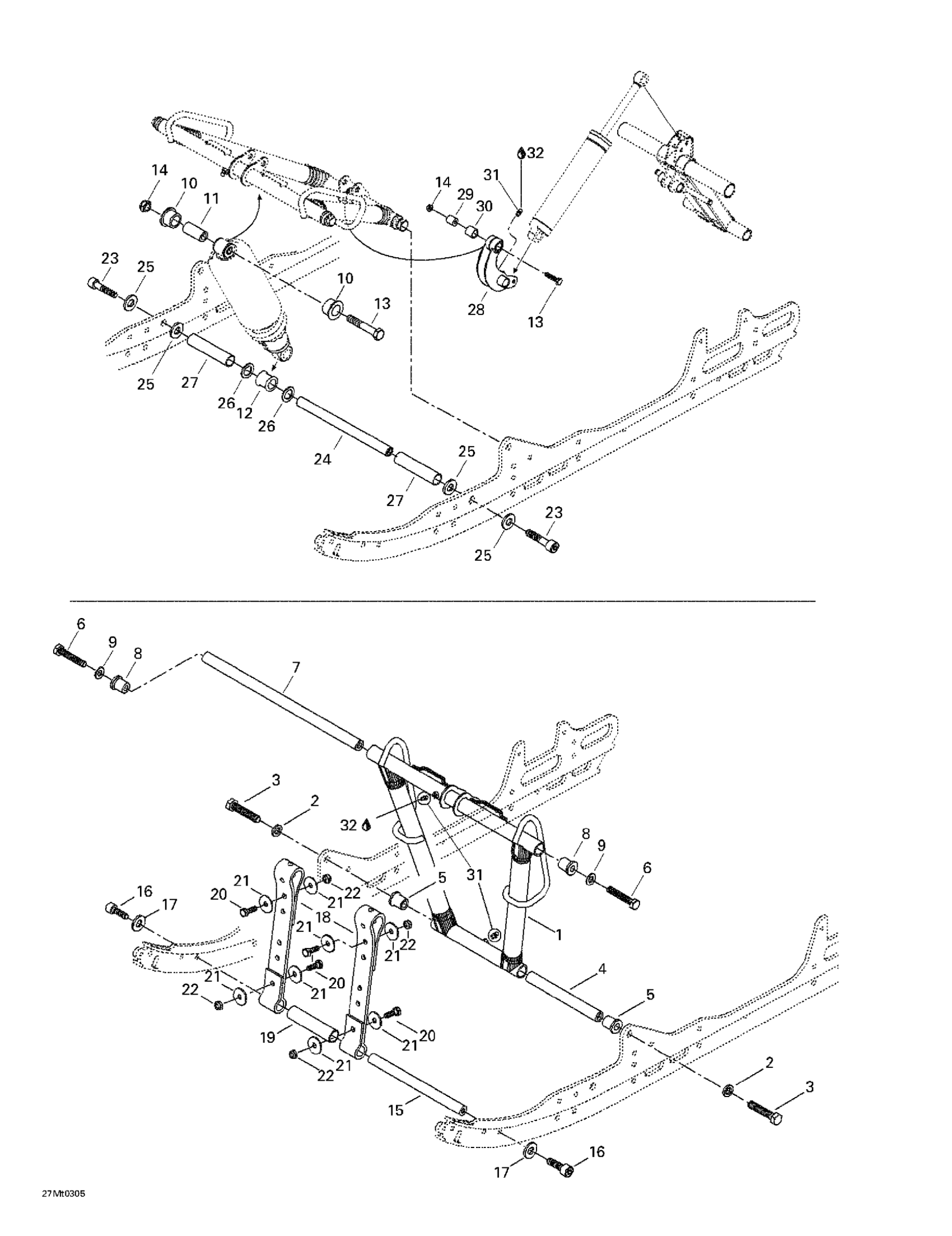

Ski-Doo Grand Touring SE 800 SDI, 2003 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$14.15

9

Washer

732900049

$0.58

10

Urethane Bushing

503189117

$8.19

11

Bushing | Includes 240d to 240d1

503189282

$4.34

12

Bushing

503189271

$13.99

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

17

Washer

503189564

$0.74

18

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

19

Spacer

503189265

$4.99

20

Hex. Screw M8 X 25

207182544

$0.90

21

Flat Washer

224081301

$0.88

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

$3.28

26

Washer

503189273

$3.28

27

SPACER - Call your local BRP dealership

503189274

Unavailable

28

Rocker

503189845

Unavailable

Rocker

503189845

Unavailable

Rocker | Legend SE 800 SDI.

503190116

Unavailable

29

Rocker Axle

503189388

Unavailable

30

CUSHION - Call your local BRP dealership

503189626

Unavailable

31

Grease Fitting

408200700

$3.49

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
