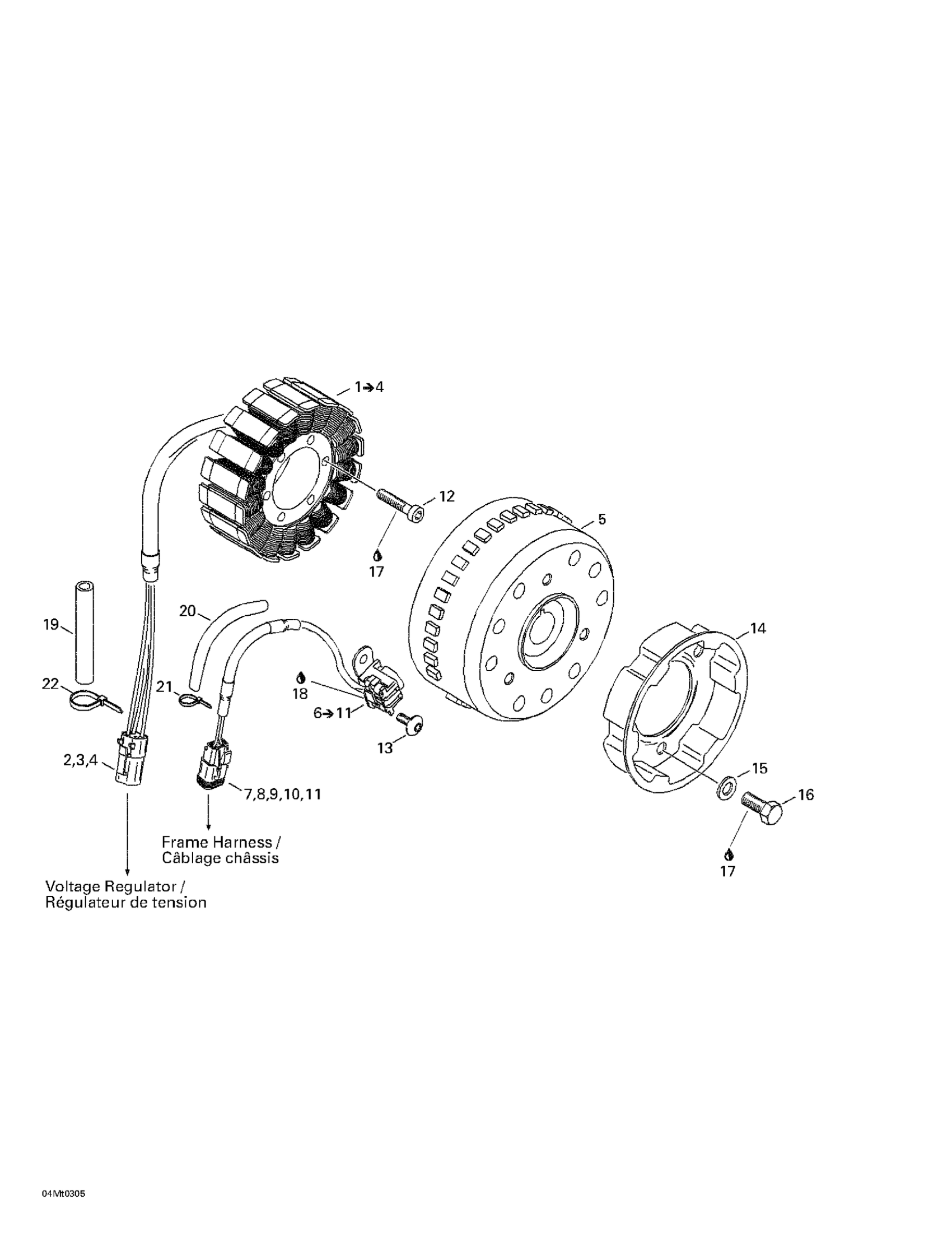

Ski-Doo Grand Touring SE 800 SDI, 2003 Magneto (12V, 480W) Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Female Terminal Housing, 4 Circuits

278001473

$24.60

3

Male Terminal

515175568

$7.25

4

Female Lock, 4 Circuits

278001474

$2.93

5

FLYWHEEL - Call your local BRP dealership

420866040

Unavailable

6

PICK-UP ASS?Y - Call your local BRP dealership | Includes 6 - 11.

420966835

Unavailable

7

Female Terminal Housing, 2 Circuits

515175670

$7.61

8

Female Terminal

278000632

$1.94

9

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

10

Female Lock, 2 Circuits

515175675

$4.28

11

Sealing Cap

293000052

$2.93

12

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

13

Torx Screw M6 X 16

420640324

$2.00

14

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$23.85

15

Flat Washer

420827405

$1.61

16

Hex. Screw M8 x 16

207181644

$1.00

17

Loctite 243, 10 ml

293800060

$21.49

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tubing 10 MM 1000MM Long

219704407

$2.52

20

Tubing 6 Mm 3000Mm Long

219704425

$12.75

21

Tie Wrap 142 mm

293750002

$1.01

22

Tie-Rap 180 mm

414115200

$0.10
