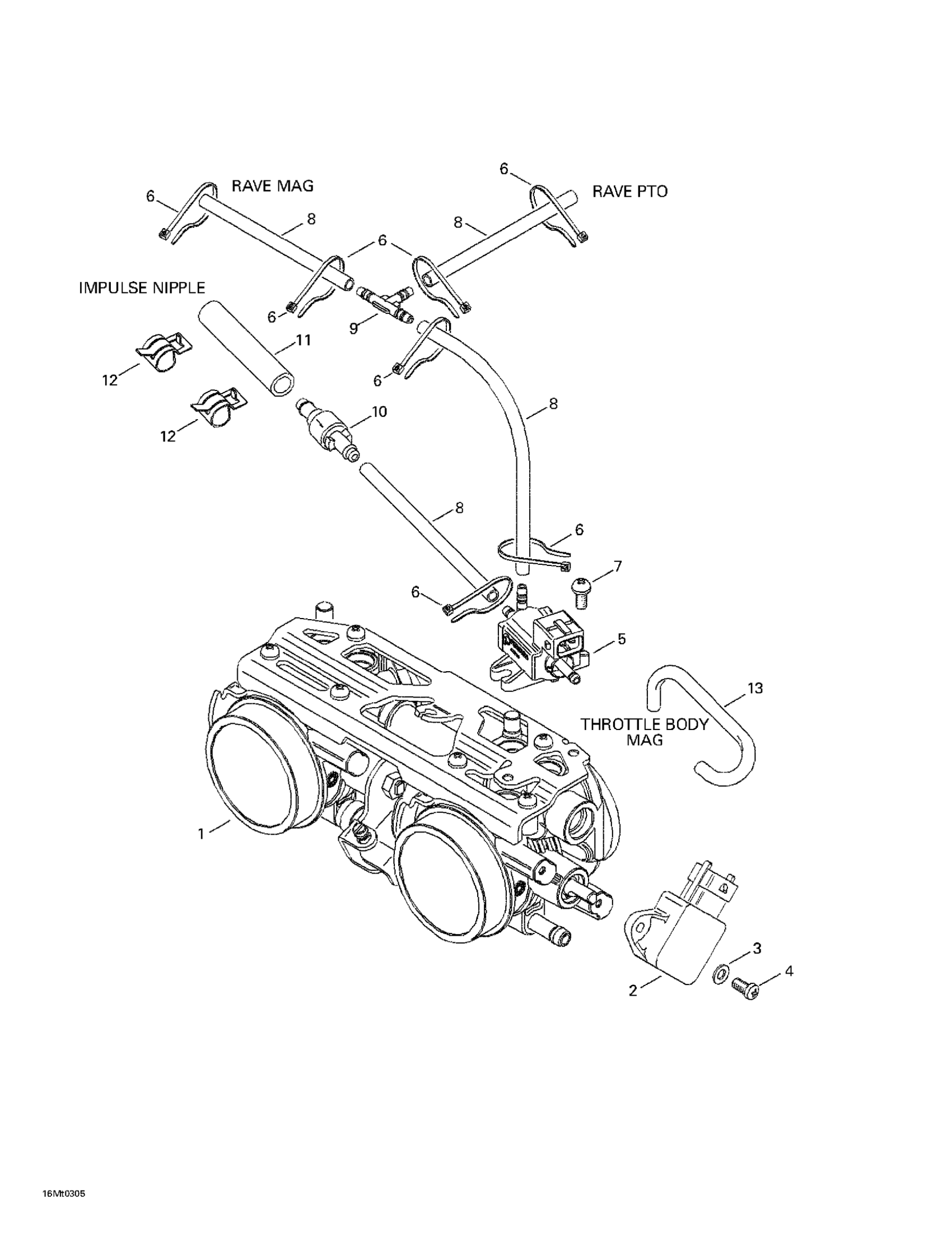

Ski-Doo Grand Touring SE 800 SDI, 2003 02- Throttle Body Diagram

#

Description

Price

1

Throttle Body | 800 SDI

420889190

Unavailable

2

Position Sensor

420866120

$98.99

3

Flat Washer 4 mm, Stainless

234041600

$1.15

4

Phillips Screw M4 X 16

208641660

$0.90

5

Solenoïd Valve

420664630

$48.49

6

Tie Wrap 94 mm | 4X4

293750001

$1.03

7

SCREW M5 X 10 - Call your local BRP dealership

420940011

Unavailable

8

High Pressure Air Hose, 180 mm

420660571

$14.22

9

T-Fitting

293710068

$8.29

10

Check Valve

420660540

Unavailable

11

High Pressure Air Hose 50 mm

420660561

Unavailable

12

Norma Spring Clamp

293650214

$15.89

13

FORMED HOSE - Call your local BRP dealership

420660990

Unavailable
