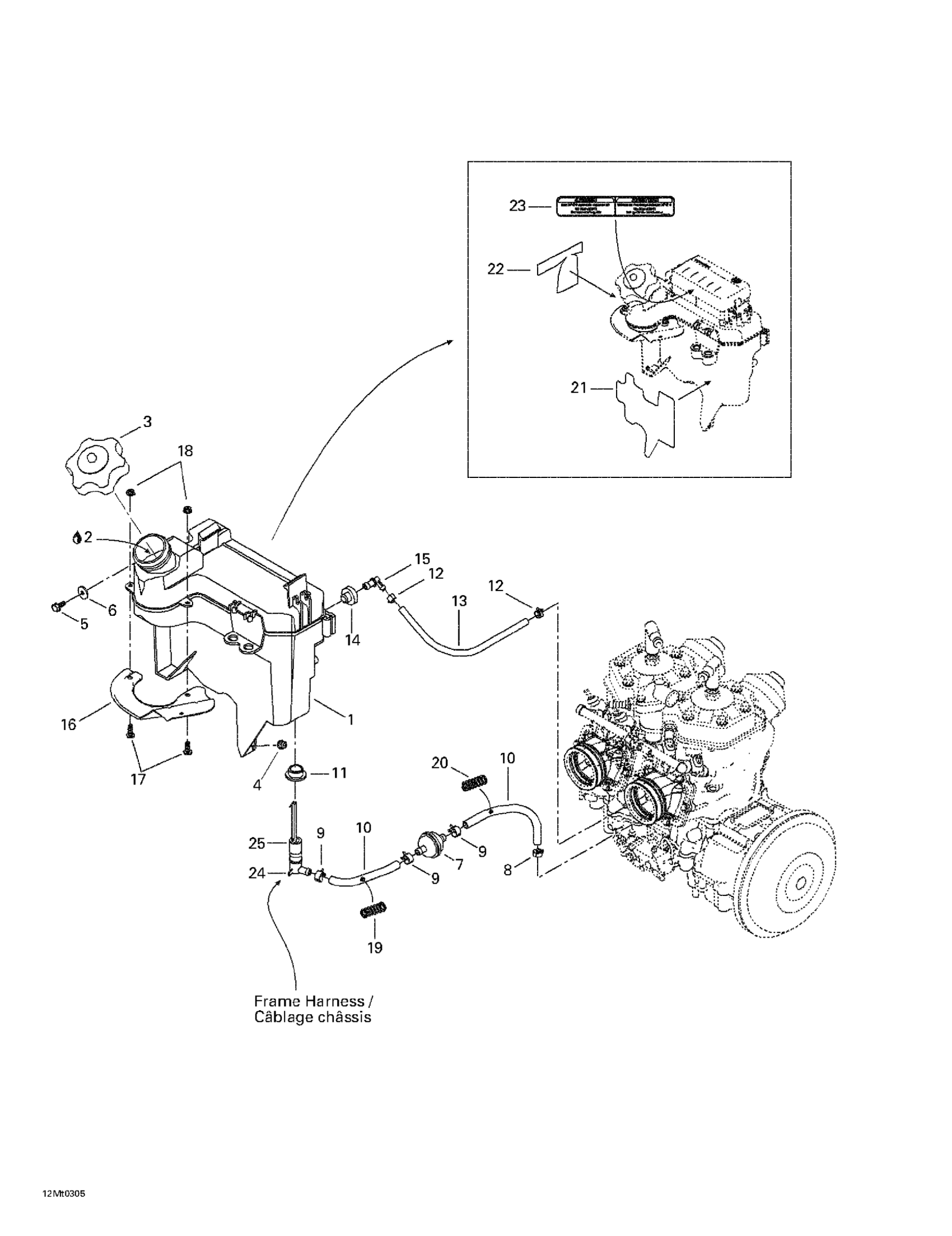

Ski-Doo Grand Touring SE 800 SDI, 2003 02- Oil Tank Diagram

Oil Tank

519000049

Unavailable

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

CAP - Call your local BRP dealership

519000042

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 12

210261250

$1.90

Lock Washer Serrated M6

250200041

$1.15

Filter

414536500

$4.02

Spring Clamp

414420700

$0.72

Spring Clamp

414415200

$0.88

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

Insulating Ring

570023000

$5.61

Spring Clamp

414554800

$0.88

Polyurethane Hose 10000Mm Long

219704410

$56.99

Grommet

709200285

$9.69

Male Connector

414580700

$4.12

Deflector

519000043

Unavailable

Hex. Screw M5 X 16

208651641

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

Spring

519000062

Unavailable

SPRING - Call your local BRP dealership

519000063

Unavailable

REFLECTIVE SHEET - Call your local BRP dealership

519000059

Unavailable

REFLECTIVE SHEET - Call your local BRP dealership

519000051

Unavailable

Warning Decal

516001794

Unavailable

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

Float

414681900

Unavailable
