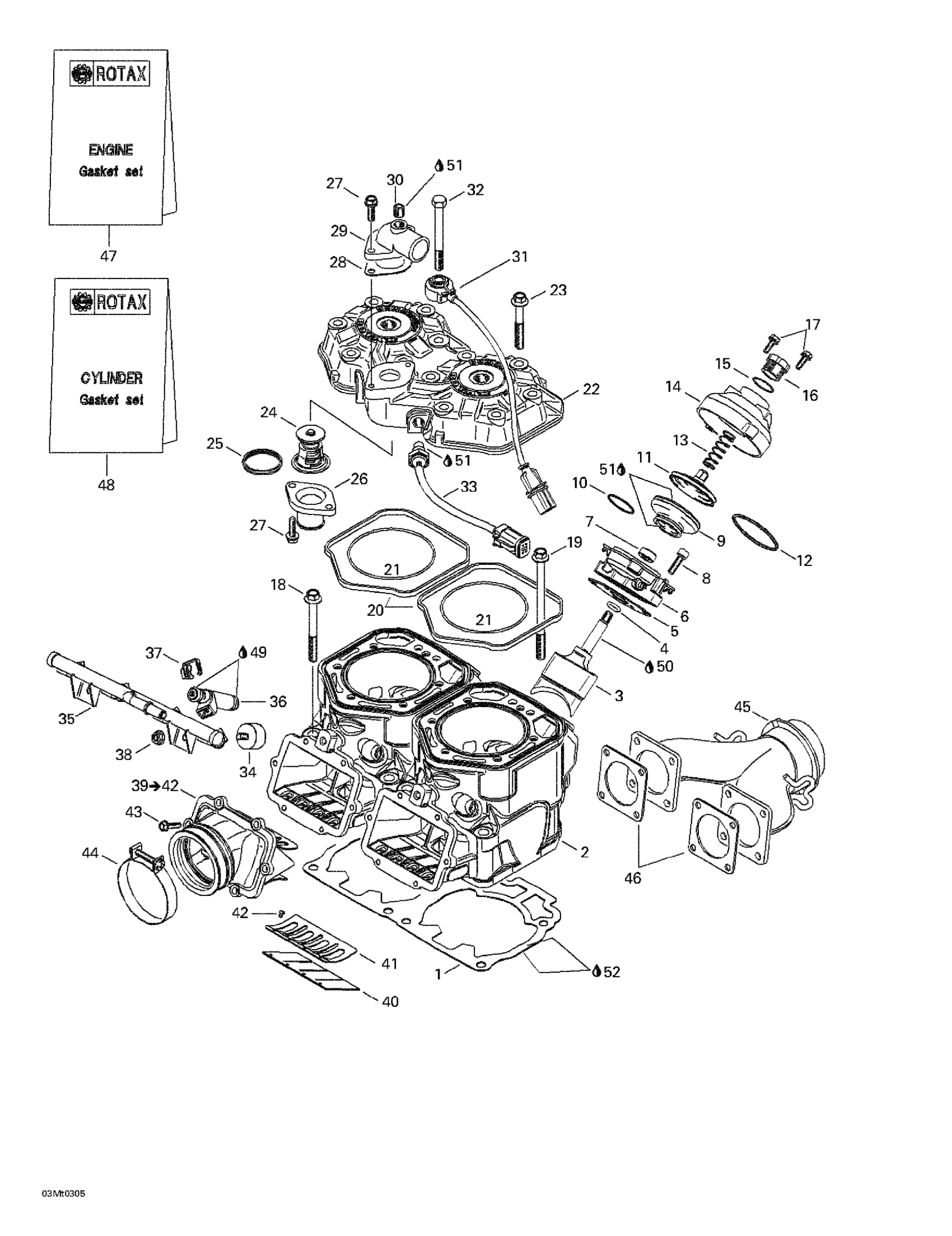

Ski-Doo Grand Touring SE 800 SDI, 2003 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

2

Cylinder-Nicasil

420923813

Unavailable

3

Exhaust Valve

420854660

Unavailable

4

O-Ring

420430110

$3.61

5

Gasket

420931542

$6.62

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$8.34

8

Socket Head Screw M6 X 25

205062544

$0.88

9

Bellows

420260729

$37.66

10

Hose Spring This part replaces 420838253.

420838255

$6.11

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

$5.99

13

SPRING - Call your local BRP dealership

420239941

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$24.02

15

O-Ring

420430220

$8.03

16

Adjuster Screw

420241221

$12.52

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

18

Hex. Collar Screw

420640524

$11.52

19

Hex. Collar Screw

420640534

$13.58

20

Rubber Ring

420931590

$5.69

21

O-Ring | Included in gasket kit

420931410

$2.67

22

Cylinder Head Cover, Silver

420923825

Unavailable

23

Hex. Screw M8 X 56.5

420941627

$8.34

24

Thermostat This part replaces 414834100.

420922519

$59.20

25

Sealing Ring

420931272

$15.35

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

27

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

28

Gasket

420850338

$10.28

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

30

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

31

Noise Sensor

270000484

$65.62

32

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

33

Temperature Sensor This part replaces 515176043.

515177835

$94.58

34

STOPPER - Call your local BRP dealership

420960065

Unavailable

35

Fuel Rail Ass’Y

420874460

Unavailable

36

Fuel Injectors

420874485

$232.28

37

CLIP - Call your local BRP dealership

420851800

Unavailable

38

NUT - Call your local BRP dealership

420442172

Unavailable

39

CARBURETOR SOCKET - Call your local BRP dealership

420867230

Unavailable

40

Reed Pedal

420924680

$37.66

41

Reed Pedal Stop

420924695

$13.58

42

Phillips Screw M3 X 5

420941215

$1.42

43

Taptite Screw M5 X 16

420941928

Unavailable

44

CLAMP - Call your local BRP dealership

420851810

Unavailable

45

Exhaust Manifold | 800 SDI

420673245

Unavailable

46

Gasket

420931850

$11.78

47

Gasket Engine Kit

420888741

$276.89

48

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

49

Dow Corning 111, 150 g

413707000

$57.82

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

52

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
