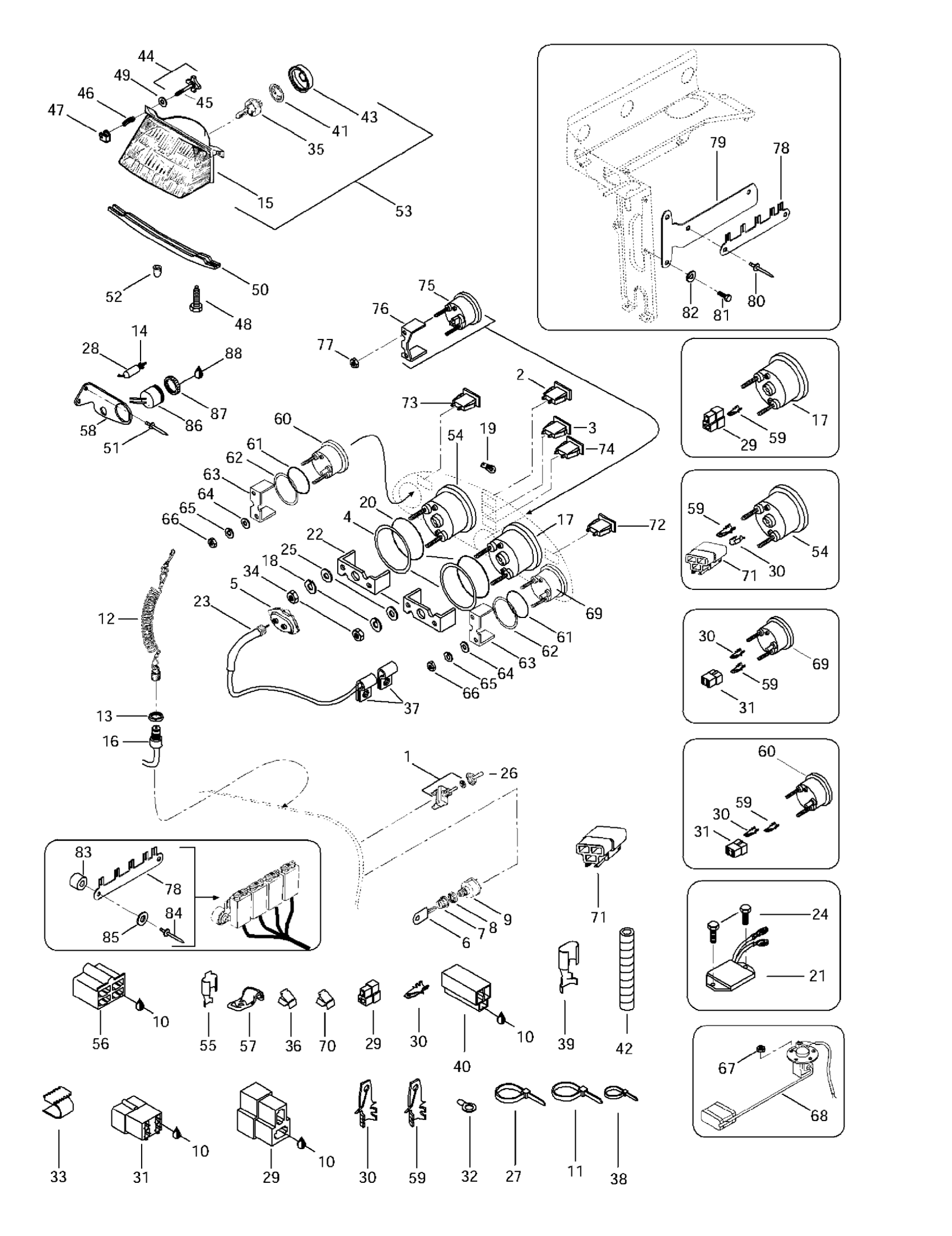

Ski-Doo Grand Touring SE, 1997 10- Electrical System Diagram

#

Description
Price

1

Switch (Compressor) | Grand Touring 600. Grand Touring 800.

410111500

Unavailable

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

Tie Wrap 368 mm

293750008

$1.04

12

DESS

515178284

$84.99

13

Safety Nut (DESS Switch)

278002963

$3.28

14

Nut | Formula DLX 500 LC.

732610075

Unavailable

15

Headlamp | Includes 53 to 56

410609300

Unavailable

16

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

17

Speedometer (KMH) | Formula Z.

415034000

Unavailable

Speedometer (MH) | Formula Z.

415034100

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

Voltage Regulator

515167000

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hexagonal Head Screw

210262050

$2.11

25

Flat Washer

517225900

$0.18

26

Switch Cover

515175281

$15.99

27

Tie-Rap 180 mm

414115200

$0.11

28

SWITCH CONNECTOR ASS'Y - Call your local BRP dealership

515167300

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

32

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

33

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

34

Nut

414806900

Unavailable

35

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

36

Clip

414227300

$1.67

37

Open Clamp

414176000

$1.99

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Female Terminal

561503100

$2.41

40

Female Housing

409204300

Unavailable

41

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

42

Was 409901800 Tubing (13 mm)

219704400

$14.49

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Adjuster Screw Ass'y | Includes 44 - 45.

415006100

Unavailable

45

Screw M4 x 40

732603004

Unavailable

46

SPRING - Call your local BRP dealership

517166000

Unavailable

47

Projector Nut

572078600

Unavailable

48

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

49

Flat Washer

517225900

$0.18

50

Headlamp Support

517249300

Unavailable

51

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

52

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

53

Headlamp | Includes 42 to 45

410609100

Unavailable

54

Tachometer

415057000

Unavailable

55

Female Terminal PACKARD

561503200

Unavailable

56

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

57

Bracket

517274400

Unavailable

58

Horn Support

517285300

Unavailable

59

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

60

Fuel Gauge | Formula Z.

415042900

Unavailable

61

O-RING - Call your local BRP dealership

414807200

Unavailable

62

WASHER - Call your local BRP dealership

517258600

Unavailable

63

Case Holder | SE Models

414806600

Unavailable

64

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

65

Lock Washer | SE Models

414833700

Unavailable

66

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

67

Elastic Stop Nut M5

232551414

$0.87

68

Fuel Sender Ass'y | Formula Z.

580651100

Unavailable

69

Temperature Gauge | Formula Z.

415042800

Unavailable

70

Clip

414227300

$1.67

71

Male Terminal Housing (3 circuits)

409008600

Unavailable

72

Pilot Lamp (Heated Handle)

410109300

Unavailable

73

Pilot Lamp (Heated Thumb)

410109400

Unavailable

74

Pilot Lamp (Antitheft)

410111400

Unavailable

75

Pressure Gauge | Grand Touring 600. Grand Touring 800.

415043500

Unavailable

76

Gauge Holder

415043502

Unavailable

77

Elastic Stop Nut M4

232541484

$0.74

78

Housing Support

517294100

Unavailable

79

Support

517293000

Unavailable

80

Pop Rivet 3/16"

390402400

$0.35

81

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

82

Lock Washer M6, Black

234161471

$0.53

83

Spacer

517223600

Unavailable

84

Pop Rivet 3/16"

293150100

$1.09

85

Flat Washer

517225900

$0.18

86

HORN - Call your local BRP dealership

515176035

Unavailable

87

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

88

Silicone Sealant 51388, 300 ml

296000309
