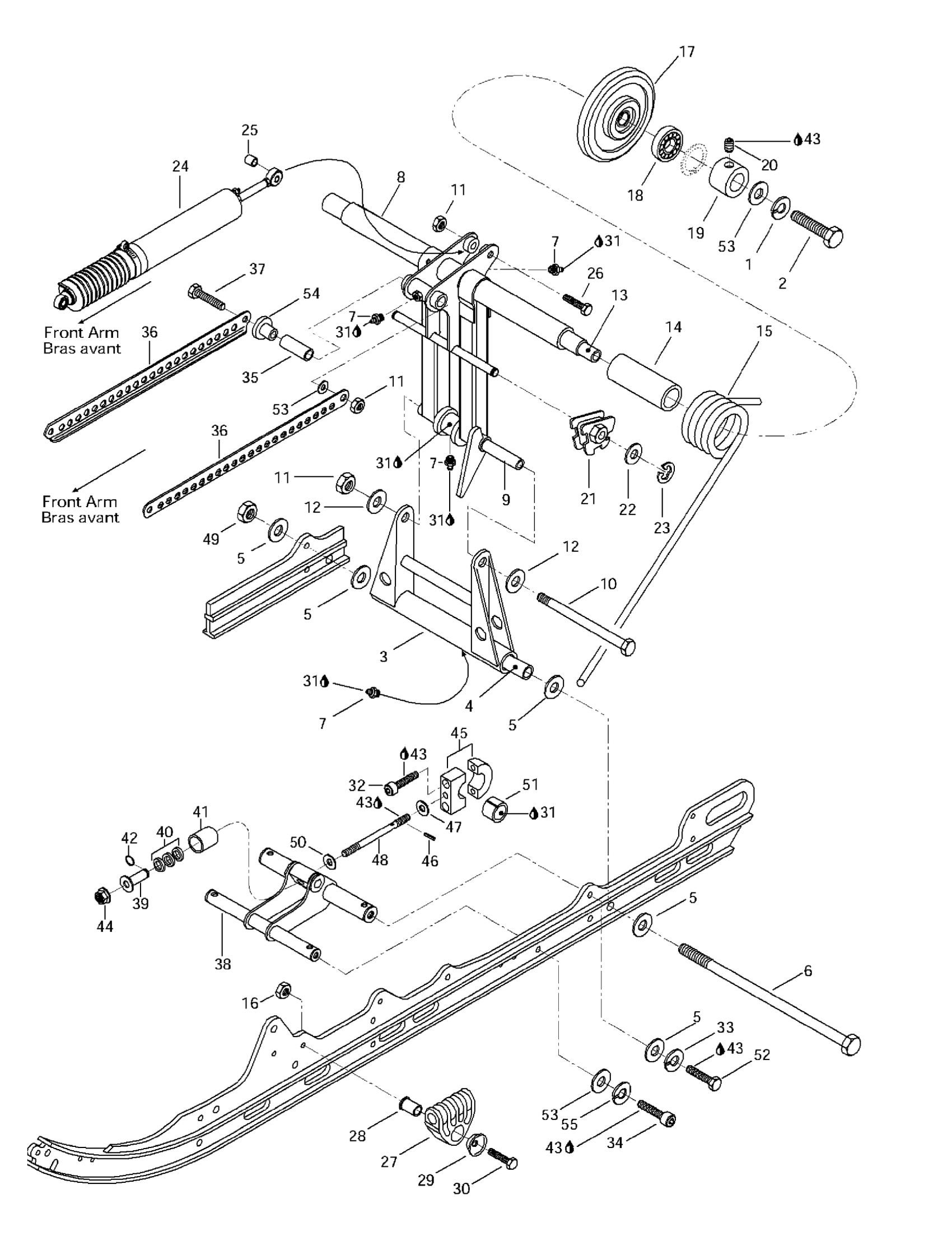

Ski-Doo Grand Touring SE, 1997 Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

2

Hex. Screw M10 X 35

207103544

$1.42

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.97

7

Grease Fitting

408200700

$2.80

8

Welded Rear Arm | Formula III 600 LT.

503171500

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.98

10

Bolt M8, Short

732601197

$15.06

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Flat Washer 8 mm

234081410

$0.69

13

Rear Cross Shaft

503168700

Unavailable

14

Bushing

572080700

$15.26

15

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

16

Elastic Stop Nut M6

232561414

$1.55

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$11.15

19

Retaining Ring

503168800

$12.65

20

Socket Set Screw M6 X 8

206260844

$1.25

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

e Circlip

371907100

Unavailable

24

Air Shock

415038600

Unavailable

25

Bushing

414936000

$11.55

26

Hex. Screw M8 X 50

207085044

$1.25

27

Spring Support

503189657

$10.20

28

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

29

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

30

Hex. Screw M6 X 45

207064544

$2.02

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

32

Socket Head Screw M8 X 30

205083044

$0.92

33

Lock Washer 8 mm

234181401

$0.89

34

Socket Screw M10 X 35

205003544

$1.39

35

Tie Rod Shaft

503171600

Unavailable

36

Tie Rod | Formula III 600 LT.

503170900

Unavailable

37

Hex. Screw M8 X 90

207089044

$2.82

38

Bracket Weld | Formula Z.

503171900

Unavailable

39

Bushing

503172900

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503103600

Unavailable

42

Circlip

371910700

Unavailable

43

Loctite 271, 10 ml

293800005

$20.77

44

Hex. Flange Elastic Nut M10

233201414

$1.26

45

Pivot Block Ass'y | Includes 45 - 48. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

580653800

Unavailable

46

Rolled Pin M3 x 18

732804011

Unavailable

47

Washer | Formula Z.

503173000

Unavailable

48

Threaded Rod | Formula Z.

503173100

Unavailable

49

Hex. Flange Elastic Nut M8

233281414

$1.14

50

Washer

503172700

Unavailable

51

CUSHION - Call your local BRP dealership

415027800

Unavailable

52

Hex. Screw M8 x 30 | Formula Z.

222083066

Unavailable

53

Flat Washer 10 mm

234001410

$0.98

54

Plastic Cushion

415052300

Unavailable

55

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable
