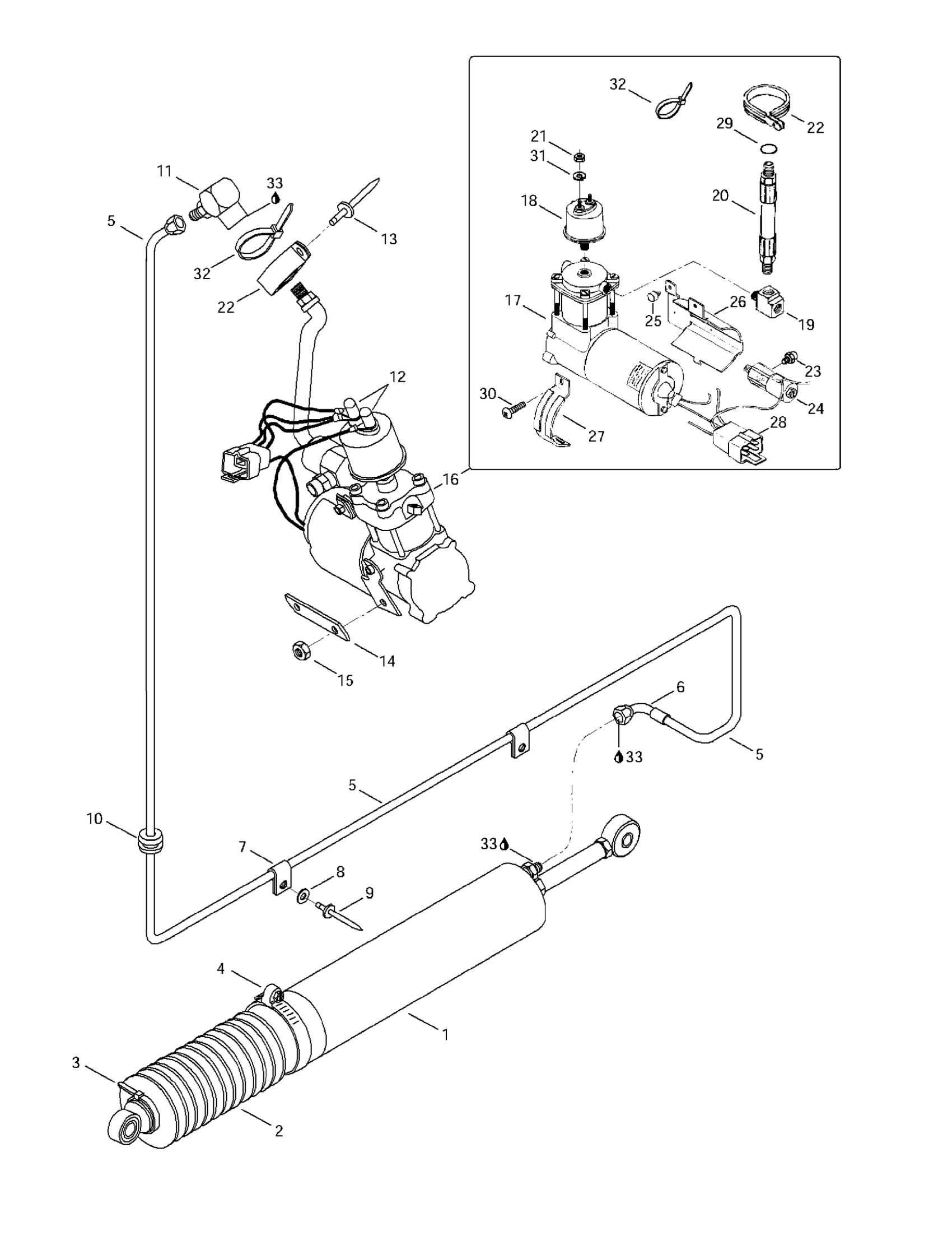

Ski-Doo Grand Touring SE, 1997 08- Air Shock And Compressor Diagram

#

Description
Price

1

Air Shock

415038600

Unavailable

2

Protection Boot

570278300

$59.99

3

Tie-Rap 180 mm

414115200

$0.11

4

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

5

Pneumatic Hose

415056100

Unavailable

6

Adaptor | Grand Touring 600. Grand Touring 700.

414893900

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Washer

517124300

$0.19

9

Pop Rivet 3/16”

390407200

$0.70

10

Grommet

570270800

Unavailable

11

Fitting

415082600

Unavailable

12

Mask Cap

293000071

Unavailable

13

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

14

Attachment Plate

503175300

Unavailable

15

Elastic Stop Nut M4

232541414

$0.58

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compressor

415043400

Unavailable

18

Pressure Sender | Grand Touring 600. Grand Touring 700.

415043600

Unavailable

19

Fitting

415085100

Unavailable

20

Pneumatic Hose

415082700

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Bracket

415074100

Unavailable

23

Pressure Regulator | Grand Touring 600. Grand Touring 700.

415099200

Unavailable

24

Release Valve

415043700

Unavailable

25

Bumper (Rubber)

570065600

Unavailable

26

Compressor Base

503175100

Unavailable

27

Compressor Strap

503175200

Unavailable

28

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Tie-Rap 180 mm

414115200

$0.11

33

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
