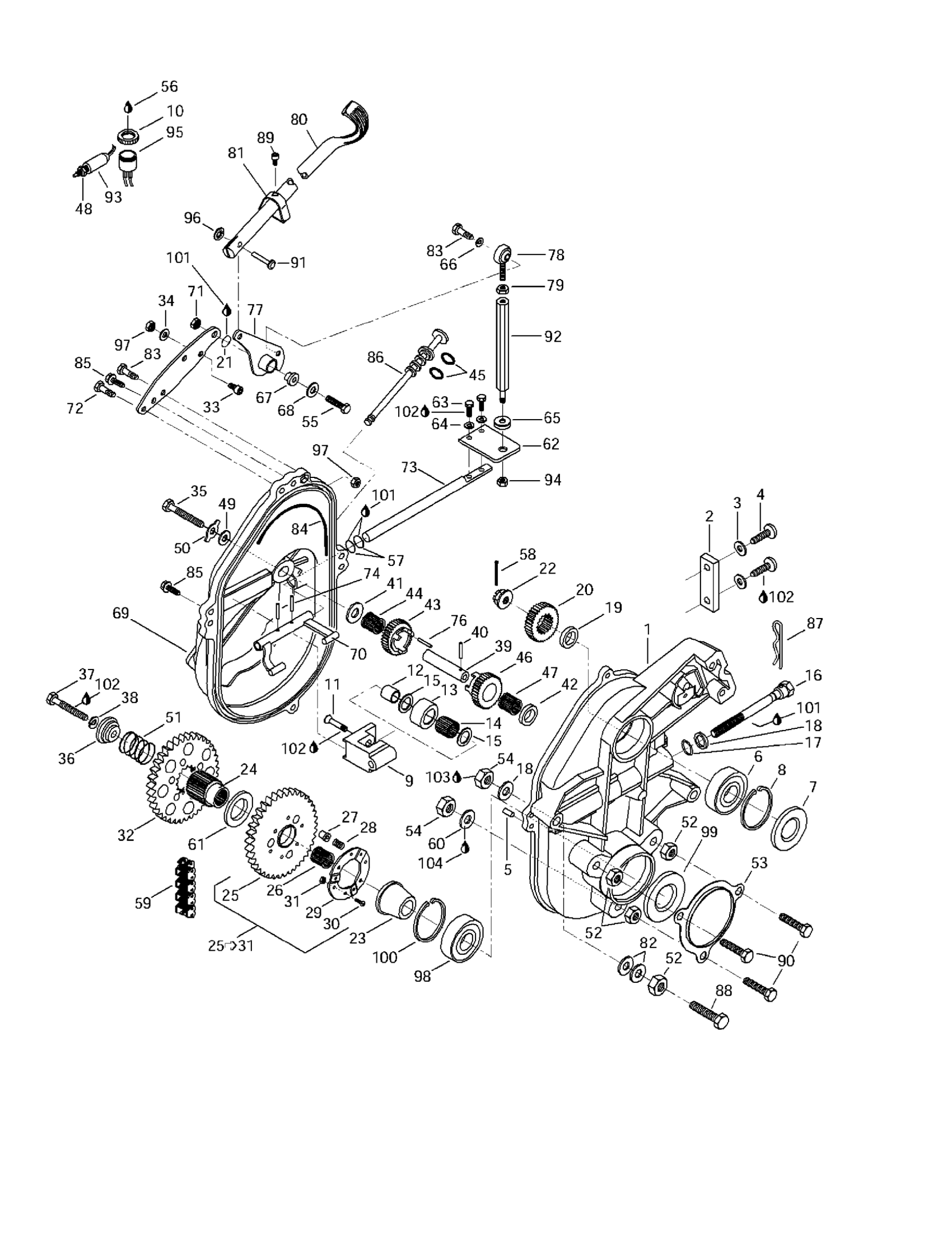

Ski-Doo Grand Touring SE, 1997 05- Transmission Diagram

Chaincase | Formula 500. Formula Z. Formula 583.

504144700

Unavailable

Chain Slider

504082400

Unavailable

Copper Washer | Formula DLX 500 LC.

732900040

Unavailable

Hex. Screw M6 X 16

207161644

$0.74

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

Ball Bearing

293350115

$12.11

Seal | Formula Z 583. Formula Z 670.

414531200

Unavailable

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

SCREW - Call your local BRP dealership

732601144

Unavailable

SPACER - Call your local BRP dealership

504080200

Unavailable

ROLLER - Call your local BRP dealership

414531300

Unavailable

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

WASHER - Call your local BRP dealership

504080300

Unavailable

Tensioner Adjustment Screw (Forging) | Formula 500. Formula Z. Formula 583.

732601267

Unavailable

O-Ring

414484400

$7.51

Flat Washer 10 mm

234001410

$1.26

Shim

504093400

Unavailable

Sprocket 25 Teeth

504153912

$44.99

O-Ring

414977600

Unavailable

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

RETAINING RING - Call your local BRP dealership

504076300

Unavailable

Coupling Axle

504097700

Unavailable

SPROCK ASSY, 44 TEETH - Call your local BRP dealership | Includes 55 to 63

581096800

Unavailable

Sprocket, 44 Teeth

504084400

Unavailable

NEEDLE BEARING - Call your local BRP dealership

414772600

Unavailable

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

SPRING - Call your local BRP dealership

414772700

Unavailable

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

Hex. Screw M5 X 20

207152044

$0.90

Nut Lock Hex. M5

228451046

Unavailable

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

Unavailable

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

Flat Washer 6 mm

234061410

$1.36

Hex. Screw M8 X 90

207089044

$3.48

Cap | Formula DLX 500 LC.

504099100

Unavailable

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Reverse Shaft

504083100

$46.99

Spring Pin | Formula DLX 500 LC.

732804003

Unavailable

Spacer

504077300

$6.95

Ring

504078700

$20.99

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

O-RING - Call your local BRP dealership

414969400

Unavailable

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

NEEDLE BEARING - Call your local BRP dealership

414773100

Unavailable

Nut | Formula DLX 500 LC.

732610075

Unavailable

Washer

504082900

$2.64

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

Release Spring | Formula DLX 500 LC.

504099200

Unavailable

Spacer

504083800

Unavailable

Protector

501022100

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Hex. Screw M8 X 40

207084044

$1.15

Silicone Sealant 51388, 300 ml

296000309

$36.99

O-RING - Call your local BRP dealership

414773200

Unavailable

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

Copper Washer

732900020

Unavailable

WASHER - Call your local BRP dealership

504094300

Unavailable

Plate | Formula DLX 500 LC.

504094602

Unavailable

Hex. Screw M5 X 14

207151444

$0.87

Lock Washer 5 mm | Europe

234151401

$0.55

Rubber Washer | Formula DLX 500 LC.

570045700

Unavailable

Lock Washer M6, Black

234161471

$0.53

Flange Bushing

414977100

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Cover Chaincase | Formula DLX 500 LC.

504098500

Unavailable

Fork

504075800

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

Hex. Flange Screw M6 X 16

210261650

$1.67

Shaft | Formula DLX 500 LC.

504142900

Unavailable

SPRING PIN - Call your local BRP dealership

414772500

Unavailable

Support-Pivot

504098600

Unavailable

Alignement Rod

570048600

$15.99

Pivot Plate

504099000

Unavailable

RH BALL-JOINT - Call your local BRP dealership

414773400

Unavailable

Hex. Nut M6

232061414

$0.53

Grip

570053900

Unavailable

Stopper-Switch | Formula DLX 500 LC.

572071100

Unavailable

WASHER - Call your local BRP dealership

504073700

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

O-Ring

414362300

Unavailable

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

Hair Pin

414575600

$1.89

Hex. Screw M10 x 70

732601111

Unavailable

Phillips Screw 8x1/2"

364901600

Unavailable

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

Rivet

390804300

Unavailable

Bar

504143000

Unavailable

SWITCH CONNECTOR ASS'Y - Call your local BRP dealership

515167300

Unavailable

Elastic Stop Nut M5

232551414

$0.87

HORN - Call your local BRP dealership

515176035

Unavailable

Push Nut

389804300

$0.53

Elastic Stop Nut M6

232561414

$0.55

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

Circlip (Int-rior)

414784900

Unavailable

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Loctite 271, 10 ml

293800005

$26.99

Loctite 243, 10 ml

293800060

$21.49

Was 413702700 Loctite 515, 50 ml

219704462

$33.99
