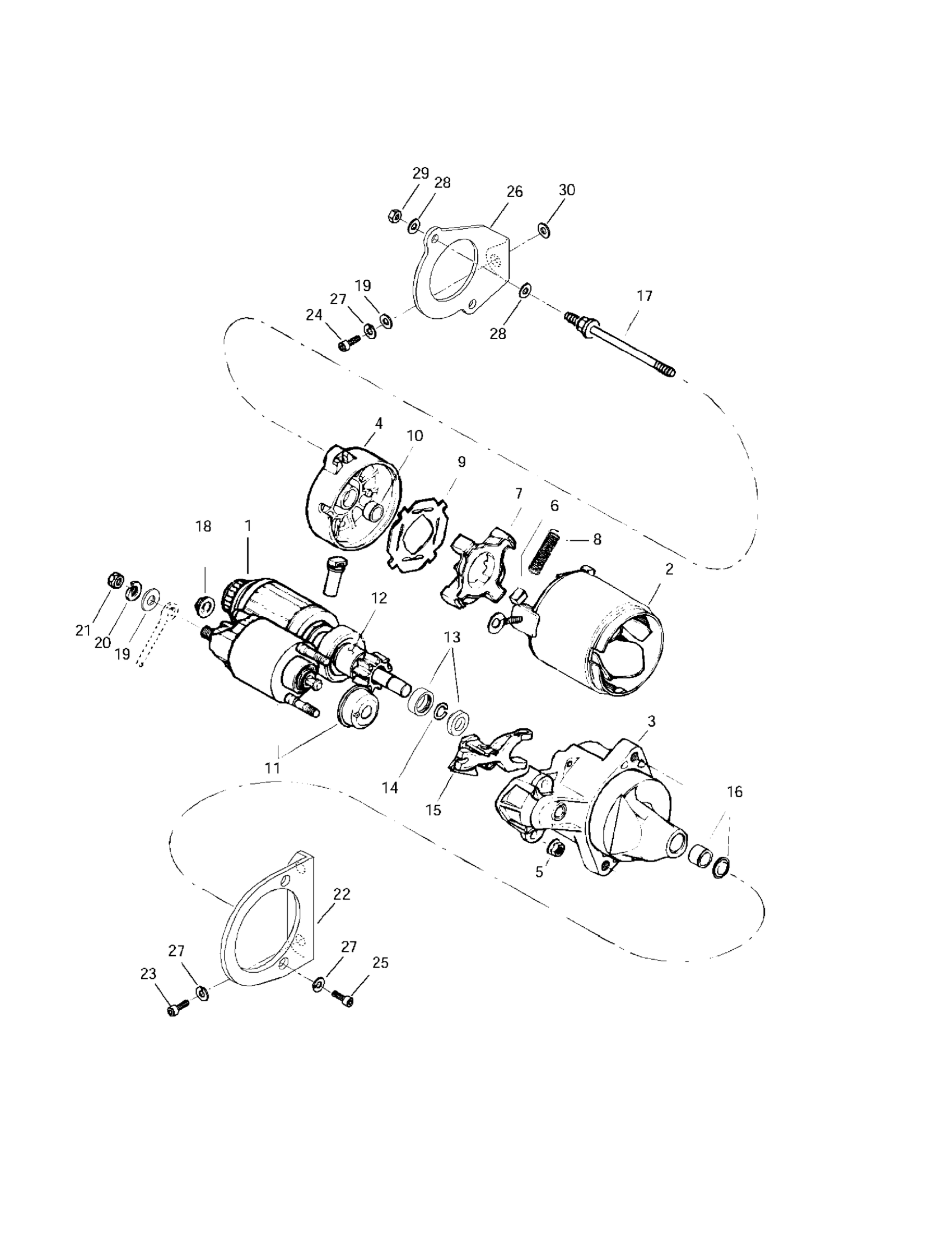

Ski-Doo Grand Touring SE, 1997 04- Electric Starter Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

$299.99

1

Armature Assy.

410210200

Unavailable

2

HOUSING STARTER - Call your local BRP dealership

410209500

Unavailable

3

Housing

410210800

Unavailable

4

Housing

410210000

Unavailable

5

NUT - Call your local BRP dealership

410211200

Unavailable

6

BRUSH - Call your local BRP dealership

410209600

Unavailable

7

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

8

BRUSH SPRING - Call your local BRP dealership

410209800

Unavailable

9

INSULATOR - Call your local BRP dealership

410209900

Unavailable

10

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

11

SWITCH ASSY. - Call your local BRP dealership

410210300

Unavailable

12

STARTER CLUTCH - Call your local BRP dealership

410210400

Unavailable

13

NUT - Call your local BRP dealership

410212500

Unavailable

14

CIRCLIP - Call your local BRP dealership

410212600

Unavailable

15

LEVER - Call your local BRP dealership

410210700

Unavailable

16

BRASS BUSHING - Call your local BRP dealership

410210900

Unavailable

17

BOLT - Call your local BRP dealership

410212000

Unavailable

18

NUT - Call your local BRP dealership

410211100

Unavailable

19

Flat Washer 8 mm

234081410

$0.83

20

Washer-Lock Din.128

420945832

$1.15

21

Hex. Nut M8

232081414

$0.72

22

Starter Bracket (PTO)

512053800

Unavailable

23

Socket Head Screw M8 X 20

205082044

$1.15

24

Socket Head Screw M8 X 20

205082044

$1.15

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Starter Support (MAG)

512053700

Unavailable

27

Lock Washer 8 mm

234181401

$0.92

28

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

$1.04

30

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable
